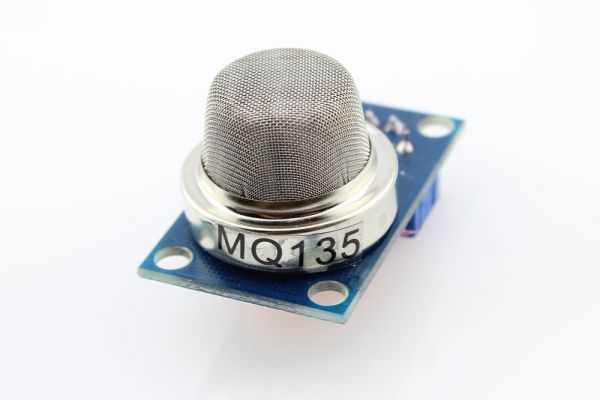

MQ135 Gas Sensor for Air Qaulity

was $3.80 Special Price $1.09
Availability: Out of stock
SKU
SEN17850M
Weight
22g
    Sensitive material of MQ135 gas sensor is SnO2, which with lower conductivity in clean air. When the target combustible gas exist, The sensors conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, Convert change of conductivity to correspond output signal of gas concentration. MQ135 gas sensor has high sensitity to Ammonia, Sulfide and Benze steam, also sensitive to smoke and other harmful gases. It is with low cost and suitable for different application.
    Used for family,Surrounding environment noxious gas detection device, Apply to ammonia, aromatics, sulfur, benzene vapor, and other harmful gases/smoke, gas detection, tested concentration range: 10 to 1000ppm

Specification

  • Working voltage:DC 5V
  • Working Current: 150mA
  • DOUT: TTL output
  • AOUT: Analog output
  • Preheat time: Over 20s
  • Dimension: 32mm x 22m x 27mm(HIGH 27mm)
