Mini: USB-C power supply for Eurorack

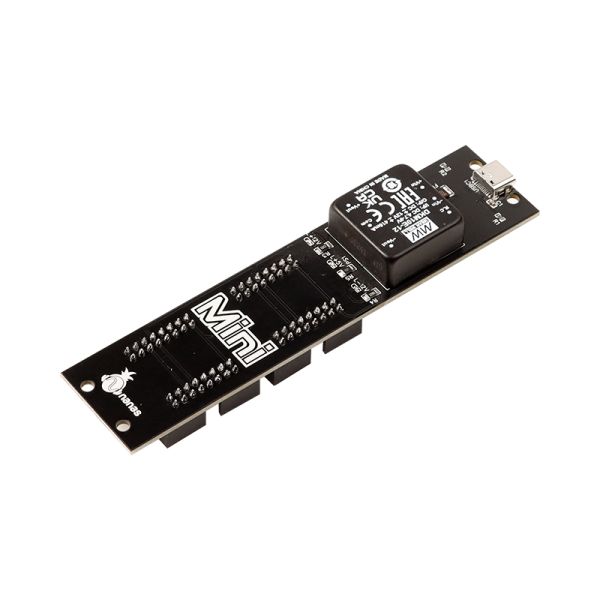

Mini is a USB type C powered power supply for Eurorack modular synthesizer. You can use any USB type C power source that has 15W power minimum, for example USB-C port from the laptop, USB-C phone charger, or USB-C power bank.

Feature:

• It takes 5V input from USB-C port and outputs dual supply +/- 12V and 5V.
• The main component that converts the voltage is Mean Well DKM10E-12.
• The output current according to DKM10E-12 datasheet is ±0 ~ 416mA for +/- 12V rail.
• The input voltage range is 4.7V ~ 9V.

What will you get in the package:

1x pre-assembled PCB

Application:

• Powering small Eurorack system. It can be attached to the rack rail. The dimensions are 3U height and 6HP width. Or, you can use it inside the case.
• Power source when designing and prototyping a Eurorack module.

Github link:

https://github.com/nanassound/eurorack-nanassound/tree/main/Mini
