Mini Hot Plate Preheater PCB Mini Welding Preheat Station with Built-in OLED Screen

Description

This constant temperature heating table is a mini and efficient heating tool. The controller is equipped with a 160*80 color LCD display, which can intuitively display the device status information; the RGB LED indicator clearly displays the heating temperature, making the heating process easy to control. It heats up quickly, it takes about 150 seconds to reach a high temperature of 350°C at a maximum power of 100W. It supports customization of the heating temperature range and heating time, and automatically turns on the constant temperature mode after reaching the set temperature. The built-in cooling fan not only improves the durability of the device but also ensures stability for long-term work.

The heating area of 50mm*50mm has a wider range of applications while retaining the pocket volume. Equipped with DC5525 and USB Type C dual jacks to meet different power supply requirements. It adopts a more flexible split design, a sturdy aluminum alloy shell, stainless steel heat sink and nano-ceramic coated brass heating plate to ensure uniform heating and provide stable preheating performance. This mini constant temperature heating table supports a wide heating temperature range of 100-350 ℃, which is suitable for various precision work, such as reflow BGA SMD PCB board, LED light strip repair, etc.

In addition, the innovative temperature control curve function can set different heating curve functions to achieve similar reflow soldering effects. User-friendly function design including preset temperature, tilting protection, power wake-up, auto sleep and firmware upgrade makes this heating table not only powerful but also easy to use, making it an ideal choice for professionals and enthusiasts.

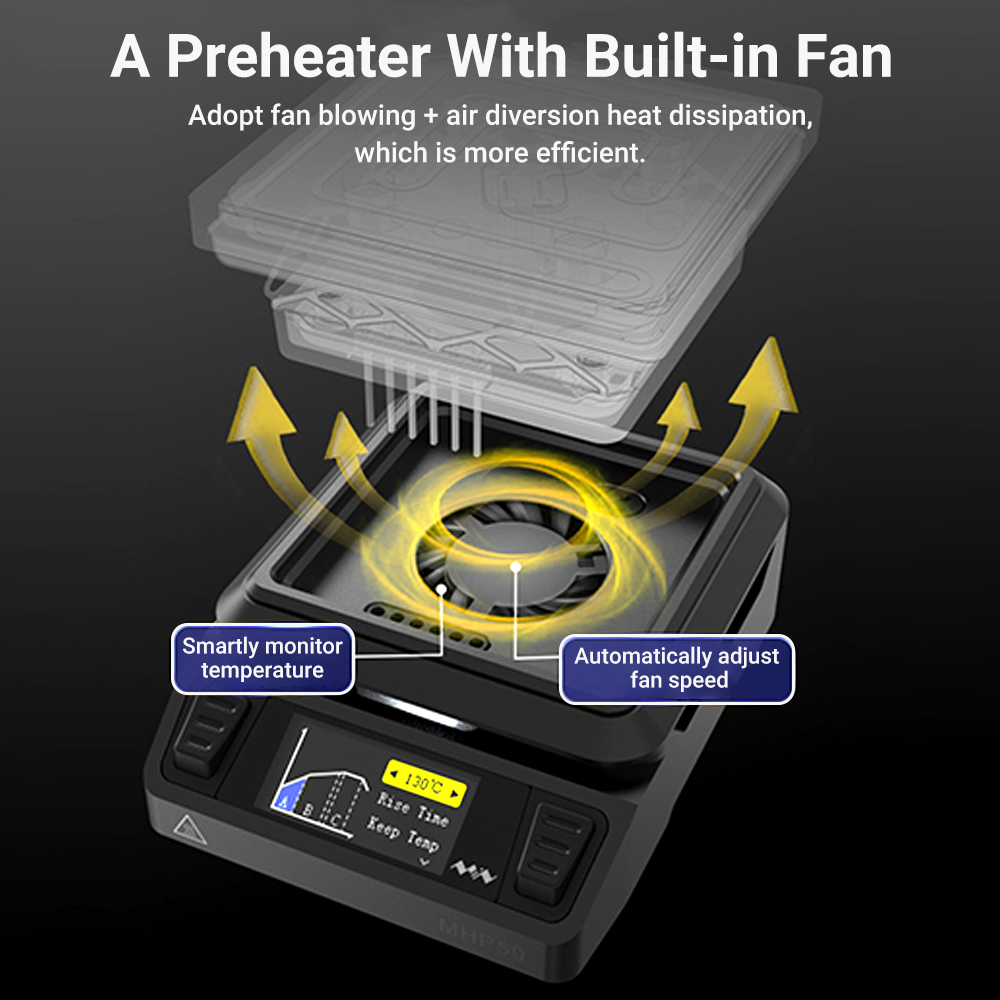

* With Built-in Fan

Adopt fan blowing + air diversion heat dissipation, which is more efficient.

* Tilting Stops Heating To Ensure Safety

When the device detects an obvious tilt angle, the controller will stop heating immediately.

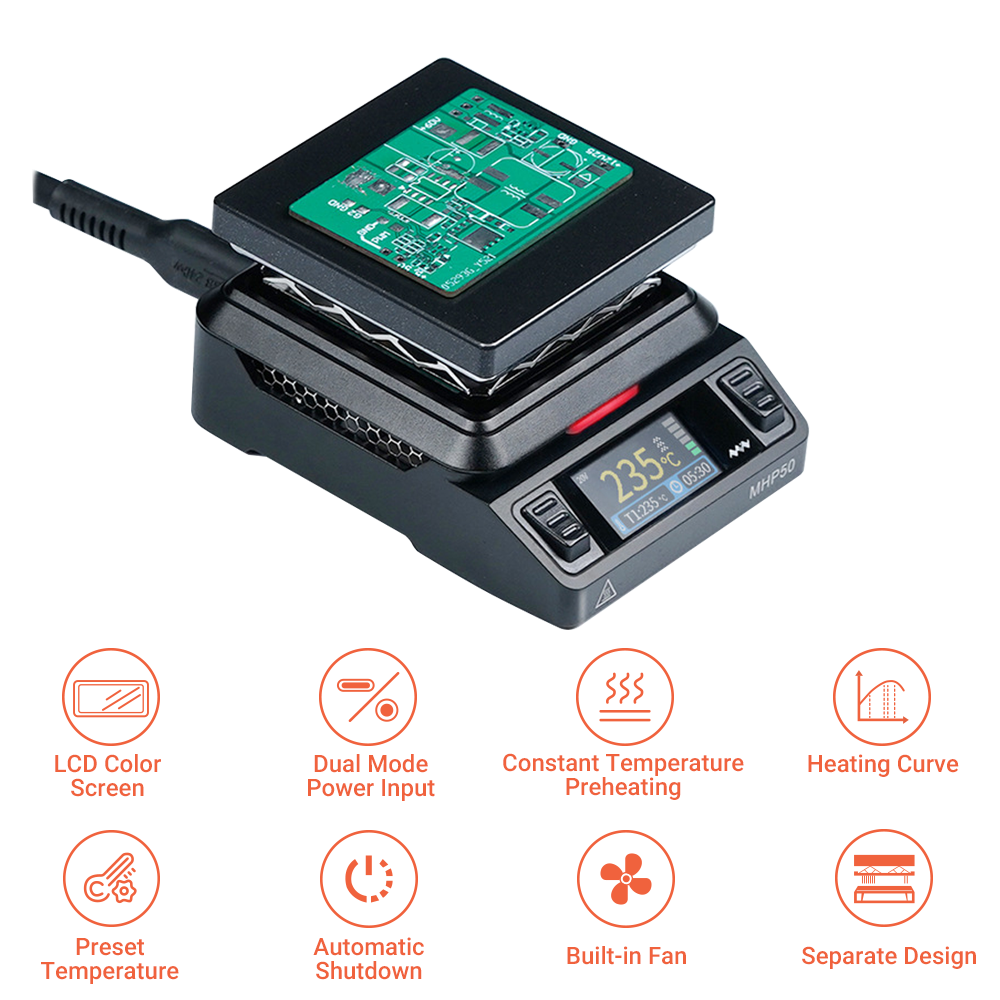

Feature

• Fast heating speed, reaching 350 ℃ in about 150 seconds;
• 50mm*50mm heating area, nano-ceramic coating, ensures uniform heating;
• Built-in cooling fan to ensure heat dissipation;
• 160*80 color LED display, which can intuitively display the heating temperature;
• LED indicator light shows heating temperature;
• DC5525 and USB Type C dual jacks to meet different charging methods;
• Multiple user-friendly functions, including preset temperature, tilting protection, power wake-up, automatic sleep, firmware upgrade, easy to use.

Specification

Note: DC and PD interfaces can not be used at the same time!

Package List

• 1x Control Terminal
• 1x Heating Element
• 1x PD Power Cable(20V 5A)
• 1x Silicone Protective Cover
• 1x User Manual
