Micro: bit Gamer Shield with Joystick and Buttons

Micro: bit Gamer Shield with Joystick and Buttons

Micro:bit V2/V1.3B/V2.2

$19.50
Availability: Out of stock
SKU
MIB09871B
Weight
15g

Description

Micro:bit v2 is a pocket-sized microcontroller designed for kids and beginners learning how to program, letting them easily bring ideas into DIY digital games, interactive projects, and robotics. You can use your BBC micro:bit for all sorts of cool creations, from robots to musical instruments. The possibilities are endless.

You can code, customize, and control micro:bit to bring your digital ideas, games, and apps to life. Measuring 4cm by 5cm, and designed to be fun and easy to use, users can create anything using micro:bit, from games and animations to scrolling stories at school, at home, and on the go. All you need is imagination and creativity.

micro:bit v2 has a lot of features and is completely programmable. Each of its LEDs can be individually programmed. It is also equipped with a MEMS microphone, speaker, and touch-sensitive logo. If you want to realize wireless projects, it is equipped with a 2.4GHz micro:bit radio and BLE Bluetooth-compatible 5.0. Also, It has 25 red LEDs that can flash messages and two programmable buttons that can be used to control games or pause and skip songs on a playlist. micro:bit v2 can also detect motion and tell you in which direction you’re heading in with the help of the onboard accelerometer.



Feature

  • Pocket-sized microcontroller (4 x 5cm) designed for kids and beginners
  • Wireless connectivity with built-in 2.4GHz micro:bit radio and BLE 5.0
  • 25 red LEDs that can be used for interactions
  • Onboard MEMS microphone, speaker, and touch-sensitive logo
  • Onboard accelerometer for motion sensing applications
  • Notched edge connector for easier connections
  • Dedicated I2C bus for peripherals
  • Two programmable buttons



Specification

  • Processor: Nordic Semiconductor nRF52833
  • Memory: 512KB Flash, 128KB RAM
  • Interface: NXP KL27Z, 32KB RAM
  • Microphone: MEMS microphone and LED indicator
  • Speaker: On-board speaker
  • Logo touch: Touch-sensitive logo
  • Edge Connector: 25 pins. 4 dedicated GPIO, PWM, I2C, SPI and ext.power. 3 ring pins for connecting crocodile clips/banana plugs. Notched for easier connection
  • I2C: Dedicated I2C bus for peripherals
  • Wireless: 2.4GHz micro:bit Radio/BLE Bluetooth-compatible 5.0
  • Power: 5V via micro-USB port, 3V via edge connector or battery pack, LED power indicator, Power off (push and hold the power button)
  • Current available: 200mA available for accessories
  • Motion Sensor: ST LSM 303
  • Software: C++, MakeCode, Python, Scratch
  • Size: 5cm(w) x 4cm(h)

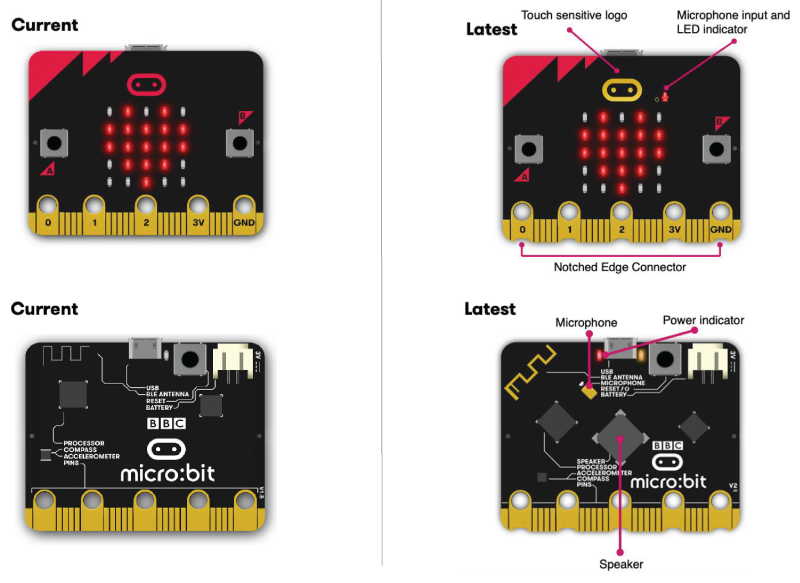

Comparison between the current version (v1.5) and the latest version (v2.0)

  Current Version (v1.5) Latest Version(v2)
Processor Nordic Semiconductor nRF51822 Nordic Semiconductor nRF52833
Memory 256KB Flash, 16KB RAM 512KB Flash, 128KB RAM
Interface NXP KL26Z, 16KB RAM NXP KL27Z, 32KB RAM
Microphone  None MEMS microphone and LED indicator
Speaker  None On-board speaker
Logo touch  None Touch-sensitive logo
Edge Connector 25 pins. 3 dedicated GPIO, PWM, I2C, SPI and ext.power. 3 ring pins for connecting crocodile clips/banana plugs 25 pins. 4 dedicated GPIO, PWM, I2C, SPI and ext.power. 3 ring pins for connecting crocodile clips/banana plugs. Notched for easier connection
I2C Shared I2C bus Dedicated I2C bus for peripherals
Wireless 2.4GHz micro:bit Radio/BLE Bluetooth-compatible 4.0 2.4GHz micro:bit Radio/BLE Bluetooth-compatible 5.0
Power 5V via micro-USB port, 3V via edge connector or battery pack 5V via micro-USB port, 3V via edge connector or battery pack, LED power indicator, Power off (push and hold power button
Current available 90mA available for accessories 200mA available for accessories
Motion Sensor ST LSM 303 ST LSM 303
Software C++, MakeCode, Python, Scratch C++, MakeCode, Python, Scratch
Size 5cm(w) x 4cm(h) 5cm(w) x 4cm(h)





Package List

  • micro:bit v2 x 1
  • User guide x 1
