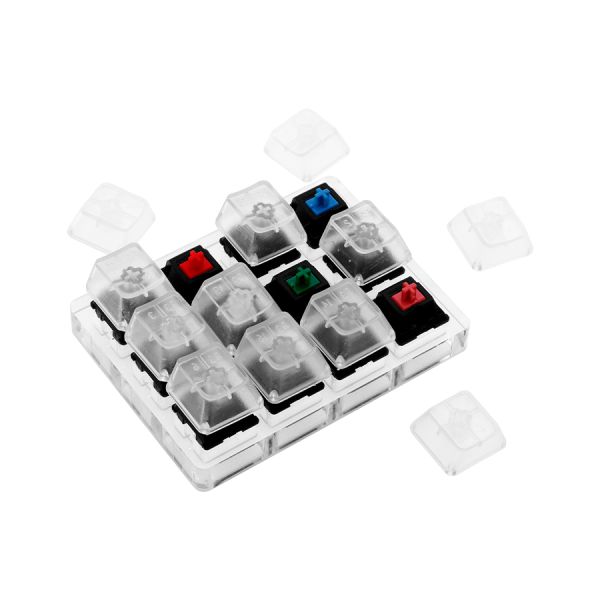

Mechanical Keyboard Switches Tester Collection

This kit is designed to achieve the actual feel of a real Cherry MX switch mechanical keyboard by mounting all the actual switches on a specially designed model! The TRANSPARENT ACRYLIC SWITCHES TESTER will help you decide which switch is best for you.

It is compatible with 99% of the mechanical key switches on the market and can be customized into a mechanical keyboard that is unique to your own habits. Each switch is produced by the golden cross-contact technology of the CHERRY factory in Auerbach, Germany, with sensitive reflection and quick response. And it has a high-precision precision switch. It can be knocked 50 million times and has a long life with a strong spring.

The MX keycaps come with a dust cover to protect the internal parts and keep your key switches away from dust. And the Switches Tester has a narrow light socket, suitable for installing 2-pin live monochromatic lights. Besides, it is compatible with the old 5-pin shaft, which can be directly replaced

Features

1. Accurate press feeling of 6/12 Cherry MX switches

2. Stable housing, precise cutting frame

3. Comfortable and smooth chauffeuring design on edge

4. Translucent clear keycaps

5. Sensitive reflection, quick response

6. Strong spring, super feel

7. Has a lifespan of about 50 million strokes

8. MX keycaps with dust cover

9. Detachable keys designed for DIY

Cherry MX Red: Soft Linear 45cN - Smooth, no tactile bump
Cherry MX Black: Firm Linear 60cN - Smooth, no tactile bump
Cherry MX Blue: Tactile & Clicky 50cN

Cherry MX Brown: Soft Tactile 45cN - Softer & lighter tactile bump, no click
Cherry MX Green: Firm tactile & Clicky 80cN
Cherry MX Gray (black): Tactile 80cN - Firm tactile bump, no click
Cherry MX Gray (brown): Firm Linear 60cN - Tactile bump, no click

Cherry MX Clear: Tactile 55cN - Tactile bump, no click
Cherry MX White: Tactile & Clicky 65cN - Tactile and lighter click switch
Silent Red: Soft Linear 45cN - Smooth & Silent
Silent Black: Firm Linear 60cN - Smooth & Silent
Speed Silver: Soft Linear 45cN - Smooth, no tactile bump, 3.4 mm total travel distance only

How to use

Notes: When inserting a new switch, please be sure to align the pin position, when it cannot be easily inserted, do not press it to prevent the pin from breaking

• a.Use the key puller to remove the key cap

• b.Use the switch puller to pull out the switch

• c.Correct the installation position of the new switch

(The switch puller is aligned with the card point)

• d.Align the new switch with the card position

• e.Press lightly to install the new switch to the detent

• f.Finally install the keycap to complete the switch change

Specification

• Material: acrylic housing

• Note: Switch tester only, not include keyboard

Package Includes

• 1* Acrylic Base

• 6/12* Translucent Clear Keycaps

• 6/12* Cherry MX Switches
