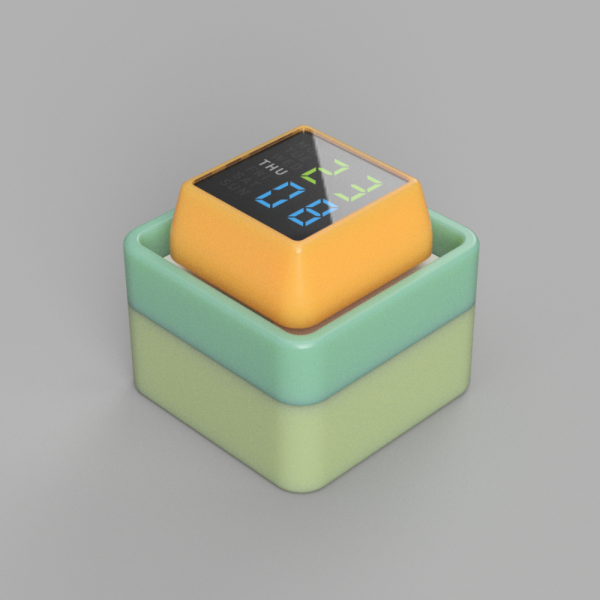

MagiClick - Opensource Multifunctional Macropad

Remark: Products will be shipped in random colors.

Description

MagiClick v2.3c offers a more compact design, functioning as a macro keyboard with an adjustable on-screen display to suit your needs.

In addition to its core functionality, it enables you to check the time, weather forecasts, play games, use a Pomodoro timer, and much more. Let your imagination run wild.

With its integrated speaker, it can play various audio files to achieve different effects.

Moreover, it can serve as a development board for learning programming languages, with comprehensive hardware and software resources available in this repository.

Programming languages supported include C, C++, Python, etc.; currently, CircuitPython is primarily used, making debugging very convenient.

The device comes with a 3.7V lithium battery charging circuit, allowing you to source and install suitable lithium batteries according to specific specifications locally.

Onboard 6-axis IMU

Mechanical switches are designed to be hot-swappable, so you can disassemble and replace them as needed.

The casing is produced via 3D printing using PLA eco-friendly filament. We do not offer color customization but instead dispatch products in a surprise color scheme, akin to a blind box.

This version, which started from 1.0, has undergone several rounds of prototype design and has been put to use by many people, undergoing numerous optimizations since then.

When bored, you can use a click counter to pass the time by tracking how many times you press a button.

Feature

• Wi-Fi + Bluetooth Low Energy System on Chip (SoC)

• Built-in ESP32-S3

• High Integration

• Hot-swappable mechanical switches

• 0.85-inch IPS color lcd, 128x128 resolution

• Supports C, C++, Python

• Compatible with external sensor modules

Specification

• Chip: ESP32-S3FN8, with integrated 8MB flash

• Dimensions: 40mm x 40mm x 36mm

• Connector: USB Type-C

• Circuit operating voltage: 3.3V@200mA

• Charging current: 200mA

• Input voltage (VIN): 5V

• Onboard 6-axis IMU

• Integrated Li-Po charging

• Built-in speaker,I2S Audio Codec

• Supports connection to external I2C modules

• Charge indicator light

• Colorful LED

• One reset button

• Three user buttons

• 0.85-inch IPS 128x128 pixel TFT color LCD

• Independent power switch

Application

• Macro Keyboard

• Weather Forecast

• Time Display

• Gaming Console

• IoT (Internet of Things) Device

• Development Board

• Pomodoro

• Counter

Package List

• 1x MagiClick

Wiki&External Link

GitHub Link：https://github.com/MakerM0/MagiClick-esp32s3

software: https://github.com/MakerM0/MagiClick-S3-Single

Hackaday：https://hackaday.io/project/195460

3D Printing：

• MakerWorld
• Makeronline
• packaging box
