I2C NavKey Black

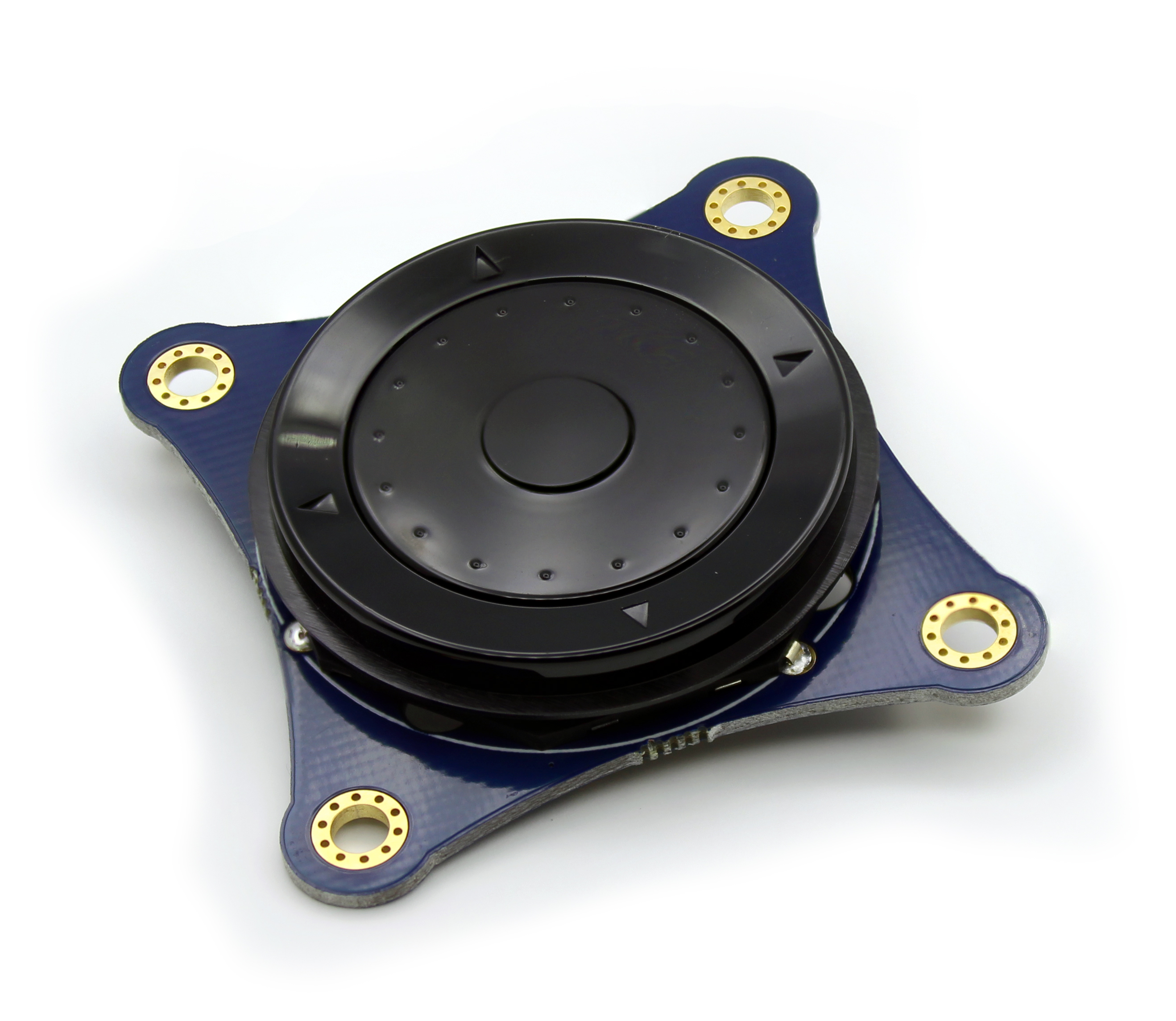

The I2CNavKey is a small board that includes a 7 functions joypad. The joypad has 4 directional keys plus a central button and a rotary ring. It is controllable with the I2C bus, and it’s possible to configure 16 different I2C addresses.
The I2CNavKey has also 3 configurable GPIOs with the same footprint of RGB LED. This 3 GPIOs can be configured independently in 4 different way: input, output, PWM and analog input.
Since the I2CNavKey is a I2C slave, it has a series of 8 bit registers where it’s possible to configure different parameters,it’s also possible to detect when the buttons are pressed or when the ring is rotated.
It also has an open-drain output pin used as interrupt output. This pin is used to notify to the master when some event happens in the I2CNavKey, the source of interrupt can be customized.
Last but not least, it has also 256 bytes of EEPROM.

Features

• I2C bus works up to 400kHz,
• Possibility to add the pull-up resistors on the I2C bus.
• Possibility to customize the I2C address by soldering the 4 SMD jumpers
• Open-drain Interrupt output pin, so no need to continuously poll the devices
• There is a 5 pin JST-PH header
• There are 3 General Purpose pins. (GP pins)
• 256 byte of internal EEPROM divided into 2 banks of 128 byte
• Voltage range is 2.5V to 5V
• Dimension of the device is 42.5×42.5mm or 1.67×1.67in
• 4 mounting holes with 3mm diameter
• Open source firmware

Pinout

Documentation:

• Project and Datasheet
• Arduino Library

Package include:

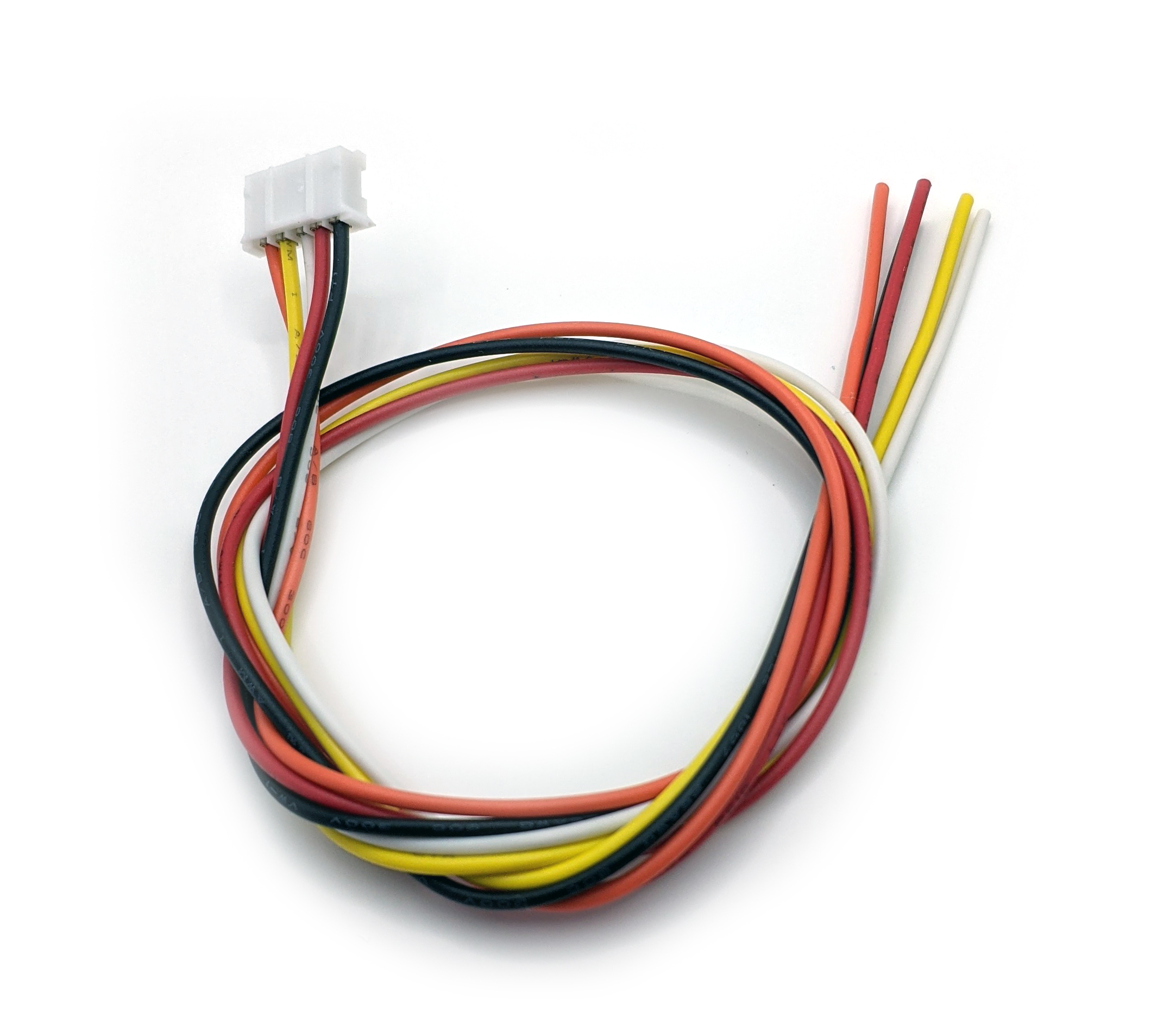

1 I2C NavKey Black (fully assembled, programmed and tested) + 30cm JST cable
