GPS + BeiDou Dual Modules

Description

This is a small quick positioning and navigation module based on the ATGM336H. It can provide real-time location information, and support various satellite navigation systems, such as Beidou/GPS/GLONASS. The positioning accuracy error is measured at about 2.5m.

In serial output mode, this is compatible with various mainboards equipped with serial output: Arduino-compatible board, Raspberry Pi, STM32, and so on. This module is suitable for vehicle navigation, device navigation, handheld positioning, and wearable, etc.

Feature

• Strong signal

• Support Beidou/GPS /GLONASS satellite system

• Support 3.3-5V power supply, convenient access to 3.3V or 5V single-chip system

• Come with SMA and IPEX antenna port

• Onboard rechargeable battery, speed up hot-start and search

• 2.5m positioning accuracy

• Baud rate: 9600 (can be set by software)

• Demension: 25mm x 25mm

• Antenna length: 10cm

Board Overview

• VCC: Power Input(3.3V-5V)

• GND: Ground

• TXD: Transmit

• RXD: Receive

• PPS: Pulse Output Per Second

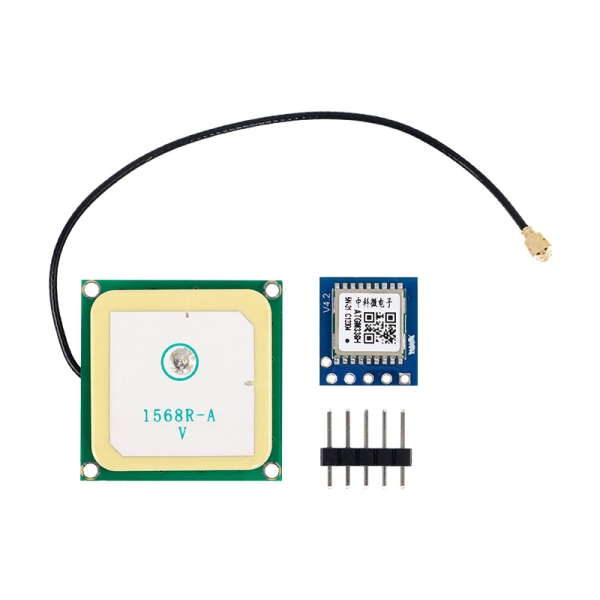

Package List

•  GPS + BDS BeiDou Dual Module x1

•  Connector x1

•  Pin x1
