FluidDial RJ12 Wiring Kit
$8.00
Availability:
In stock
SKU
CQA231222WK9
Weight
47g
Overview
The FluidDial is great CNC pendant for FluidNC, but wiring and connecting it to a controller can be a little tricky. One mistake can break expensive equipment.
This a is a simple PCB to make the wiring of a FluidDial CNC pendant much eaiser and less likely to mis-wire. It has an RJ12 socket for the cable from the CNC controller. It has (2) Grove connectors to attach to the M5Dial via Grove cables. It has a terminal block to wire the buttons and M5 Dial power
What is included

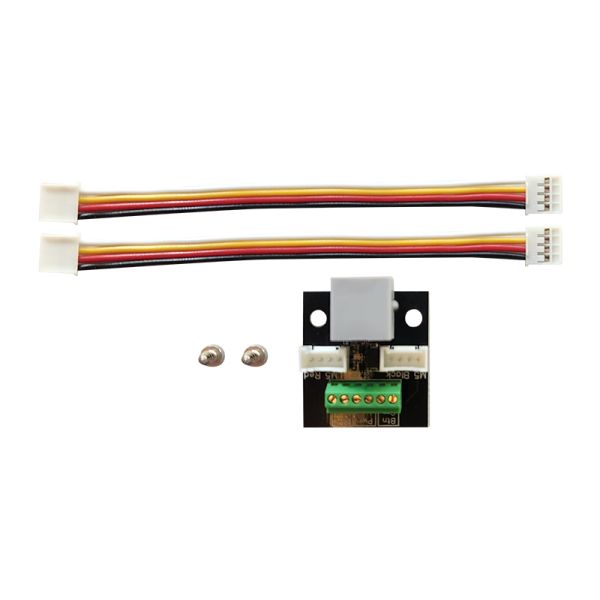

- PCB assembly
- (2) 10cm cables to wiring the M5 Dial to the PCB
- Screws for attaching the PCB
Related items
- RJ12 Module for 6 Pack and 6x controllers.
Documentation
- See this wiki page for help with assembly and usage.
- Here is a link to the design files.
