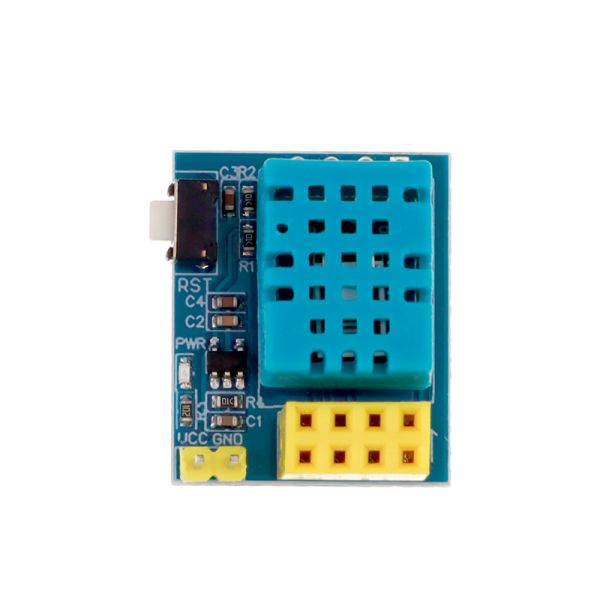

ESP8266 ESP-01/ESP-01S DHT11 Temperature Humidity WiFi NodeMCU Module for Arduino

$1.90
Availability: In stock
SKU
ESP82003S
Weight
15g
This module uses ESP8266-01/ ESP-01S as main controller, and the temperature humidity sensor is DHT11. ESP8266 collects the environment temperature and humidity then upload to the server.
This module can be used as a temperature and humidity acquisition for smart home or IOT project.

Features

  • Master: ESP-01/ ESP-01S
  • Temperature and humidity sensor: DHT11

Specifications

  • Working voltage: DC 3.7V-12V (it can be powered by 3.7v lithium battery)
  • Measuring range: 10-90% RH 0-50℃
  • Measuring accuracy: Temperature: ±2℃ Humidity: ±5% RH

Application Examples

  • 1. Power supply: 3.7V-12V DC power supply connected to VCC GND (2.54mm pin)
  • 2. Download the program to ESP-01S
  • 3. Insert ESP-01/ ESP-01S into the 2 * 4 Pin (in the direction of the arrow), show as below:
application example of temperature humidity sensor module
  • 4. Temperature and humidity sent to another WiFi module, the serial display: show as below:
temperature humidity sensor module
temperature humidity sensor module

Package list

  • ESP8266 esp-01/ ESP-01S DHT11 Temperature Humidity Module x 1
