Description

WT32-SC01 is a development board with a visual touch screen. The board is equipped with self-developed GUI platform firmware and supports graphical drag-and-drop programming to help users complete the development of custom control platforms. (https://8ms.xyz)

The main control of the WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth-compatible, 4MB SPI Flash and 8MB PSRAM. 3.5-inch 320x480 capacitive multi-touch screen for easy touch interaction. By using the expansion interfaces on both sides of the development board, developers can customize the use of key operation, voice control, camera operation and other functions, which greatly shortens the user's development cycle.

Interface Definition Diagram

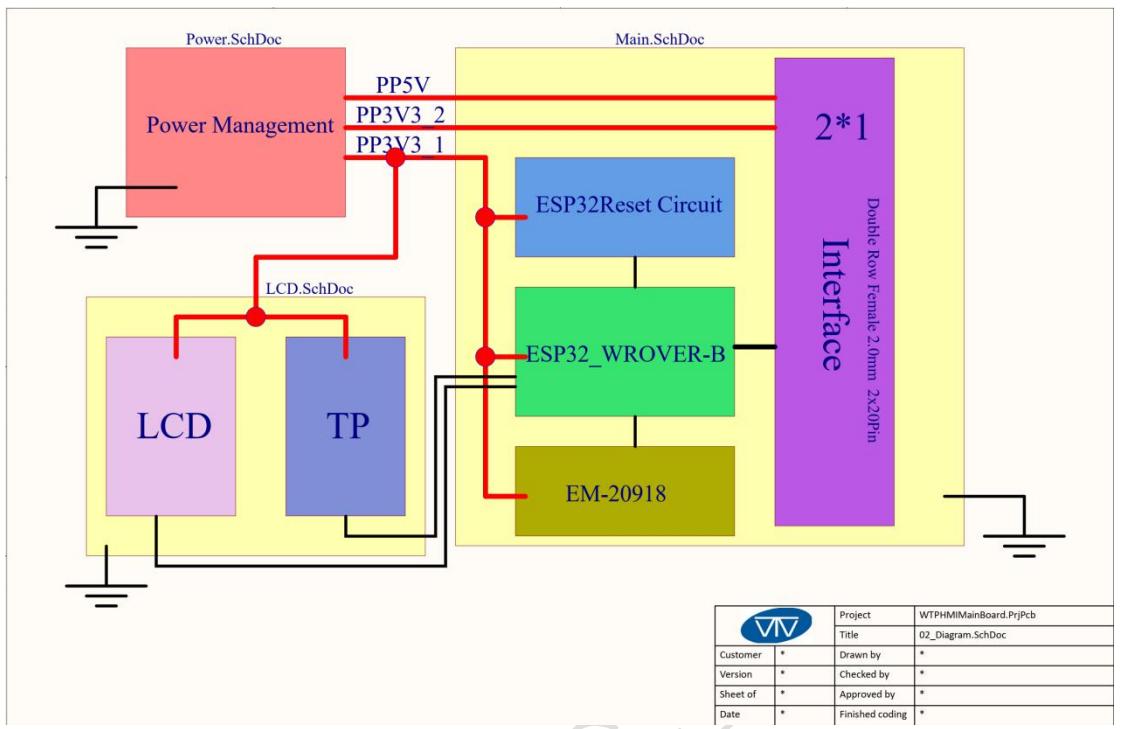

Circuit schematic

Hardware Overview

Feature

Low power consumption and high integration ESP32-WROVER-B module
3.5-inch 2-point multi-touch screen 320x480 capacitive LCM display for easy interaction
Easy to program with the graphical drag-and-drop programming(https://8ms.xyz)
Support Wi-Fi and BLE wireless connection
Customize button operation, voice control, camera operation and other functions through the extended interface

Specification

SoC: ESP32-WROVER-B module
CPU: Dual-core Xtensa@ 32-bit LX6 MCU
Connectivity: 802.11 b/g/n 2.4GHz Wi-Fi, Bluetooth-compatible v4.2 BR/EDR and Bluetooth-compatible LE standards
Display: 3.5 inch, LCD @320x480, Capacitive with 2-point multitouch
Power Supply: DC 5V/2A. 5V/1A
Operating Temperature: -20 to +85 °C
