ESP32-C6-EVB Board Support Tasmota 4 Relay 4 Input with WIFI6 Bl

Product Introduction

ESP32-C6 is Espressif’s first Wi-Fi 6 (IEEE 802.11ax) SoC integrating 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 low-rate wireless personal area network (LR-WPAN) protocol which is the basis for the Zigbee, ISA100.11a, WirelessHART, MiWi, 6LoWPAN, Thread and SNAP specifications.

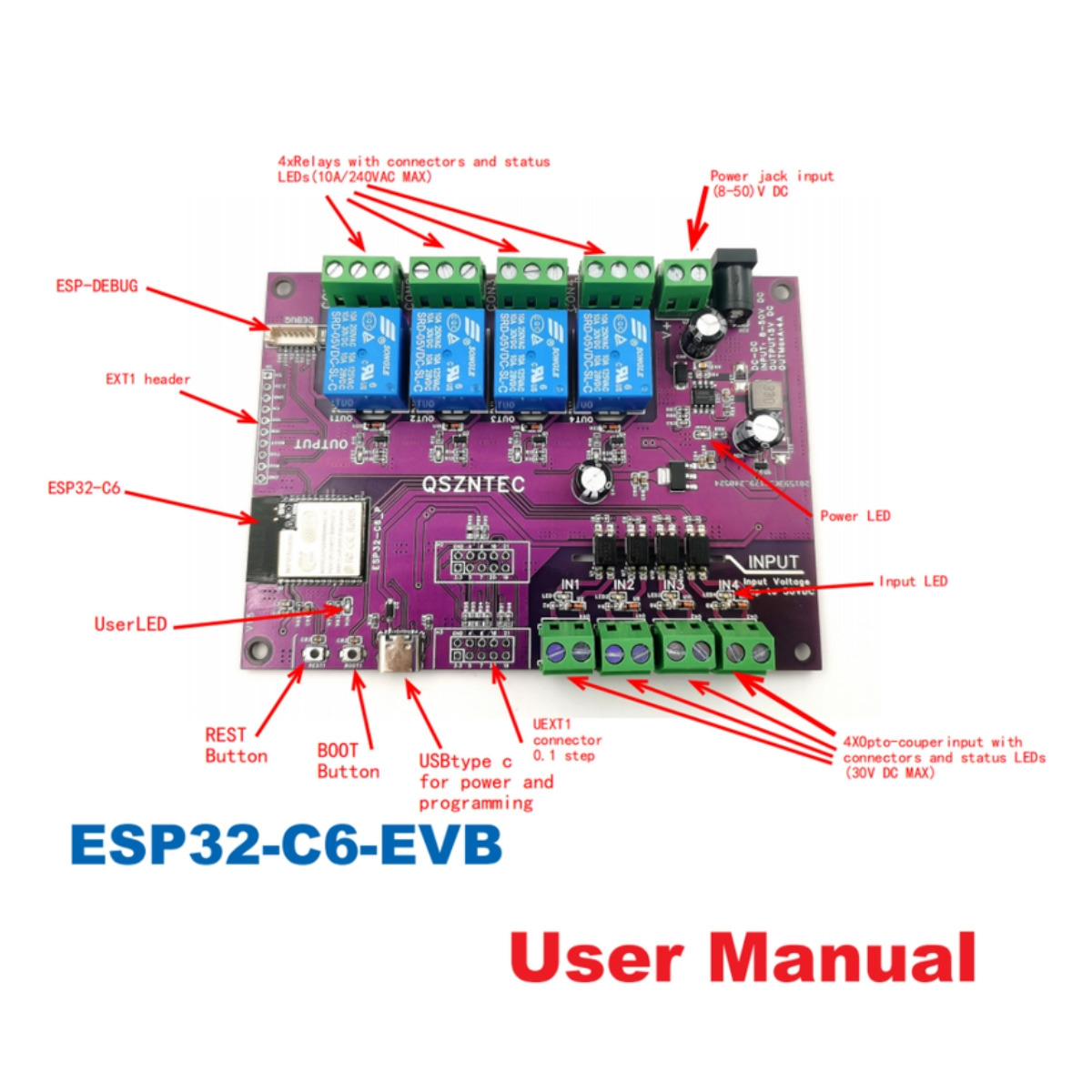

FEATURES

• ESP32-C6-WROOM-1-N4 module with 32-bit RISC-V single-core microprocessor, up to 160 MHz, Flash: 4MB, ROM: 320 KB, HP SRAM: 512 KB, LP SRAM: 16 KB

• USB-C connector for powering, programming, and JTAG debugging

• Power jack for optional external power (8-50)V DC

• Four Relays: 10A/240VAC

• Four opto-isolated inputs for DC voltage up to 30VDC

• Two UEXT connectors (0.1" step one and JST one)

• Extension GPIO connector

• Reset button

• User button

• Wide range of power supply: 8-50VDC

• Programming connector suitable for ESP-PROG

• Four mount holes

• Four rubber pads included

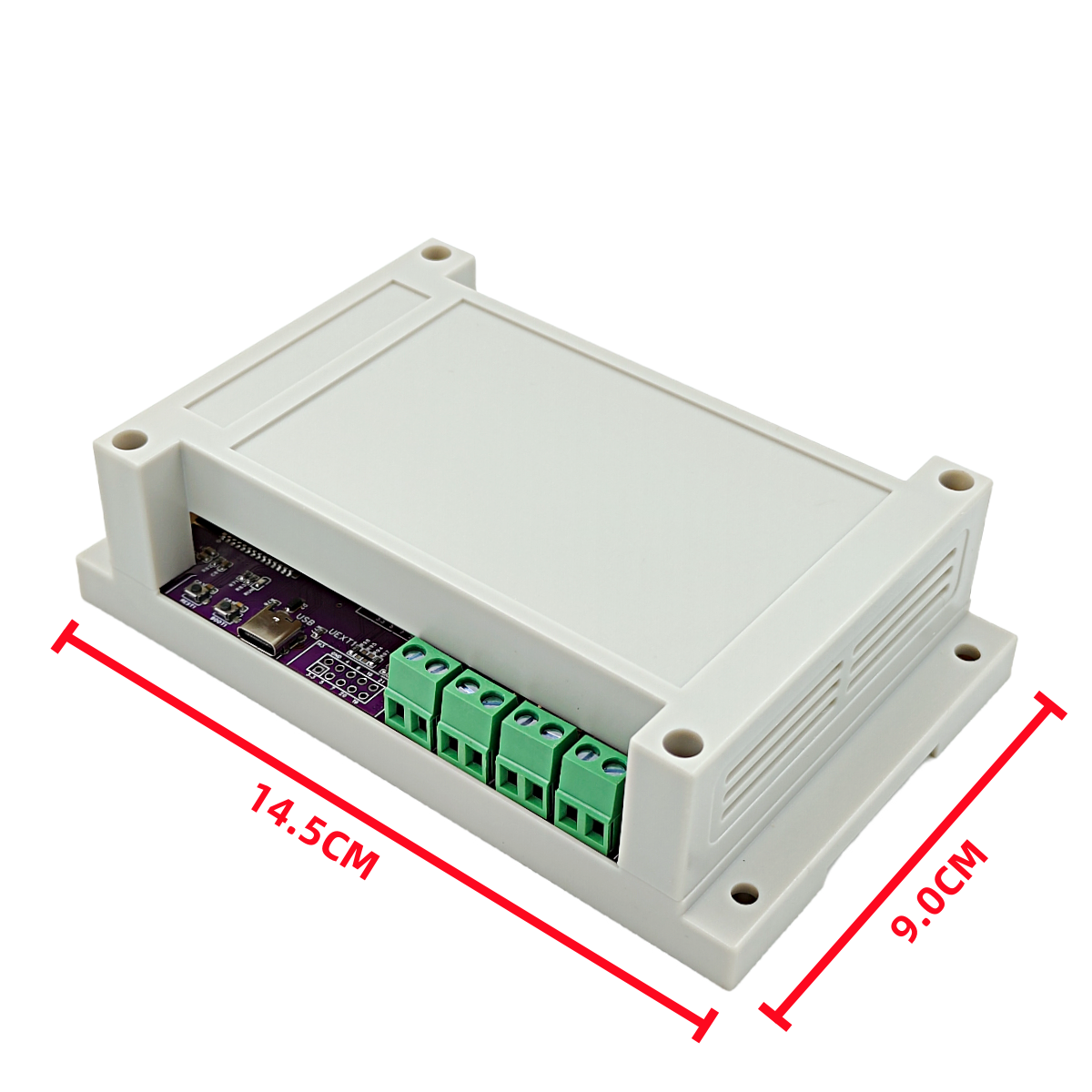

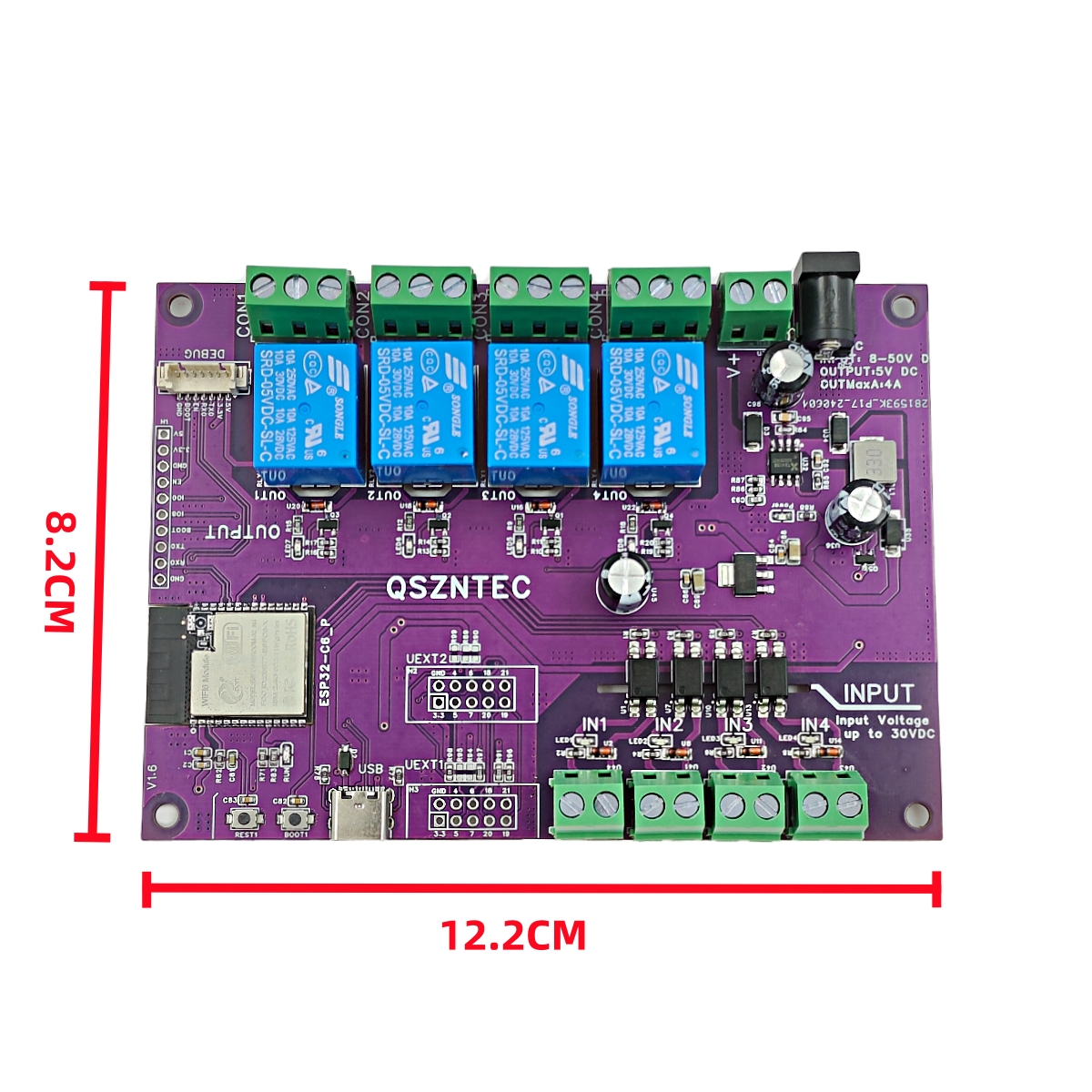

Product Size

Documentation

• https://wiki.icbbuy.com/doku.php?id=developmentboard:esp32-c6-evb

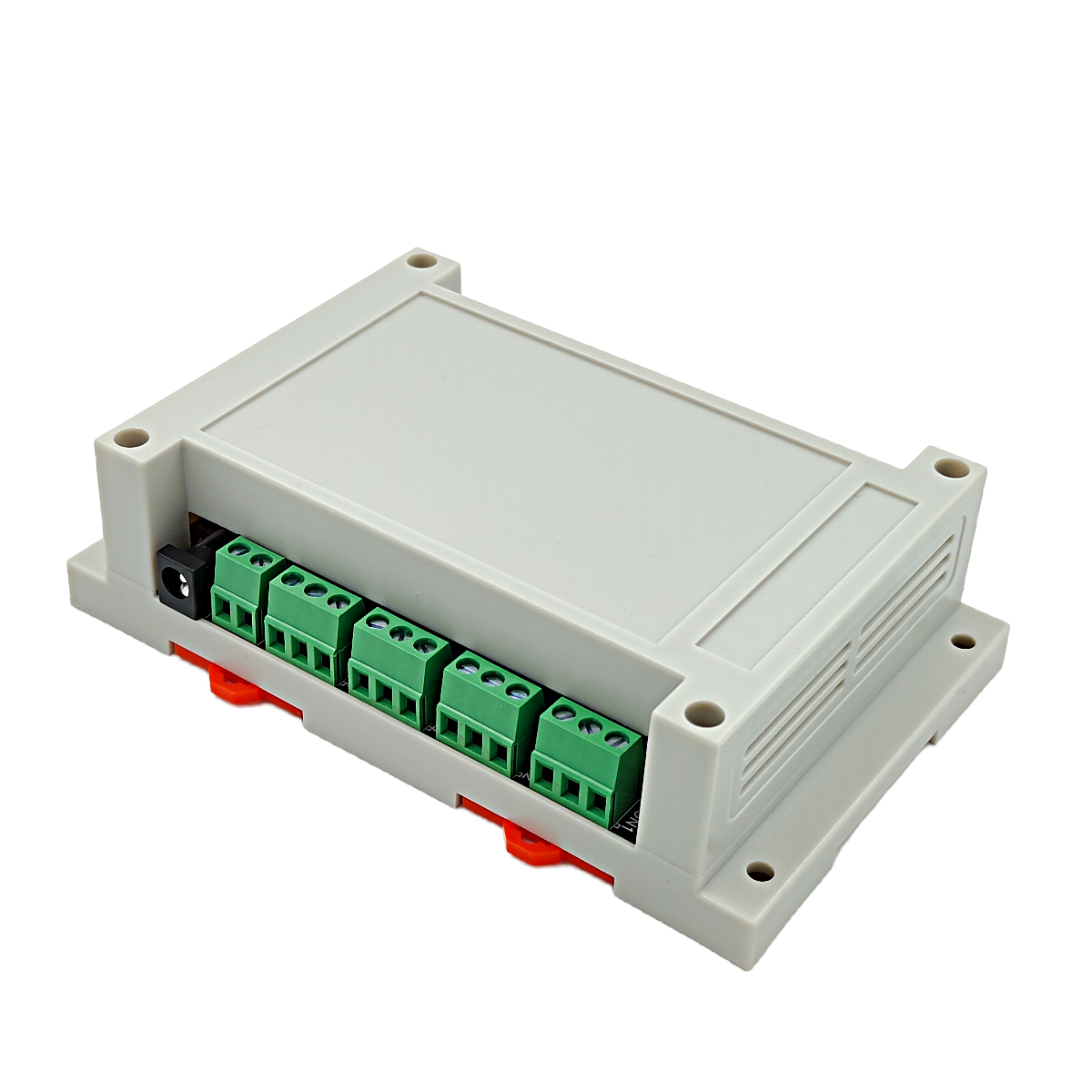

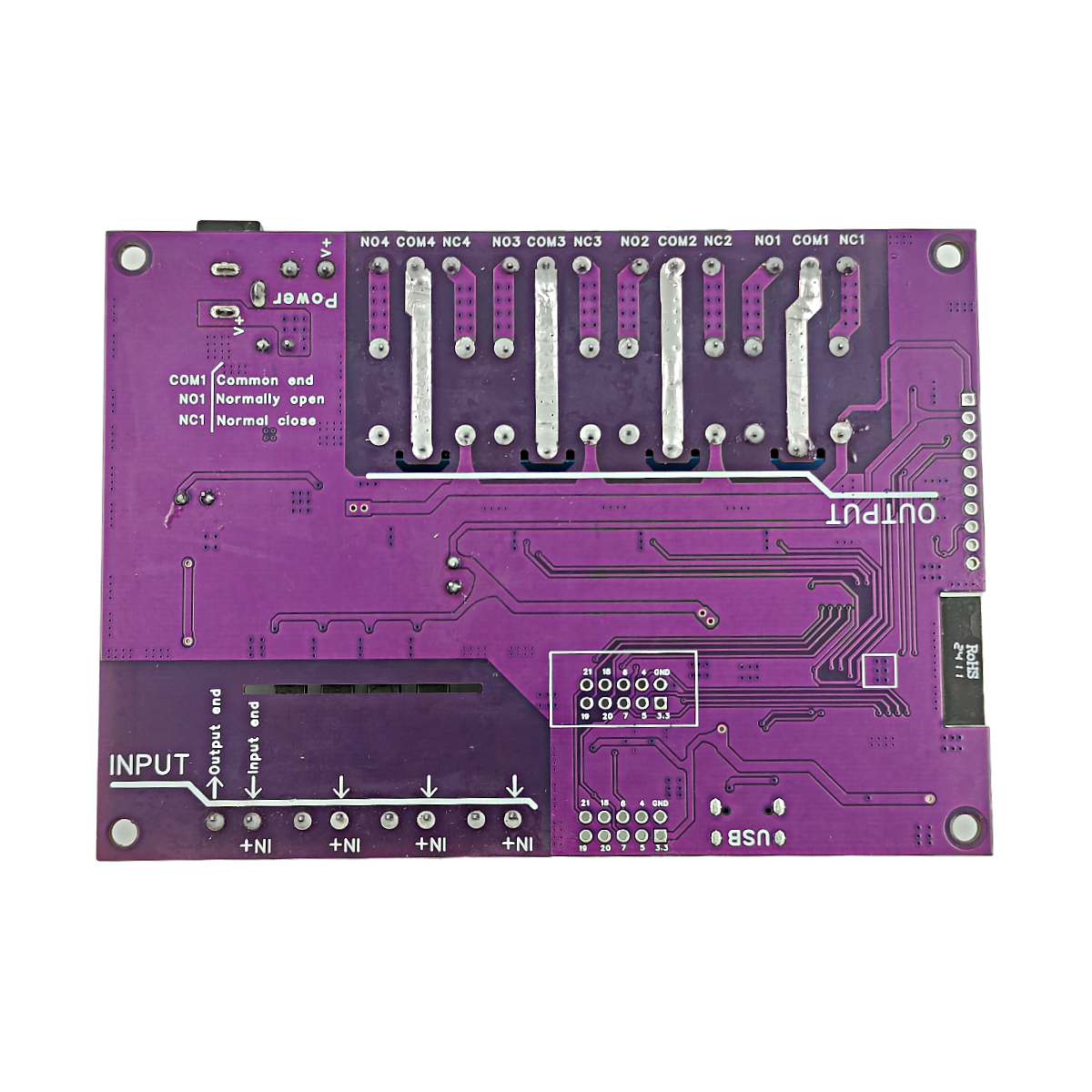

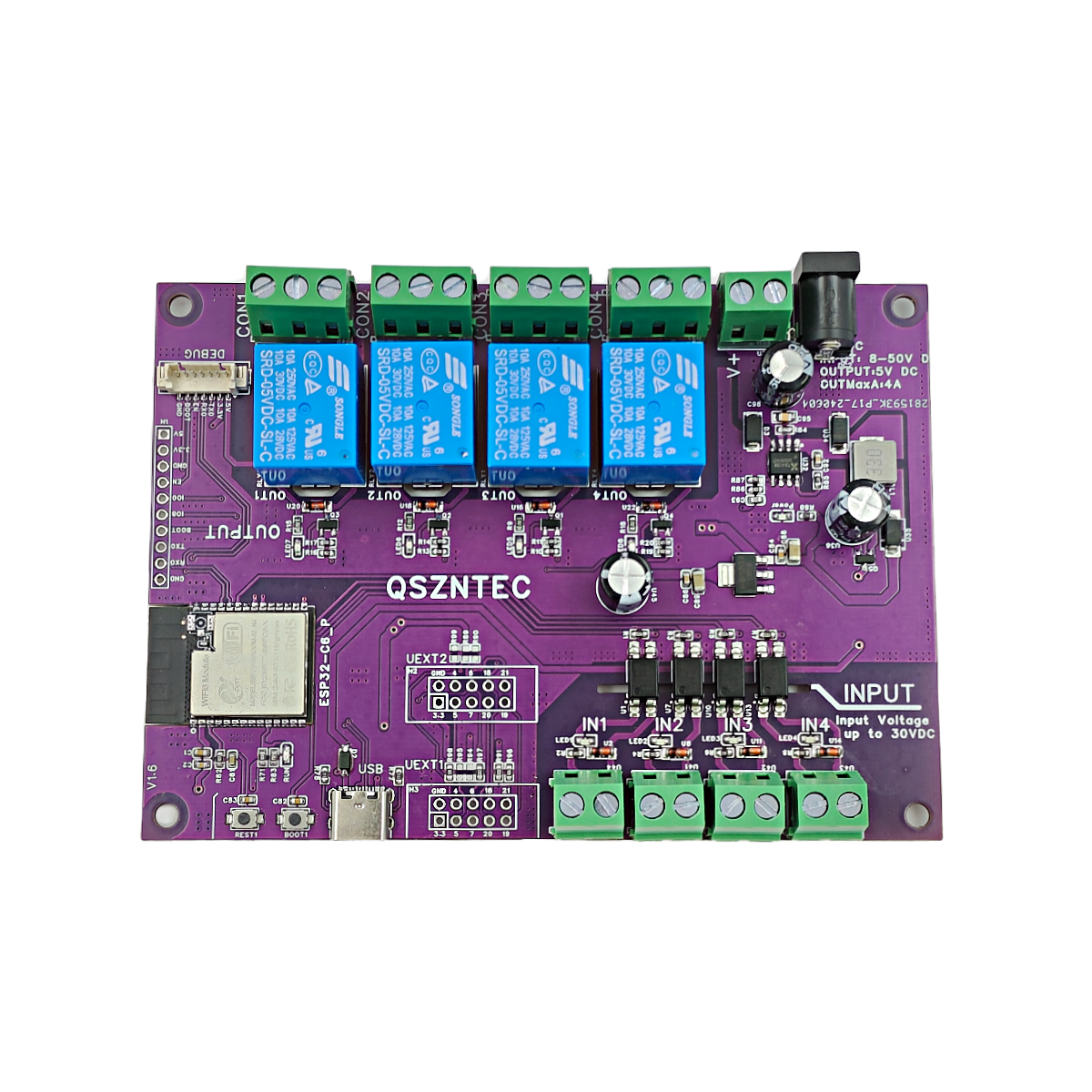

Product Display
