ESP32 Serial Port to Ethernet Module

ESP32 Serial Port to Ethernet Module WT32-ETH01 Development Board Module

ESP32-C3 Mini development board ESP32 development board with Wi-Fi and Bluetooth

Rating:
100 % of 100
$3.50
Availability: In stock
SKU
DES01655M
Brand
elecrow
Weight
8g

【ESP32-C3】Ultra-low power SoC with RISC-V 32-bit single-core processor, with a main frequency of up to 160MHz;

【Wireless support】Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5;

【Ultra-small size】2*26.1mm mini size, easy to integrate into the project;

【Rich interfaces】With 11 GPIO interfaces, 2 UART interfaces, etc., it is easy to develop and expand.

Description

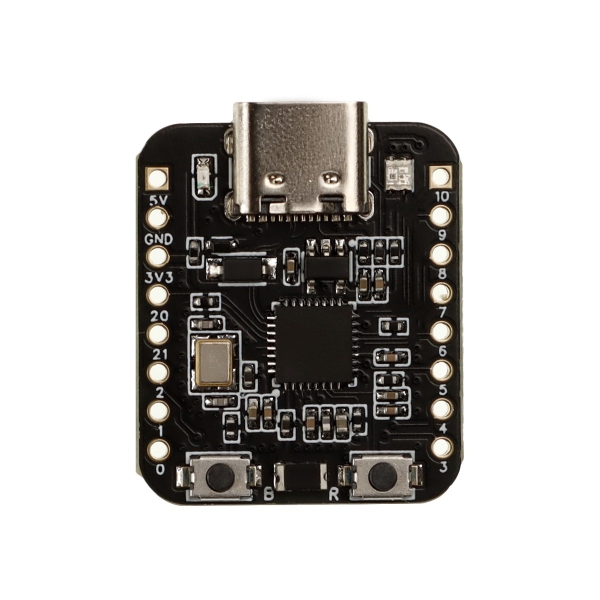

The ESP32 C3 Mini Development Board is a compact development board designed for the booming Internet of Things (IoT) application space. It is built on the ESP32 C3FN4/FH4 chip, an ultra-low-power system-on-chip (SoC) with a RISC-V 32-bit single-core processor. This powerful chip has a main frequency of up to 160MHz, coupled with 4M FLASH memory, ensuring strong performance in a variety of tasks.

This mini development board has wireless capabilities, supporting IEEE 802.11 b/g/n WiFi and Bluetooth 5, all seamlessly connected by an onboard antenna. Its interfaces are rich and versatile, with 11 digital I/Os that can be used for PWM signals and 5 analog I/Os that can double as ADC pins. It also includes 2 UART interfaces, providing ample communication and data exchange options.

The development board is equipped with a USB-C interface, which proves its ease of use and extensibility, allowing direct download and development. For added convenience, the board is equipped with reset and start buttons.

Despite its high performance, the ESP32 C3 Mini development board is very compact and only the size of a thumb, making it an ideal choice for space-constrained projects. This proves the high performance, low power consumption, and affordable price of the development board, which is perfect for various low-power IoT applications and wireless wearable devices.



Feature

  • Ultra-low power SoC with RISC-V 32-bit single-core processor, main frequency up to 160MHz
  • Built-in 4MB Flash and 400KB SRAM
  • Support 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5
  • Rich interfaces, with UART/IIC/GPIO and other interfaces, USB-C interface supports download
  • Ultra-small size, only 25.2*21.6mm



Applications

  • Smart Home
  • Industrial Automation
  • Health Care
  • Consumer Electronics
  • Smart Agriculture
  • POS Machines
  • Service Robot
  • Audio Devices
  • Generic Low-power loT Sensor Hubs
  • Generic Low-power loT Data Loggers



Block Diagram

block diagram of ESP32 C3 mini development board

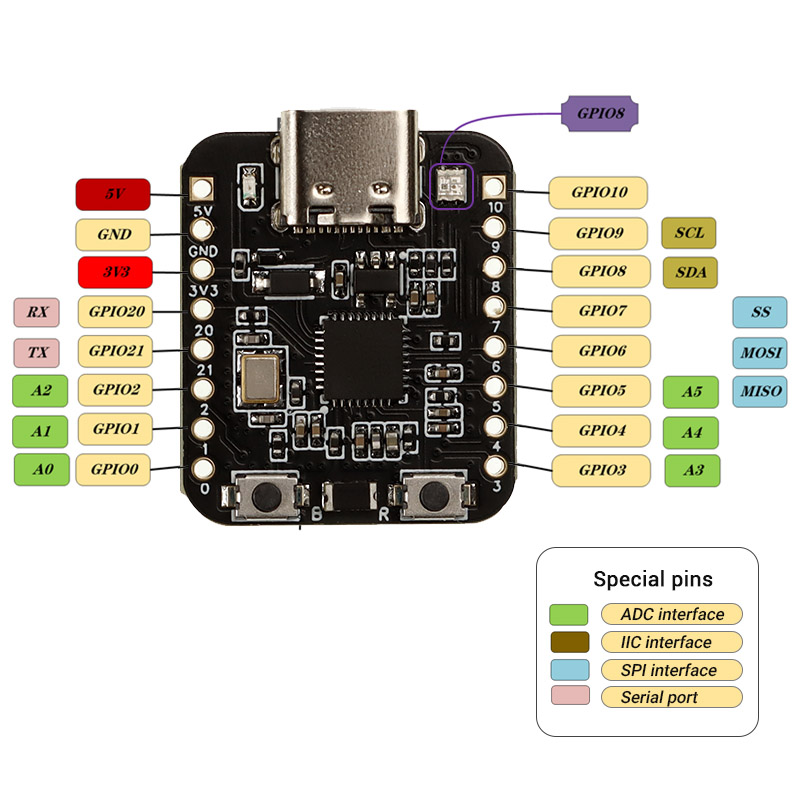

GPIO Definitionpin definitionof ESP32 C3 mini development board



Specification

Built-in Flash

4M

Clock frequency

160MHz

WiFi

Support 2.4G WiFi

Bluetooth

Support Bluetooth 5

Interface

UART/ADC/SPI/IIC

GPIO/PWM

11 GPIOs

Light-sleep Current

130uA

Deep-sleep Current

5uA

Power Off Current

1uA

Antenna

Small package ceramic antenna

Onboard RGB

1x WS2812 (GPIO8)

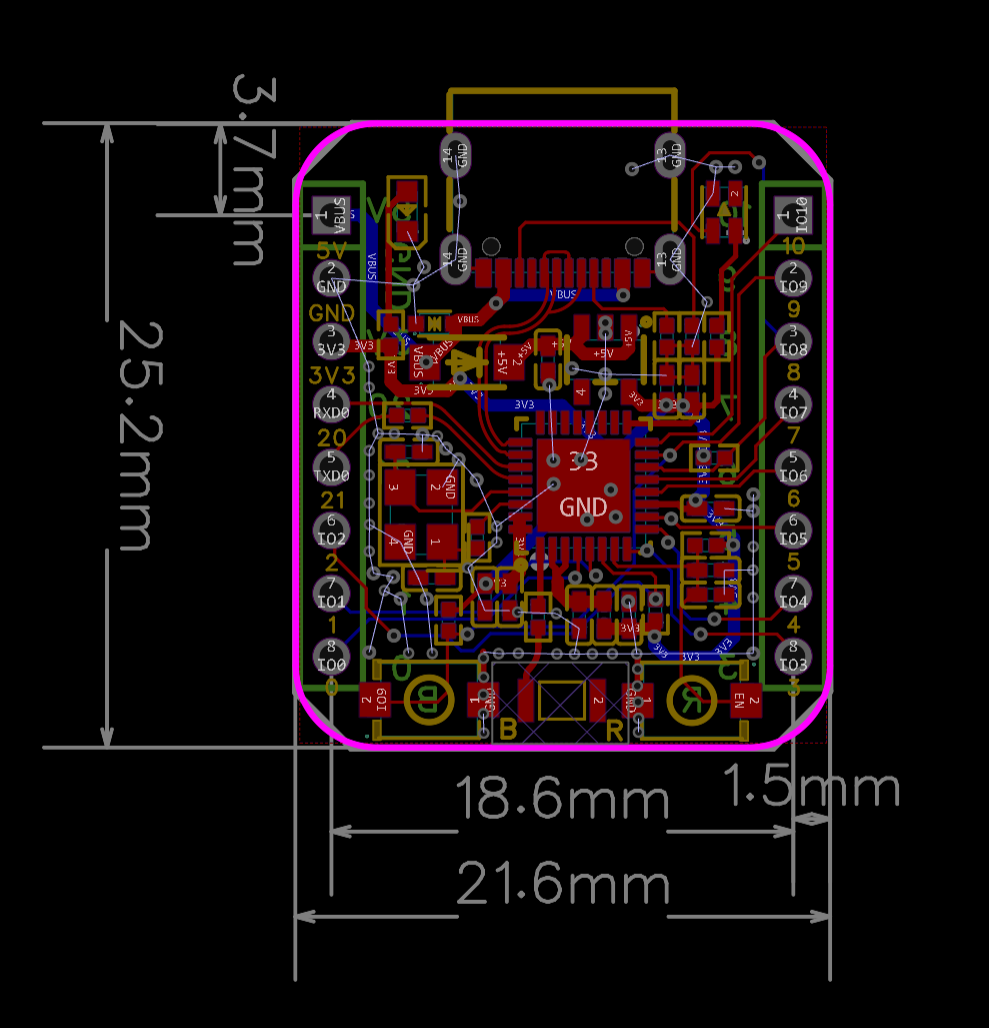

Size

25.2*21.6mm

Net Weight

5g



Package List

  • 1x ESP32 C3 Mini Development Board
