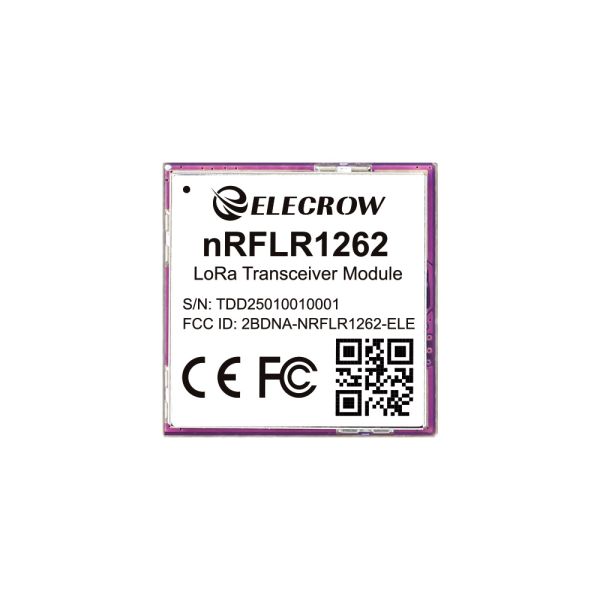

Elecrow nRFLR1262 Wireless Transceiver Module-Integrates Nordic nRF52840 and Semtech SX1262

Description

The Elecrow nRFLR1262 module integrates the Nordic nRF52840 microcontroller and the Semtech SX1262 LoRa transceiver chip. It is a high-performance, low-power and long-distance transceiver module. Its maximum transmit power is up to +20dBm, the transmission rate range is wide, from 0.018~62.5Kbps, and the transmission distance can reach up to 10KM.

This module not only supports Bluetooth 5.3 and low-power Bluetooth, but also complies with the A, B and C classes of the LoRaWAN 1.0.3 specification. It also supports LoRa point-to-point (P2P) communication mode, covering the 850~930MHz global LoRa&LoRaWAN ISM frequency, providing strong support for quickly building a custom LoRa network.

The built-in AT command firmware supports customized SDK development, and the rich peripheral interfaces provide great flexibility to meet diverse development needs. Designed to industrial standards, the nRFLR1262 is an ideal choice for developing low-power, long-distance IoT applications, suitable for various scenarios that require efficient communication and energy management.

Self-developed by Elecrow with exclusive design. Customization can be discussed for bulk orders.

Feature

High performance: Maximum transmit power can reach +20dBm, support 0.018~62.5kbps transmission rate, -125.5dB sensitivity @SF12/BW=125kHz, 170db link budget；
Ultra-low power consumption, sleep current is only 5uA;
Support 850~930MHz global LoRa&LoRaWAN ISM frequency, support LoRa point-to-point (P2P) communication; nRF52840 Bluetooth 5.3 SoC, support low-power Bluetooth, Bluetooth mesh network, NFC, Thread and Zigbee;
Built-in AT command firmware and support the use of SDK for customized product development, and the AT command set can be easily used through the UART interface;
Long-distance communication, the communication distance can reach 10km;
Rich peripherals, the module leads to a variety of GPIO interfaces such as UART, I2C, ADC, etc., providing great flexibility;
Compact form factor with only 20x 20x 3.5 mm
FCC, CE RoHS certification

Application scenarios

Smart city, smart agriculture, industrial automation, environmental monitoring, smart home, logistics management, medical health

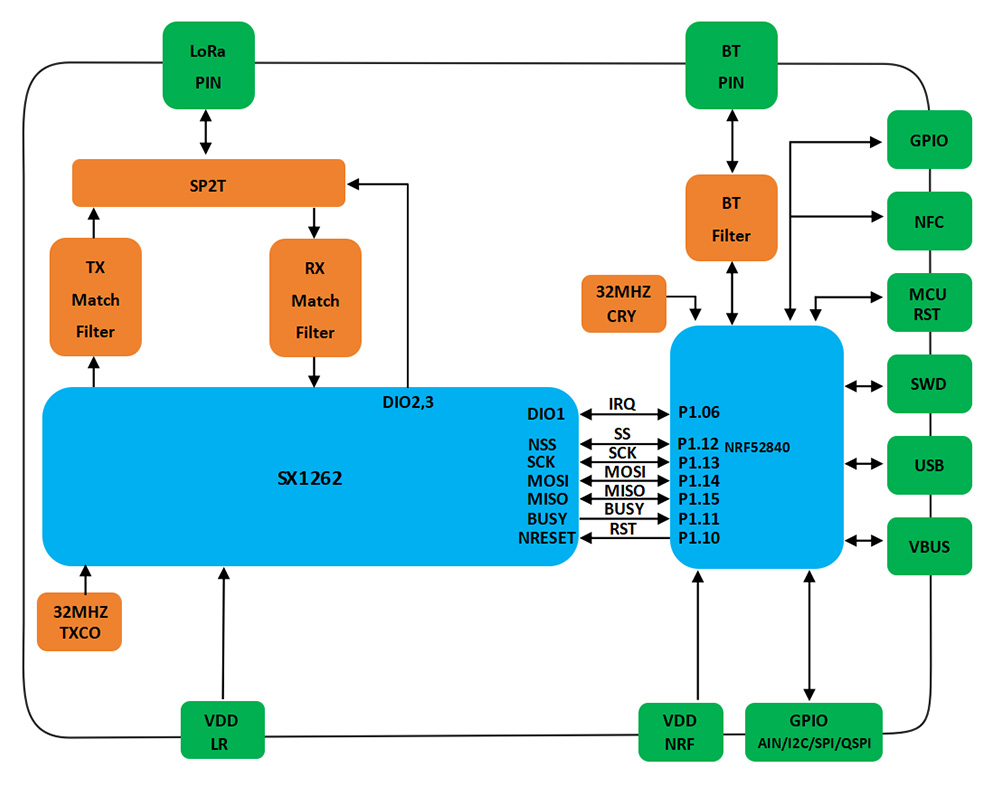

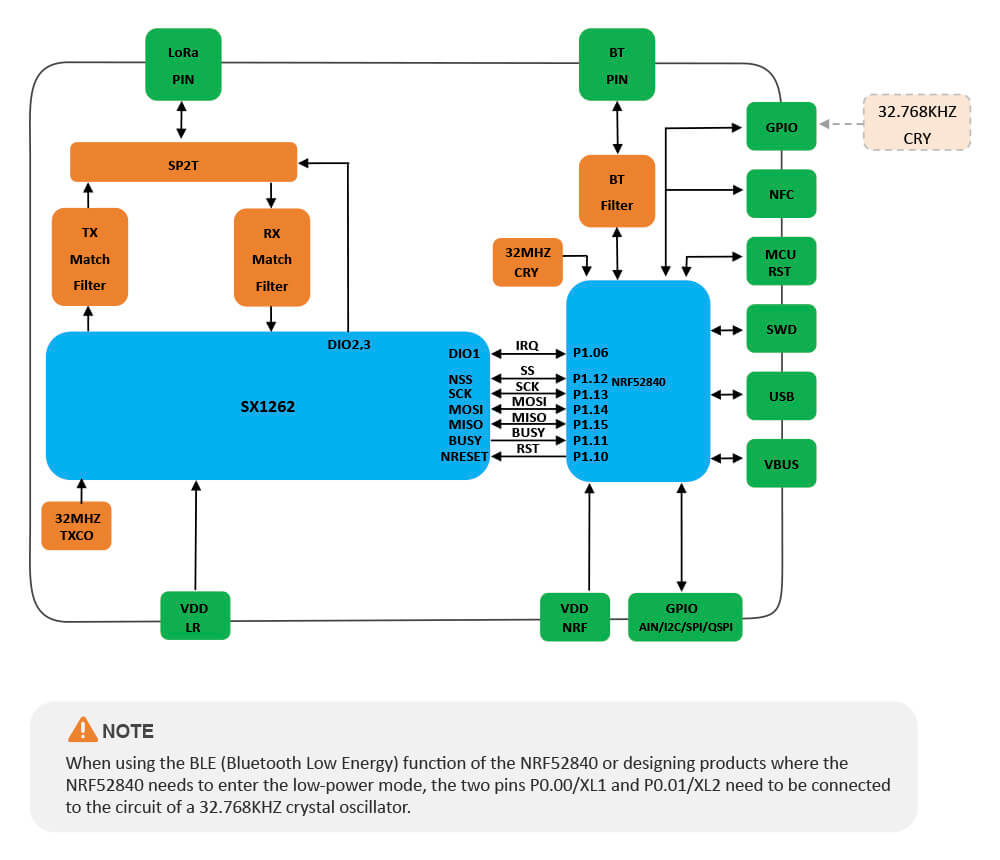

Pin Definition

pin definition of nRFLR1262 Module

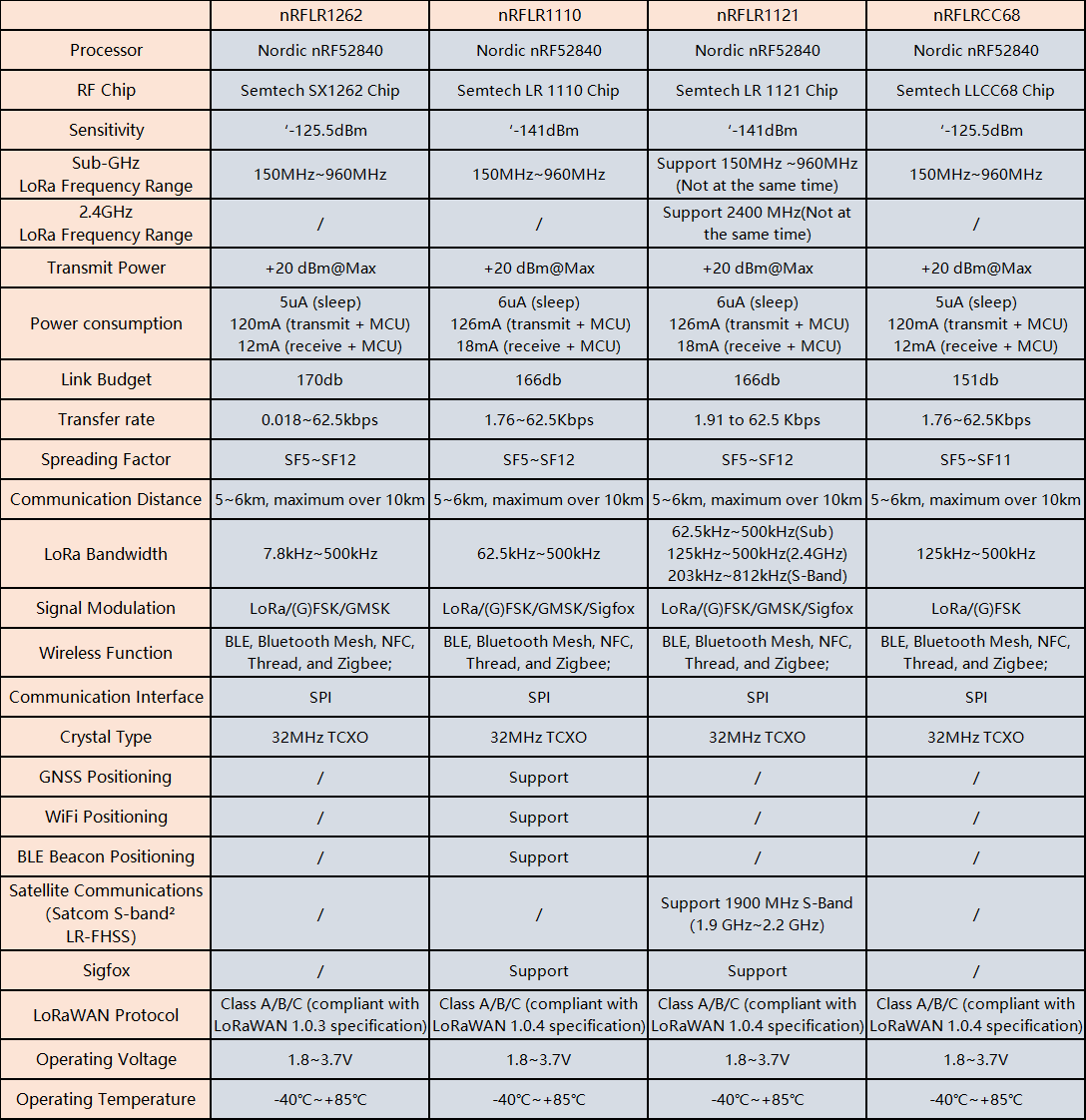

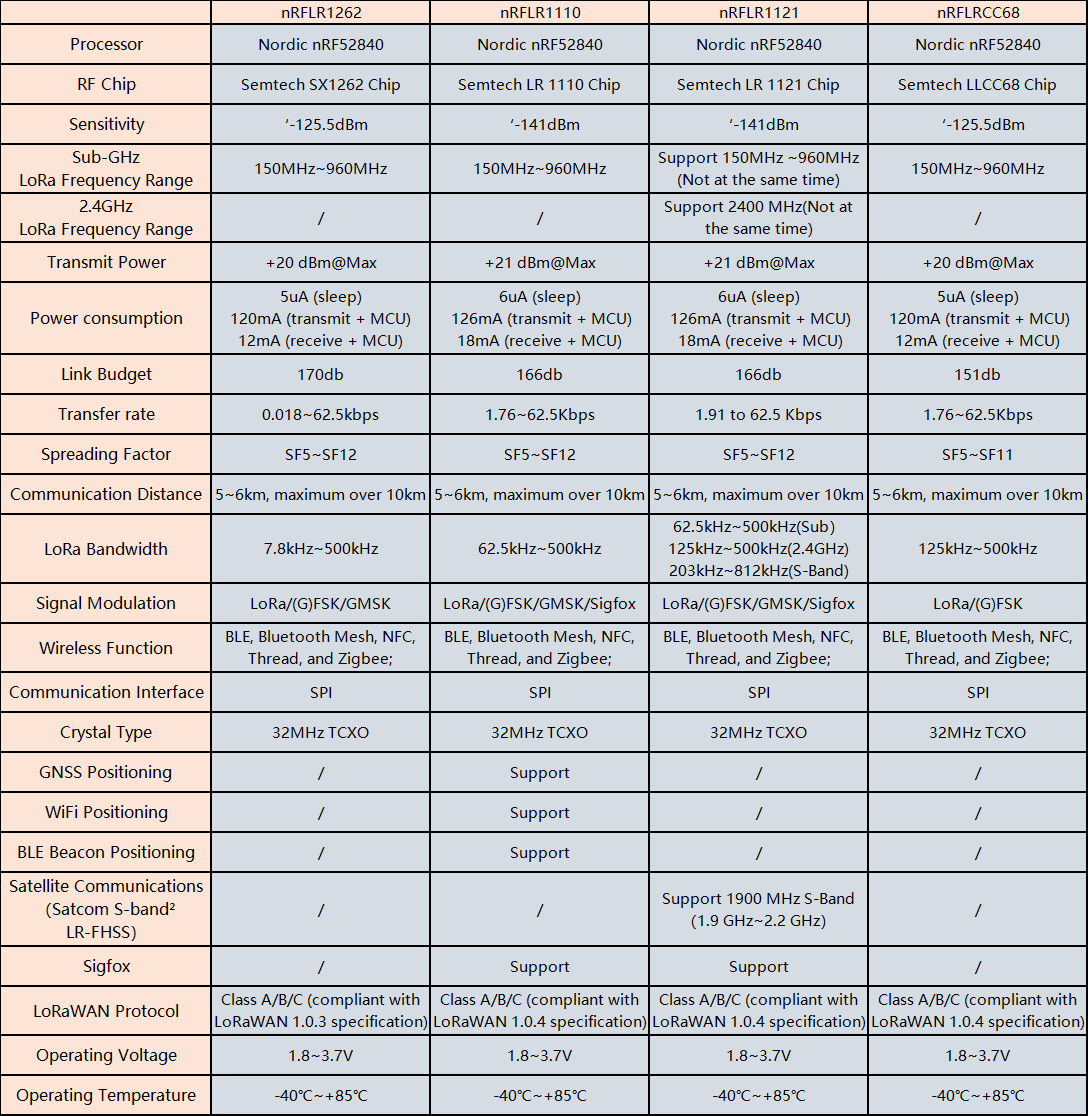

Specification

Processor	nRF52840 processor, dual-core 32-bit, 64MHz main frequency
RF chip	Semtech SX1262 Chip
LoRa Specification
Transmit Power TX	+20 dBm@Max
Receiving Sensitivity	-125.5dBm
Link Budget	Support 170db link budget
Demodulator	Support LoRa/(G)FSK/GMSK signal modulation
LoRa Frequency Range	Support 150MHz-960MHz configuration
Spreading Factor	SF5~SF12
Wireless connection	Supports low-power Bluetooth, Bluetooth mesh network, NFC, Thread and Zigbee
Data Transfer Rate	Supports data transmission rates from 0.018 to 62.5 Kbps
Other
Frequency	Covering 850~930MHz (applicable to 868MHz, 915MHz)
Communication Interface	SPI(0~10Mbps)
Lead Pin	Such as SPI signal, VCC, multiple GND, NRST, ANT, TX control, RX control, BUSY status, NFC, SWD debugging pin, etc.
Antenna	Not onboard, via RF pins
Reference Power Consumption	5uA (sleep), 120mA (transmit + MCU), 12mA (receive + MCU)
Communication Distance	5~6km, up to 10km
Crystal Type	Industrial grade 32MHz TCXO
LoRaWAN Protocol	Class A/B/C (compliant with LoRaWAN 1.0.3 specification)
Operating Voltage	1.8~3.7V
Operating Temperature	-40℃~+85℃, Industrial standard design
Package Size	20203.5mm, 80-Pin, SMT patch, LGA package;
Weight	3g
