Elecrow nRFLR1110 Wireless Transceiver Module-Integrates Nordic nRF52840 and Semtech LR1110

Description

Elecrow nRFLR1110 is a high-performance, low-power, long-range transceiver module that integrates the Nordic nRF52840 microcontroller and Semtech's latest third-generation LR1110 LoRa transceiver chip. Its maximum transmit power is up to +20dBm, the transmission rate range is wide, from 1.76~62.5Kbps, and the transmission distance can reach 10KM.

This module not only supports Bluetooth 5.3 and low-power Bluetooth, but also complies with the A, B and C classes of the LoRaWAN1.0.4 specification. It also supports LoRa point-to-point (P2P) communication mode, 850~930MHz global LoRa&LoRaWAN ISM frequency, providing strong support for quickly building custom LoRa networks. In addition, it also supports network protocols such as Bluetooth mesh, NFC, Thread and Zigbee.

nRFLR1110 uses the built-in high-performance GNSS (Global Navigation Satellite System) tracking function of LR1110 for outdoor precise positioning and tracking. At the same time, its Wi-Fi passive scanning and Bluetooth mesh network functions make it perform well in indoor positioning systems (IPS), achieving full coverage indoors and outdoors, reducing system complexity and cost. nRFLR1110 is the perfect development platform for applications such as asset management, positioning, recovery, traceability, anti-loss and theft, providing developers with a powerful, flexible and efficient solution.

Self-developed by Elecrow with exclusive design. Customization can be discussed for bulk orders.

Feature

High performance: Maximum transmit power can reach +20dBm, support 1.76~62.5Kbps transmission rate, -141dBm sensitivity @SF12/BW=125kHz, 166db link budget；
Ultra-low power consumption, sleep current is only 6uA;
Built-in GNSS (GPS/Beidou), Wi-Fi, and Bluetooth functions for precise indoor and outdoor positioning
Support 850~930MHz global LoRa&LoRaWAN ISM frequency, support LoRa point-to-point (P2P) communication; nRF52840 Bluetooth 5.3 SoC, support low-power Bluetooth, Bluetooth mesh network, NFC, Thread and Zigbee;
Built-in AT command firmware and support the use of SDK for customized product development, and the AT command set can be easily used through the UART interface;
Long-distance communication, the communication distance can reach 10km;
Rich peripherals, the module leads to a variety of GPIO interfaces such as UART, I2C, ADC, etc., providing great flexibility;
Compact form factor with only 20x 20x 3.5 mm
FCC, CE RoHS certification

Application scenarios

Smart city, smart agriculture, industrial automation, environmental monitoring, smart home, logistics management, medical health;

Pin Definition

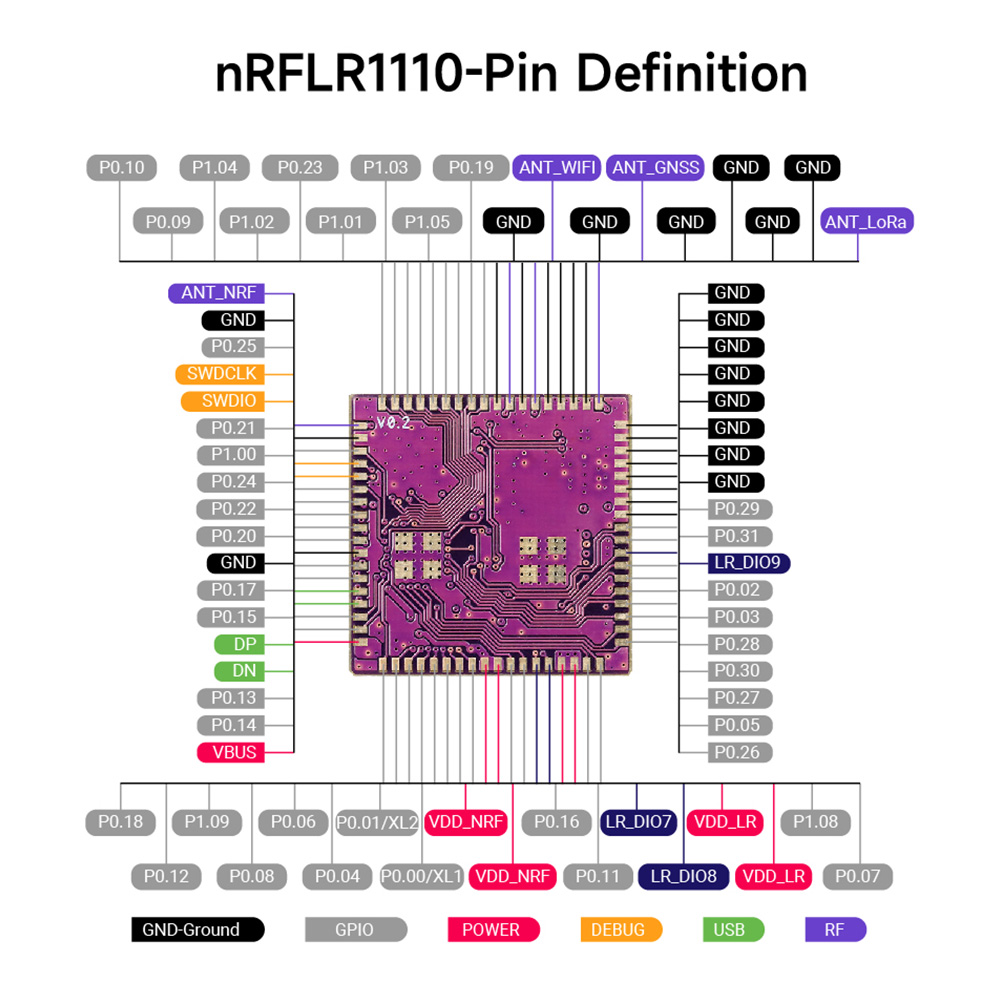

pin definition of nRFLR1110 Transceiver Module

Specification

Processor	nRF52840 processor, dual-core 32-bit, 64MHz main frequency
RF chip	Semtech LR1110 Chip
LoRa Specification
Transmit Power TX	+22 dBm@Max
Receiving Sensitivity	-141dBm
Link Budget	Support 166db link budget
Demodulator	Support LoRa/(G)FSK/GMSK/Sigfox signal modulation
LoRa Frequency Range	Support 150MHz-960MHz configuration
Spreading Factor	SF5~SF12
Data Transfer Rate	Supports data transmission rates from 1.76 to 62.5 Kbps
Other
Frequency	Covering 850~930MHz (applicable to 868MHz, 915MHz)
Communication Interface	SPI(0~10Mbps)
Lead Pin	Such as SPI signal, VCC, multiple GND, NRST, ANT, TX control, RX control, BUSY status, NFC, SWD debugging pin, etc.
Antenna	Not onboard, via RF pins
Reference Power Consumption	6uA (sleep), 126mA (transmit + MCU), 18mA (receive + MCU) 8mA @Bluetooth Scan、8mA @WiFi Scan
Communication Distance	5~6km, up to 10km
Crystal Type	Industrial grade 32MHz TCXO
LoRaWAN Protocol	Class A/B/C (compliant with LoRaWAN 1.0.4 specification)
Operating Voltage	1.8~3.7V
Operating Temperature	-40℃~+85℃, Industrial standard design
Package Size	20203.5mm, 80-Pin, SMT patch, LGA package;
Weight	3g
