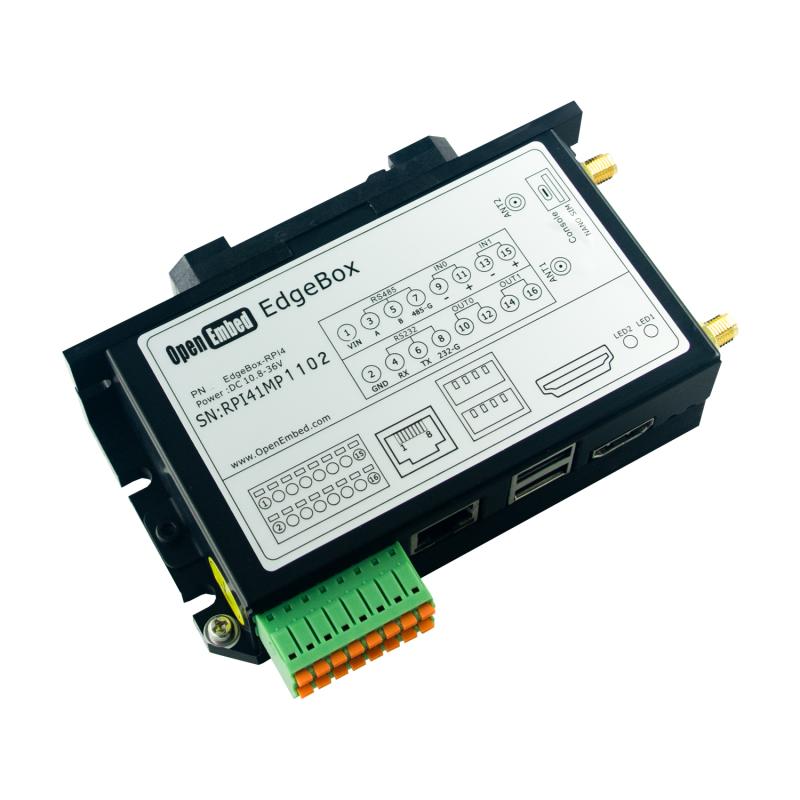

EdgeBox-RPI4

Description

OpenEmbed's products are designed from the ground up to meet the challenges of harsh environments at competitive prices, ideal for small business or small order with scale milti-level demands.The EdgeBox-RPI4 is fitted with the Raspberry Pi CM4. It is designed for easy setup and quick deployment for typical industrial applications, such as status monitoring, facility management,digital signage and remote control of public utilities.Furthermore, it is a user-friendly gateway solution with 4 cores ARM Cortex A72 and most industry protocols can save on total deployment costs including electrical power cabling cost and help reduce the product’s deployment time. Its ultra-lightweight and compact design is the answer for applications in space-constricting environments ensures it can operate reliably in a variety of extreme environments including in-vehicle applications.

Features and benefits

• Raspberry Pi Computer Module 4(CM4) 1.5GHZ
• Dual-Band Frequency 2.4GHz/5GHz WiFi
• Mini PCe socket for 4G/LTE communication
• M.2 socket for  for  NVME mass storage
• Isolated DI&DO terminal
• Isolated RS-485 interface
• Built in Backup power ideal for mission-critical applications
• Full aluminium enclosure direct contact with the Pi's SoC
• 35 mm DIN and wall mount

Specifications

CPU

• Broadcom BCM2711,Quad-core A72 running up to 1.5 GHz

Memory

• Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM

Storage

• On board emmc 8GB to 32GB
• M.2 socket for NVME SSD up to 2TB

Wireless​

• 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac

• Bluetooth-compatible, BLE.

Video Interface​

• HDMI 2.0a (up to 4kp60 supported)

Interfaces

• 1 × RJ45 ethernet port support 10/100M/1000M
• 2 x USB 2.0 Port
• 1 x HDMI 2.0
• 2× DI
• 2x DO
• 1 x isolated RS485
• 1 x RS232
• 1 x mini-PCIe socket with sim card support
• 1 x M.2 socket with 2242 NVME card support
• dual bands 802.11ac Wi-Fi(optional)
• Wide power supply support 12-36V DC

Extra features

• built in UPS with supercap for safe shutdown(optional)
• RTC
• Stand alone Watch dog timer
• Atecc608a(optional)

Graphics and multimedia

• 3D GPU: Supports  OpenGL ES 2.0, 1.1; H.264,MPEG4 decode(1080p30);H.264 encode(1080p30)

Operating temperature

• -20° to 60°

Dimensions

• 124x68x35mm

Certifications

• CE
• FCC

Application

• IoT gateway
• 4G/LTE router
• Edge computing controller
• Software define PLC(Programmable Logic controller)
• Industry controller
• Building automation and control system
