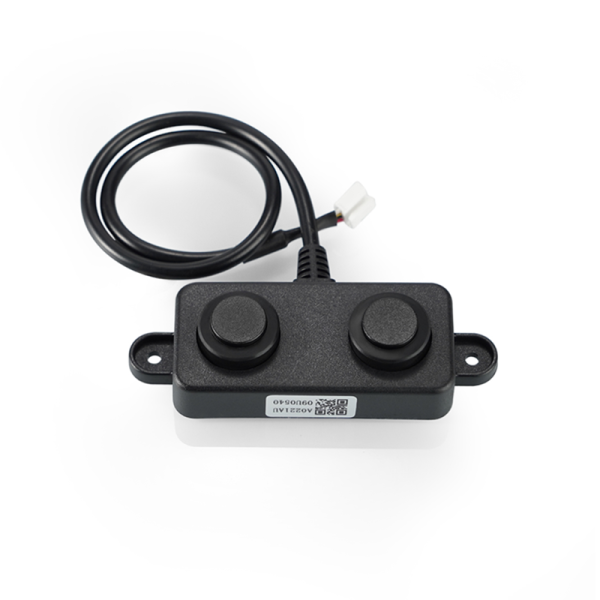

DYP-A02YY Waterproof Ranging Ultrasonic Sensor

Rating:
100 % of 100
$19.99
Availability: In stock
SKU
SEN56450P
Weight
42g

【Ultrasonic sensor】Non-contact distance measurement module with stable performance and high distance measurement accuracy (± (1 + S*0.3%))
【Response time】100ms
【Waterproof level】IP67
【Detection range】3-450cm

Description

This ultrasonic ranging sensor is a non-contact distance measurement module with stable performance and high ranging accuracy featuring a much smaller blind zone, wider sensing angle, and a certain penetration power compared with other similar sensors. It can detect the distance between the ultrasonic wave and the target. Widely used in robot obstacle avoidance, parking management systems, automatic control and so on.

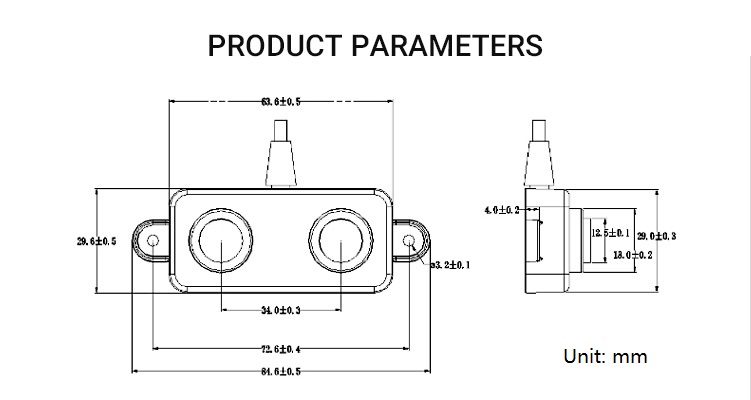

parameter of waterproof ultrasonic ranging sensor

Specification

  • Average Current: <8mA

  • Operating Voltage: 3.3~5V

  • Response Time:100ms

  • Detecting Range(Flat object): 3-450cm

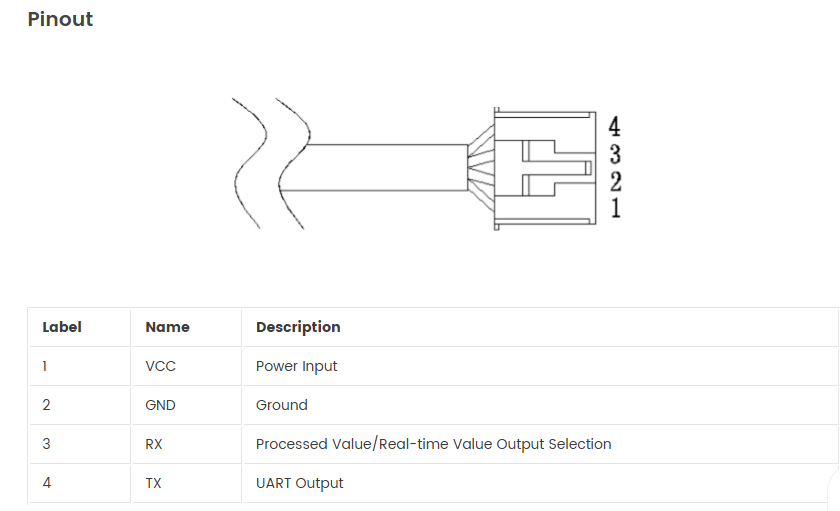

  • Output: URAT

  • Operating Temperature: -15~60℃

  • Reference Angle: 60º

  • Waterproof Grade: IP67

  • Measurement accuracy: ±(1 + S*0.3%)



Package List

  • 1 x Ultrasonic Ranging Sensor
