Description

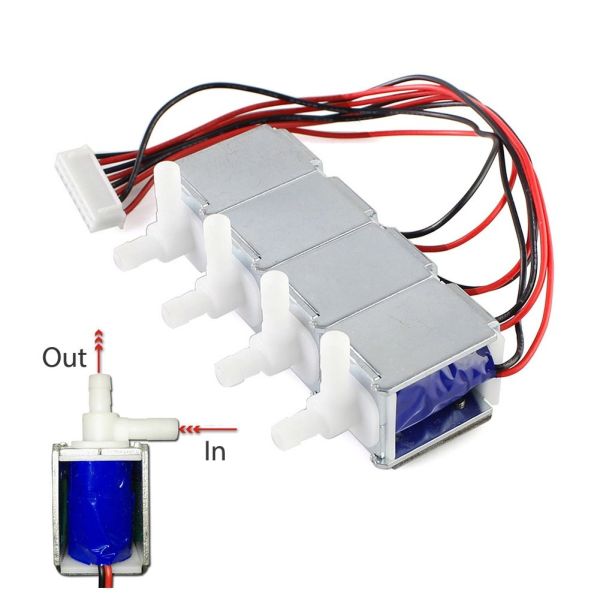

This is a DC12V independent control four-way solenoid valve, which has an inlet and four air outlets, you can individually control the outlet of each outlet, so the outlet can be used alone can also be used with four. It will give your project a great convenience. Outlet and inlet diameter are 8mm. The length of the solenoid valve is about 80mm, height about 48mm, can be used in many DIY projects which can save a lot of space. Solenoid valve on both sides of a fixed hole to facilitate fixed. Each outlet has a separate wire to control. It depends on you about how to use it.

Features

This valve has one air inlet port and four air outlet port
Four air outlets can be controlled independently of each
the air inlet port and outlet port diameter is 8mm
Each valve has a separate control line

Specifications

Working Voltage： DC 12V
Working Current：0.2A
Rated voltage: DC 6.0V DC 12.0V
Rated current: ＜280mA ＜160mA
Pressure range: 0-450mmhg
Fluid: Water/Air
Power: <3w
Operating temperature range: 0℃ ~55℃
Service life: In a 500CC container, inflating for 10 seconds and exhausting for 5 seconds is a loop test for more than 50,000 times
