CrowPanel ESP32 2.9” E-paper HMI Display with 128*296 Resolution, Black/White Color Driven By SPI Interface

Rating:
100 % of 100
$17.90
Availability: In stock
SKU
DIE01129S
Brand
elecrow
Weight
115g
  • Buy 2 for $13.43 each and save 25%

【2.9-inch E-Paper display】128*296 resolution, using ESP32-S3 as the main control, excellent performance.
【Pure reflection mode】By reflecting ambient light instead of the backlight to display content, it is clearly readable in direct sunlight.
【Retain data during power outages】The data will not be lost even when there is no power.
【Outstanding readability】Wide viewing angle, high contrast and high reflectivity, not affected by light, providing a better reading experience

Description

This 2.9-inch ESP32 electronic paper (E-Paper)HMI display has a resolution of 128*296 and a classic black and white dual-color presentation, giving you the same reading experience as paper. It has high contrast and reflectivity, as well as hard-coated anti-glare technology. You can have an excellent visual experience in any lighting condition. The built-in ESP32-S3 chip is the main control, with powerful performance and fast data transmission through the SPI interface. It is also equipped with various interface and button designs, including BAT interface, UART0 interface, 2x10 pin GPIO interface, back button, home button and rotary switch, allowing developers to easily program and control. The white acrylic shell is not only beautiful but also protects the screen.

Based on the ESP32 chip, another highlight is its wide compatibility. It is compatible with three development environments: Arduino IDE, ESP IDF, and MicroPython, simplifying the secondary development process. Also, its ultra-wide viewing angle design allows you to enjoy the same brilliant image from any angle. The ultra-low power consumption feature consumes only a small amount of power when refreshing, ensuring long-lasting battery life. Pure reflection mode means no backlight is required, and information remains clearly visible after power failure, without worrying about information loss.

This E-Paper screen is widely used in shelf labels, price tags, badges, smart labels, smart home devices, e-readers, smart wearable devices and other portable devices. It is an ideal choice for various smart devices and applications.

Customization can be discussed for bulk orders.

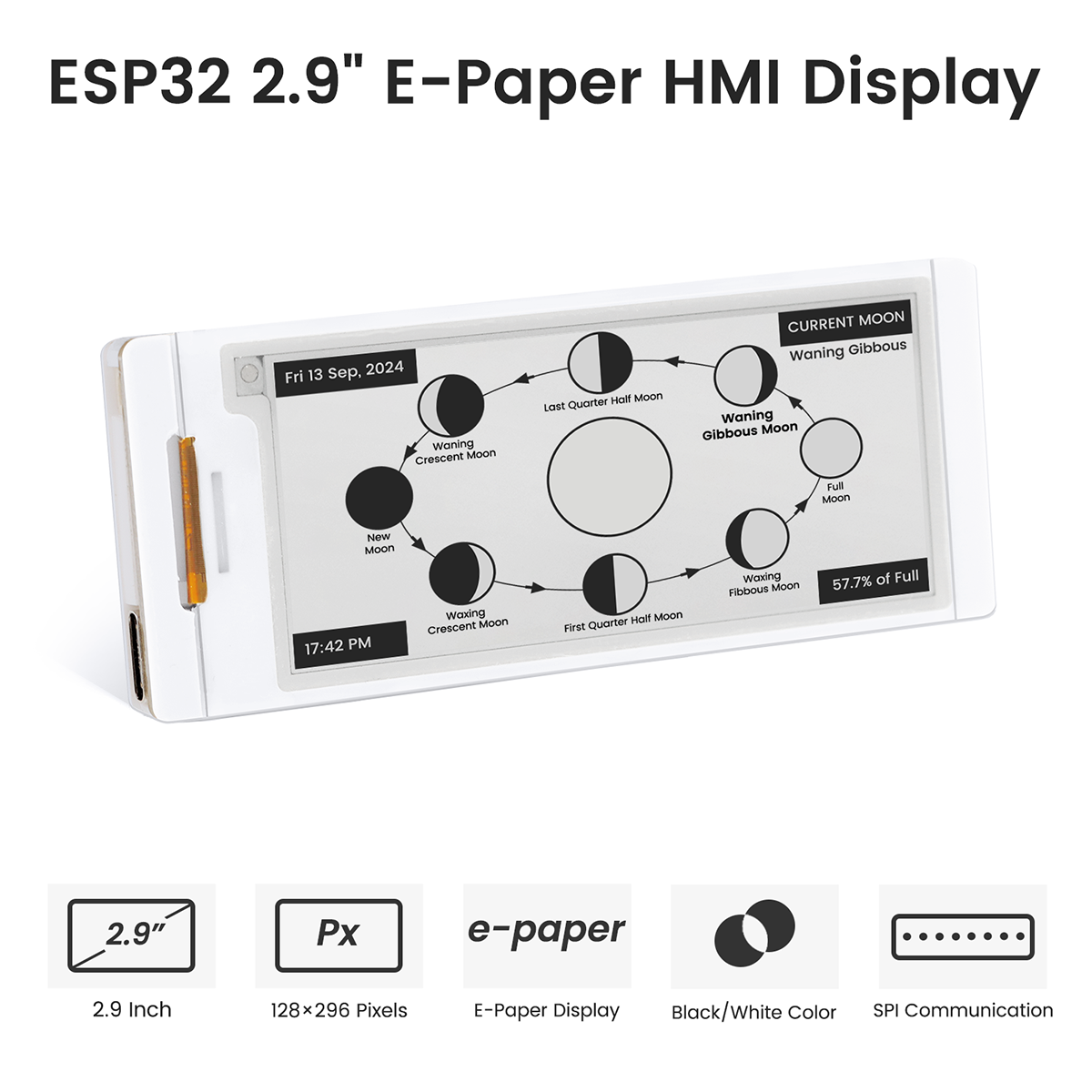

ESP32 2.9incg E-paper HMI Display feature

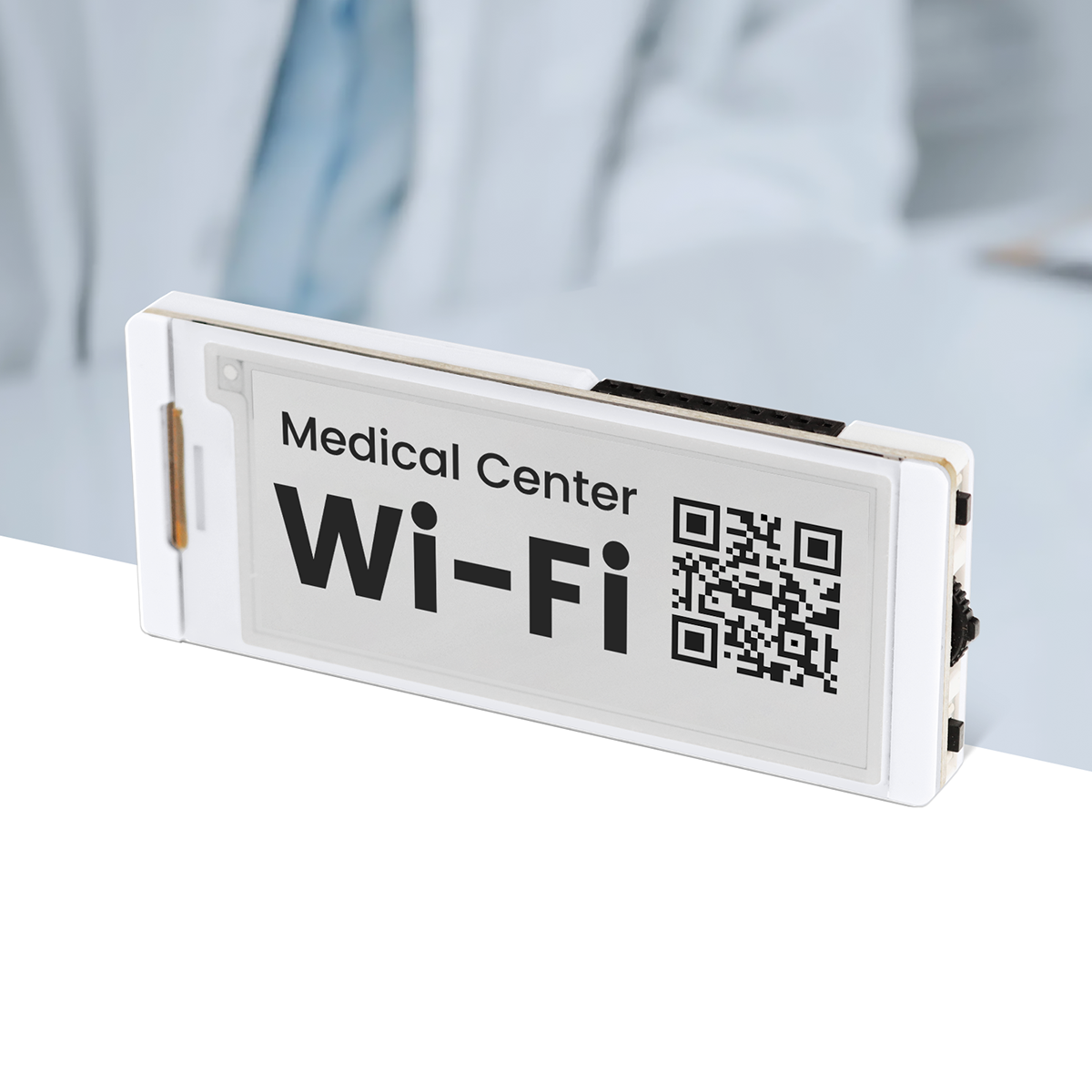

 application of ESP32 2.9incg E-paper HMI Display

Advantages of E-paper

Electronic paper displays can clearly display images/text under lighting or natural light, without backlight, with lower power consumption and longer life due to partial refresh. Because its effect is similar to that of paper, it is often used as an e-reader.

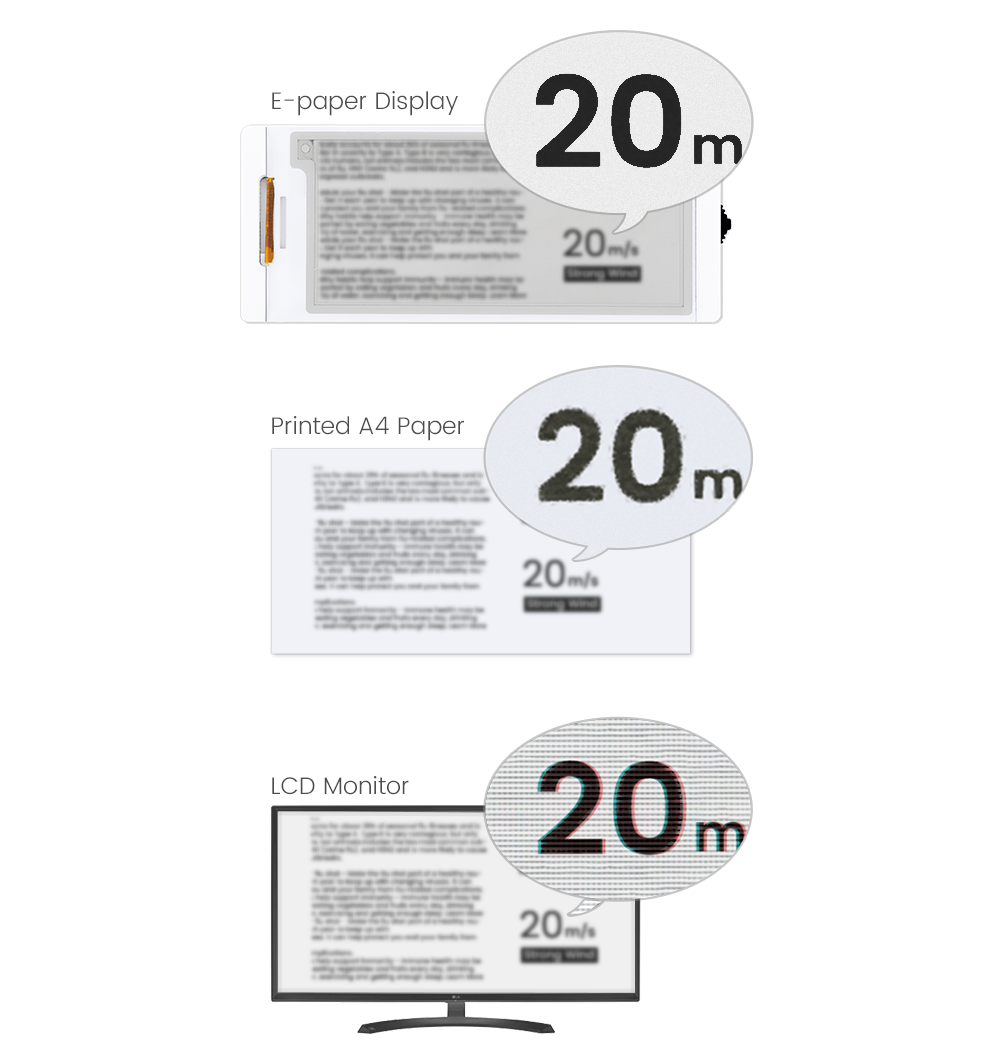

Advantages of 2.9 inch E-paper display



application of e-paper display

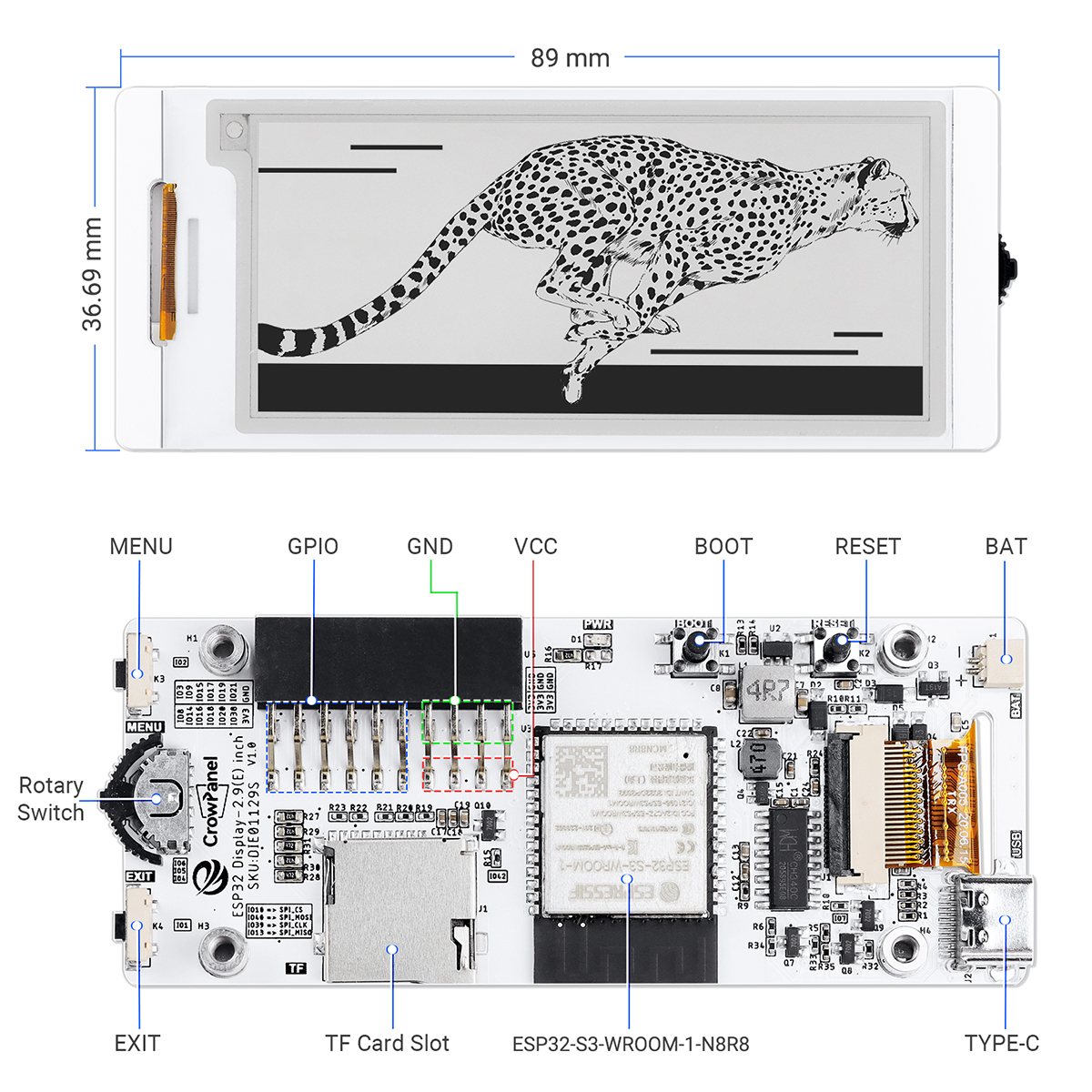

hardware overview of ESP32 2.9incg E-paper HMI Display

Feature

  • 2.9-inch E-Paper display, 128*296 resolution, black and white, using SPI interface communication;
  • ESP32-S3 as the main chip, frequency up to 240MHz;
  • Support full viewing angle, clearly visible from any angle;
  • High contrast and high reflectivity, can provide better visual performance;
  • Pure reflection mode, no backlight required, completely relying on light reflection to display content, and the displayed content will not be lost even if the power is off;
  • Hard-coated anti-glare display surface, it can keep the content clearly visible even under direct sunlight;
  • Support Arduino IDE, ESP IDF, and MicroPython development environment to get a smooth development experience;
  • Ultra-low power consumption and partial refresh function, significantly saving energy;
  • Rich buttons and interfaces (such as GPIO interface, UART interface, home button, etc.) for easy development and operation.



Where to use

  • Electronic label: supermarket or shelf product information and price;
  • E-book reader;
  • Electronic business card: display the corresponding participant information;
  • Smart home and other applications;





Specification

Size

2.9 inch

MCU

ESP32-S3-WROOM-1-N8R8, up to 240 MHz

Flash

8 MB

PSRAM

8 MB

Material

Active Matrix Electrophoretic Display (AM EPD)

Driver Chip

SSD1680Z

Resolution

128(H)*296(V) Pixel

Pixel pitch

0.227*0.226

Viewing Angle

Full Viewing Angle

Communication interface

3-/4-wire SPI

Interface

UART0x1, BATx1, GPIIOx1, TF Card x1

Button

Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1

Development Environment

Arduino IDE、ESP IDF、MicroPython

Display Color

Black and white

Refresh Mode

Partial refresh (saves more power)

Display Operation Voltage

2.2~3.7V

Acrylic Case

White Acrylic Case

Operation Temperature

-0~50℃

Storage Temperature

-25~70℃

Active Area

29.056(H)*66.896(L)(H*L)



Different Size Comparison

Size 1.54inch 2.13inch 2.9inch 3.7inch 4.2inch 5.79inch
Color black, white black, white black, white black, white black, white black, white
Chip ESP32-S3 ESP32-S3 ESP32-S3-WROOM-1-N8R8 ESP32-S3-WROOM-1-N8R8 ESP32-S3-WROOM-1-N8R8 ESP32-S3-WROOM-1-N8R8
Flash 8MB 8MB 8MB 8MB 8MB 8MB
PSRAM 8MB 8MB 8MB 8MB 8MB 8MB
Driver Chip SSD1680 SSD1680Z SSD1680Z UC8253 SSD1683 SSD1683
Resolution 125*125 122*250 128×296 240*416 400*300 272*792
Partial Refresh Yes Yes Yes Yes Yes Yes
Communication Interface SPI SPI SPI SPI SPI SPI
Interface UART0x1, BATx1 UART0x1, BATx1, GPIOx1 UART0x1, BATx1, GPIIOx1, TF Card x1 UART0x1, BATx1, GPIIOx1, TF Card x1 UART0x1, BATx1, GPIOx1, TF Card Slot x1 UART0x1, BATx1, GPIOx1, TF Card Slot x1
Button Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1 Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1 Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1 Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1 Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1 Dial Switchx1, Menu Buttonx1, Back Buttonx1, REST Buttonx1, BOOT Buttonx1
Active Area 37.18(H)*48.32(L)(H*L) 31.2(H)*63.19(L)(H*L) 29.056(H)*66.896(L)(H*L) 47.04(H)*81.54(L)(H*L) 84.8(H)*63.6(L)(H*L) 47.74(H)*139.00(L)(H*L)

Package List

  • 1x 2.9 inch E-Paper Display
  • 1x USB Cable
