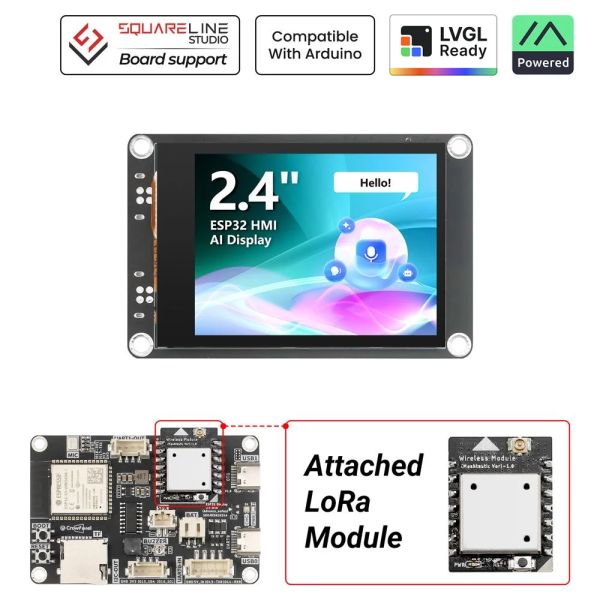

CrowPanel Advance 2.4” AI Display for Meshtastic-HMI ESP32 320x240 IPS Display Artificial Intelligent Touchscreen

Description

Following the acclaim of the CrowPanel Basic Series screens, we are now launching the upgraded CrowPanel Advance Series screens, aiming to provide more outstanding performance and richer features.

This Advance ESP32 2.4-inch display is an upgraded version of the CrowPanel HMI display. It is a powerful HMI touchscreen with a 320*240 IPS display. It adopts the ESP32-S3 chip as the core processor. This chip has an Xtensa 32-bit LX7 dual-core processor. It runs at up to 240MHz. It has 512KB SRAM, 8M PSRAM, and 16M Flash. This gives the device strong data processing power.  The integrated 2.4GHz Wi-Fi and BLE functions, combined with the built-in RF antenna, ensure the stability and reliability of the wireless connection. In addition, the diverse interfaces and excellent low power make this 2.4” screen ideal for HMI applications with strict wireless connectivity requirements. It supports the Arduino IDE, Espressif IDF, PlatformIO and MicroPython. It is compatible with the LVGL graphics library and supports MicroPython and C++.

This 2.4” screen uses an IPS panel. Its 178°viewing angle lets you enjoy a vivid view from any angle. The capacitive touch technology brings you smooth and responsive interactive operations, making every touch accurate and intuitive.

A notable feature of the CrowPanel Advance 2.4” display is its integrated AI function. Users can interact using the microphone and speaker. They can use voice recognition and speech synthesis to talk to smart assistants and get information easily. Another highlight of this screen is its modular design, which provides diversified wireless communication options. Users can replace modules as needed. They support multiple protocols, including Zigbee, LoRa, nRF2401, Matter, Thread, and Wi-Fi 6. One screen and different modules can meet the wireless connection needs of different scenarios. With the SX1262 wireless module, the Advance 2.4" HMI display can support access to the Meshtastic network(An open source, off-grid, decentralized, mesh network built to run on affordable, low-power devices).

This upgrade integrates the latest wireless tech, an optimized port layout, a great touch display, and larger storage. These improvements make connectivity more flexible and reliable. They give users more options and applications and can meet the high demands of modern intelligent remote monitoring and control systems.

Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.

Integrated Intelligent AI Functions

Voice interaction is achieved through the microphone and speaker, allowing seamless conversations with the smart assistant and easy access to information.

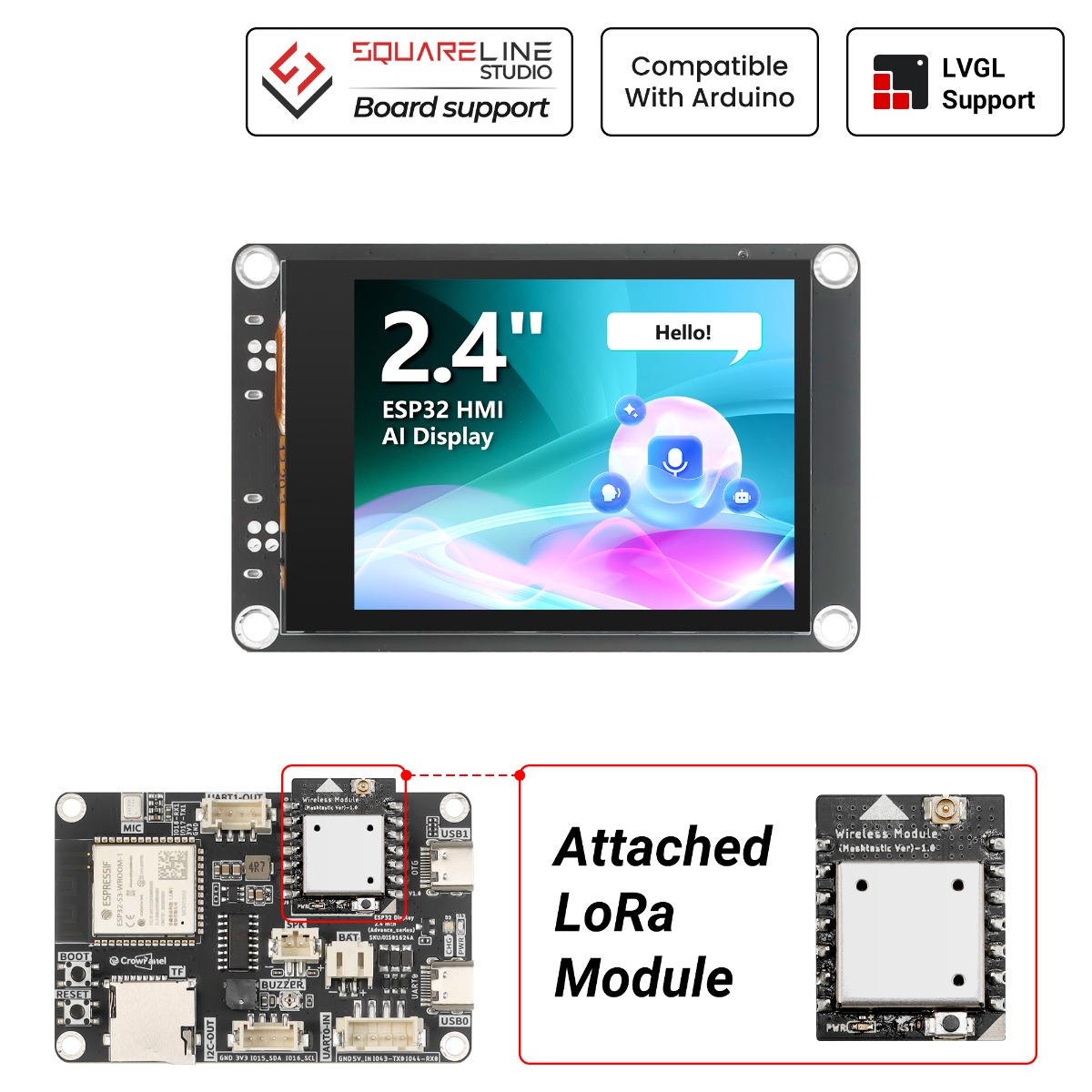

Replaceable Wireless Module Design, Provides Diversified Wireless Communication Options

By replacing the module, it supports multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread, Wi-Fi 6 and Meshtastic. One screen can meet various wireless communication requirements.

Note: Please click here to buy the display with other wireless modules.

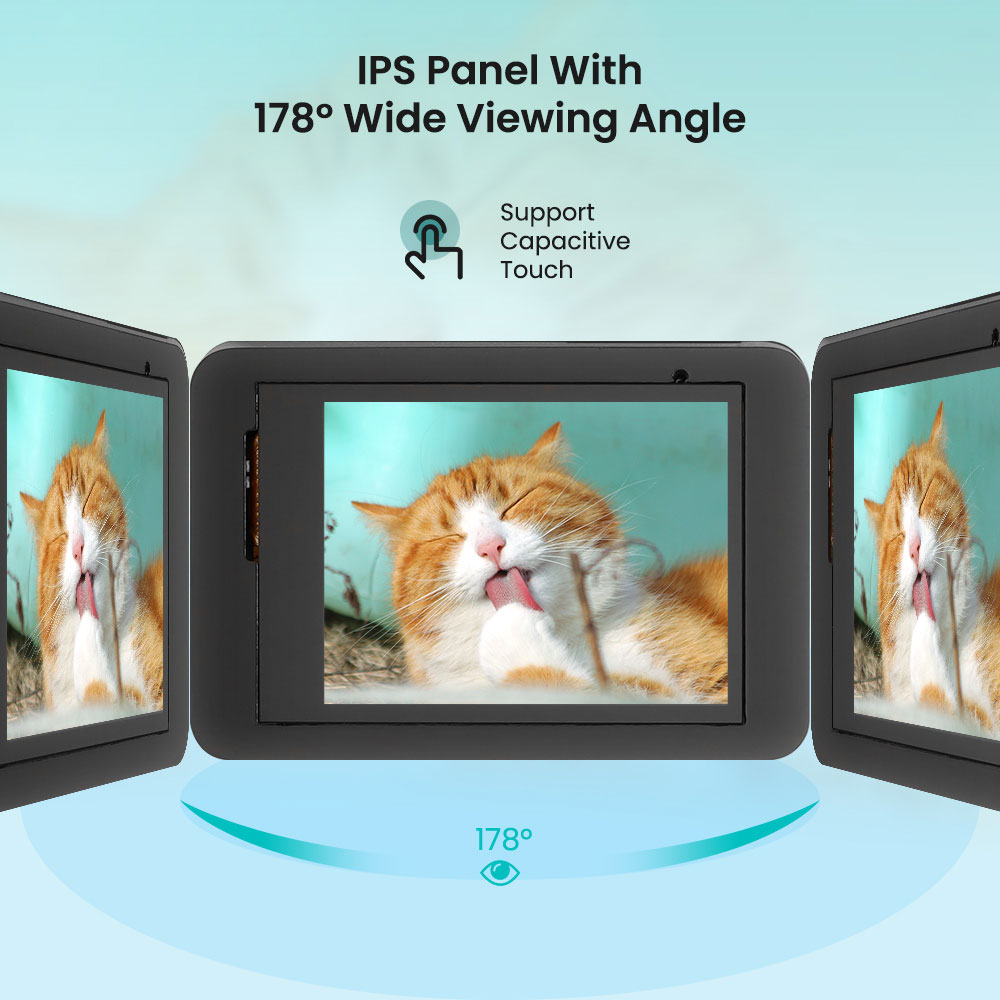

IPS Panel With 178°Wide Viewing Angle

The 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle.

Support Multiple Development Environments

It supports multiple development environments such as Arduino IDE, Espressif IDF, PlatformIO and MicroPython, and development languages like MicroPython, and C++ to meet the needs of different developers and make every project possible.

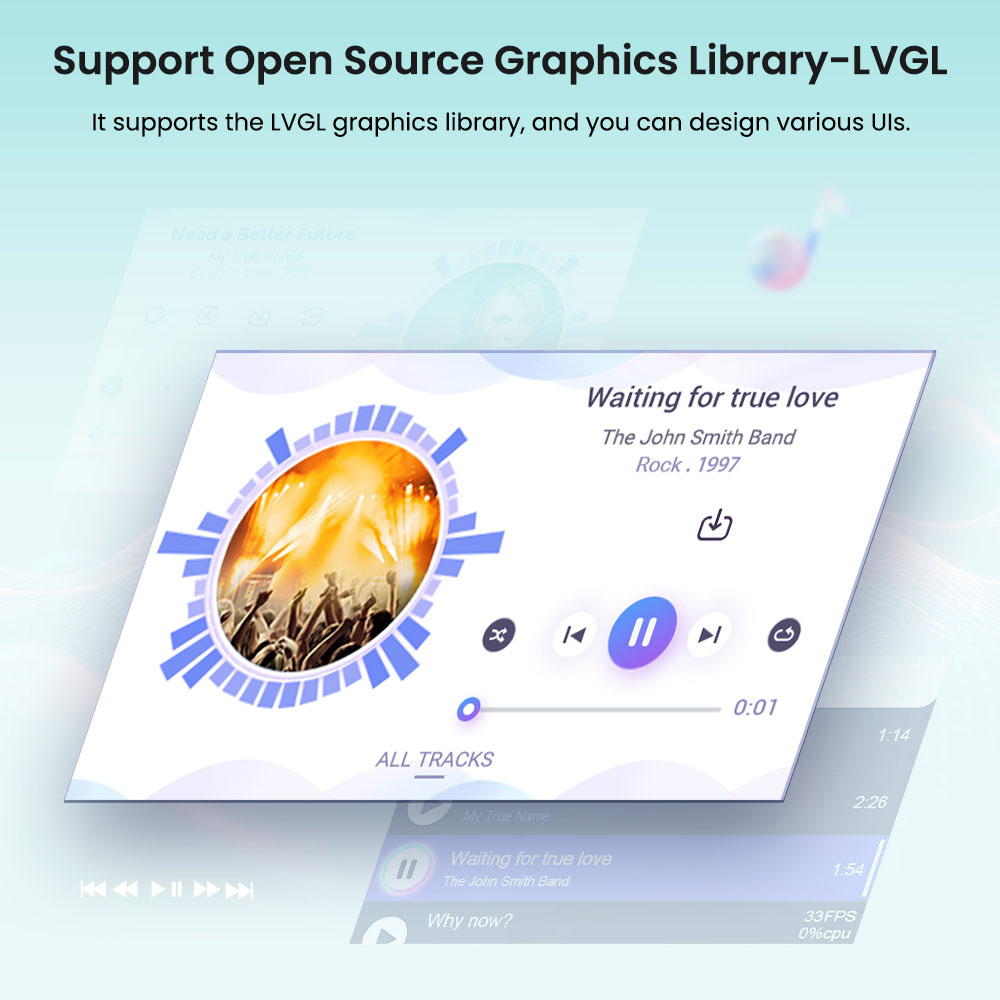

Support Open Source Graphics Library - LVGL

It supports the LVGL graphics library, and you can design various UIs.

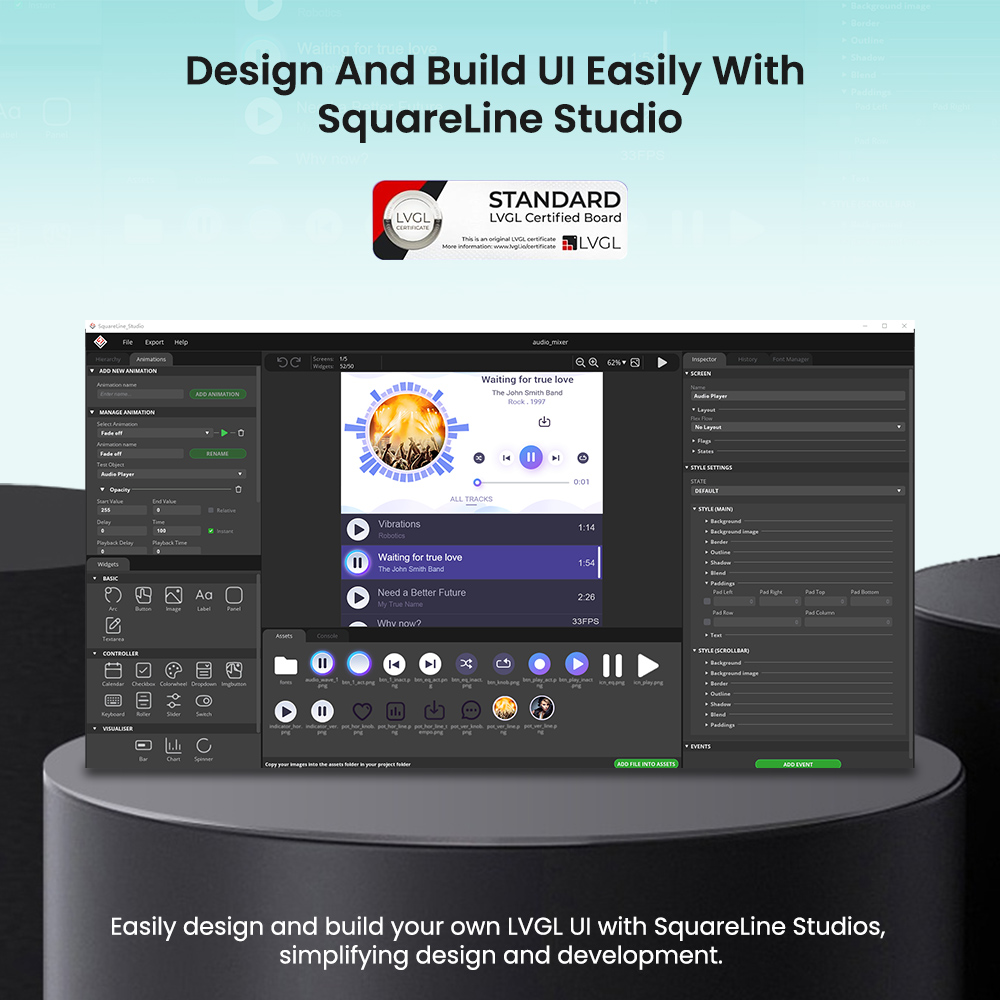

Design And Build UI Easily With SquareLine Studio

Easily design and build your own LVGL UI with SquareLine Studios, simplifying design and development.

Squareline Vision has entered BETA, sign up now to get 40% off all licenses. https://vision.squareline.io/

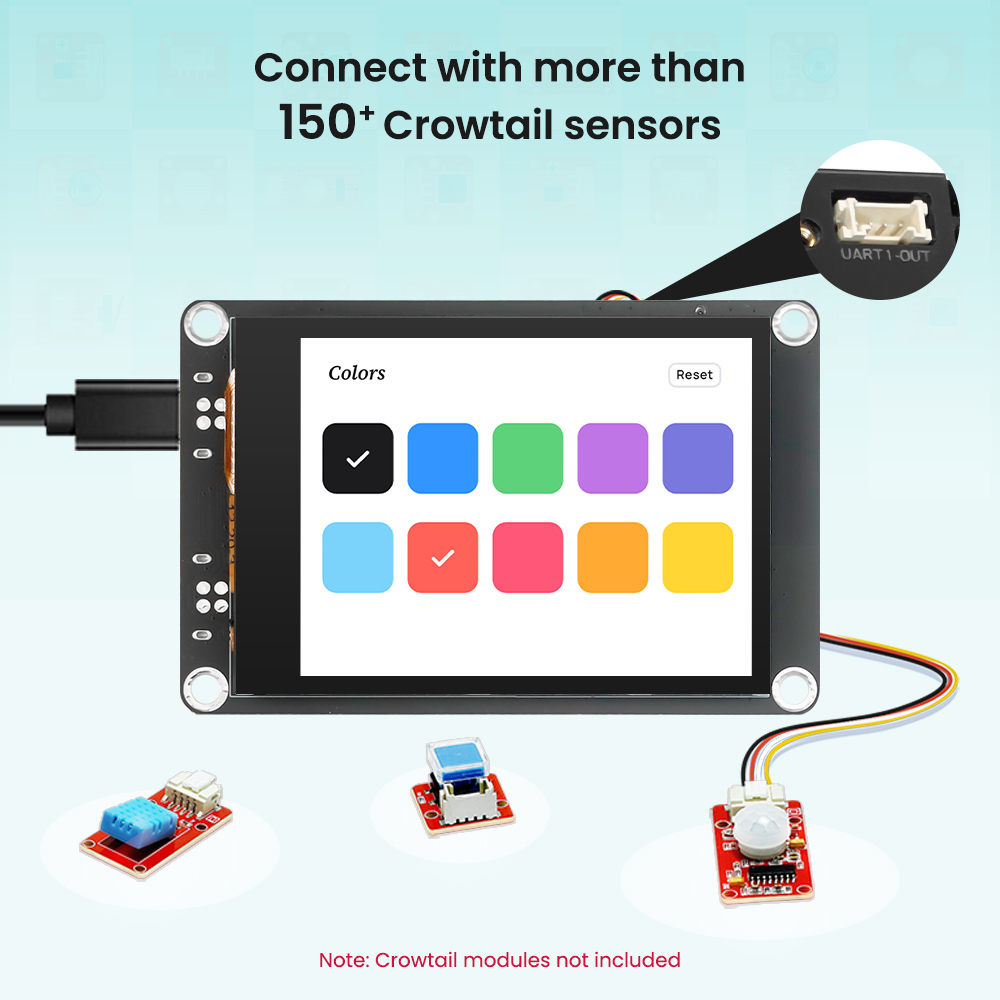

Connect With More Than 150+ Crowtail Sensors

Application Scenario

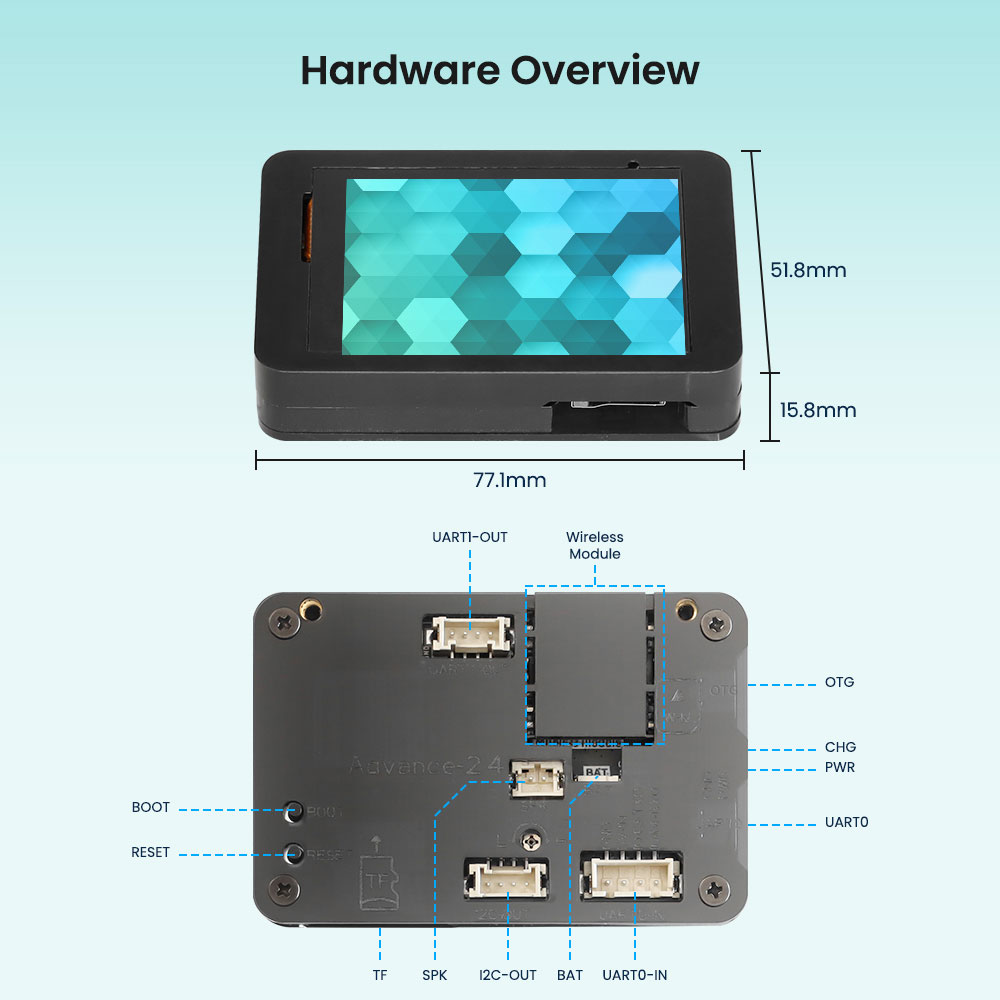

Hardware Overview

Feature

• Equipped with ESP32-S3-WROOM-1 module as the core controller, it provides more excellent performance;
• Main frequency up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash;
• 320*240 2.4”, with driver IC ST7789;
• IPS panel, 178°wide viewing angle, and supports capacitive touch;
• Replaceable wireless communication module can support multiple communication protocols by replacing different modules;
• Intelligent AI function, equipped with high-performance microphone and speaker, users can have seamless conversations with smart assistants through voice command interaction, voice recognition and speech synthesis;
• Purchase the SX1262 wireless module to support access to the Meshtastic network;
• Built-in LVGL demonstration interface and Arduino examples, plug and play;
• The peripheral port adopts vertical and built-in terminal design, which is more in line with the compact and integrated design requirements of embedded devices.

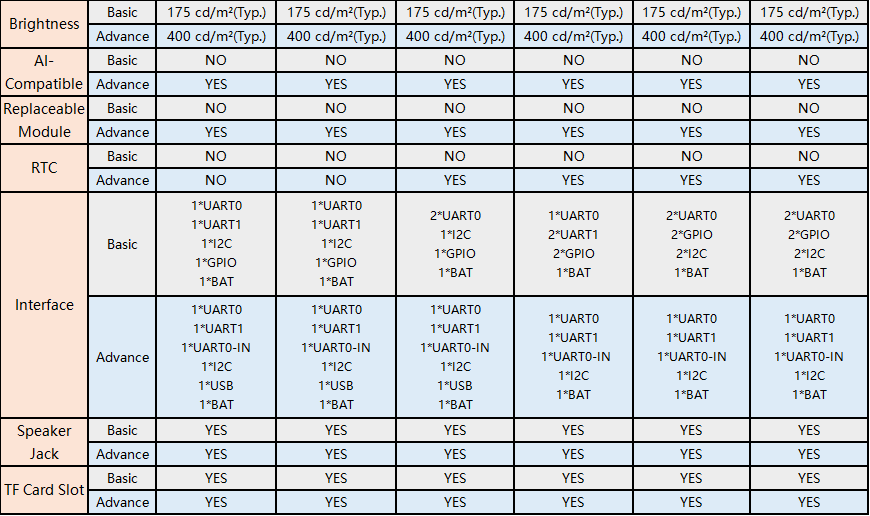

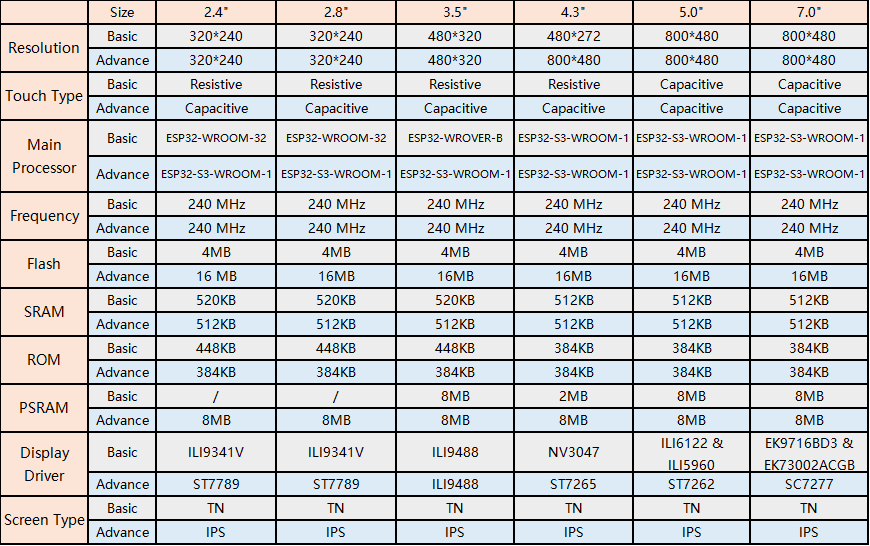

CrowPanel Basic Series Compare With Advance Series

Application scenarios

• Industrial automation
• Smart city
• Smart home
• Medical equipment
• Agricultural technology
• Environmental monitoring
• Energy management
• Logistics and warehousing
• Retail and catering
• Education and research

Target Group

Engineers and technicians, system integrators, facility managers, R&D personnel, agricultural workers, environmental scientists, medical professionals, retailers and restaurant owners, educational institutions, energy companies, etc.

Specification

Wireless Module Details for SX1262(LoRa)

Antenna Performance

Display Pin Definition

For more pin functions, see Wiki.

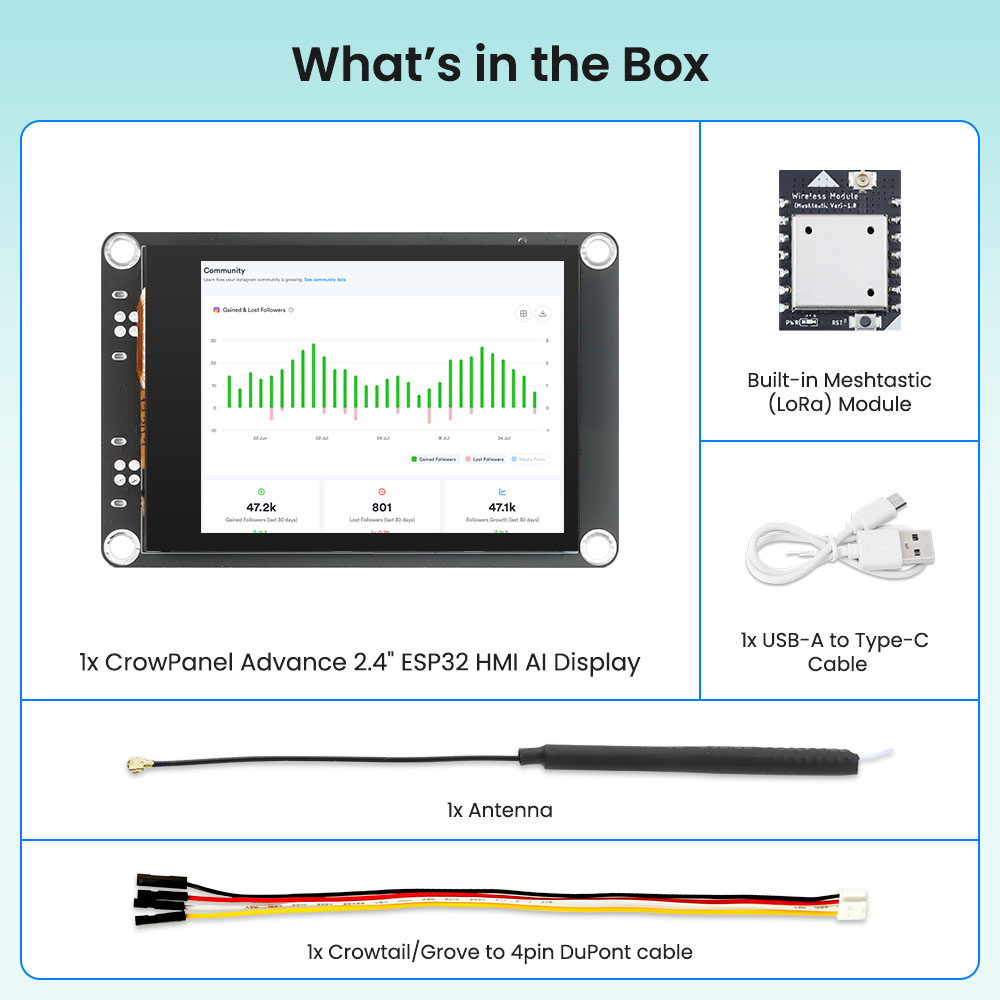

Package List

• 1x CrowPanel Advance ESP32 Display-2.4 inch
• 1x Wireless Module-Meshtastic( with 868Mhz/915MHz Copper Tube Spring antenna)
• 1x USB-A to Type-C Cable
• 1x Crowtail/Grove 4pin DuPont cable

Wiki & External links

• Wiki
• ESP32-S3 Datasheet
