Crowbits-RGB LED

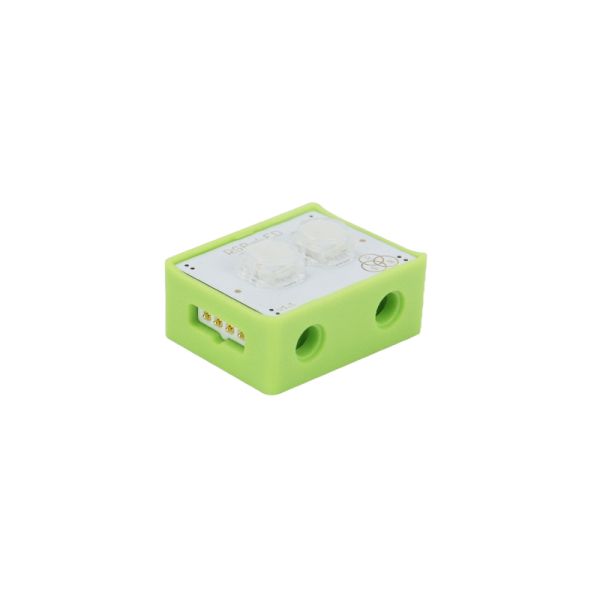

What is the Crowbits-RGB LED?

It is composed of two RGB lamp beads and it can display various colors. Respond to changes in input signals in monochrome, full-color, and gradual manner.

How does it work?

WS2812 model RGB 5050 lamp beads integrated with a control unit of a single pixel, three primary colors (each pixel of the RED, GREEN, BLUE ) can achieve 256 levels of brightness display, built-in signal cascade and a signal shaping circuit, built-in data-line communication protocol, single-line communication can be used for LED cascading, data is input from the DIN terminal and output from the DOUT terminal. The first sent 24BIT data is extracted by the first pixel point, (This 24BIT data can be used to control the dimming, flickering, and alternate RGB colors of a single light ), and sent to the data latch inside the pixel point for locking. The remaining data is then transferred to the next cascading pixel point after internal reshaping and amplification, every time a pixel point passes, the signal is reduced by 24BIT, so that multiple cascaded lights can be controlled by a single cascade line for each light to turn on, off, blink, and gradient control.

How to use it?

It can be used in conjunction with other modules to display the detected information.

Specification

Interface Type：GPIO

Operating Voltage: 3.3V DC

Dimensions: 5(L)*24.5(W)*13(H)mm
