Crowbits-Logic AND

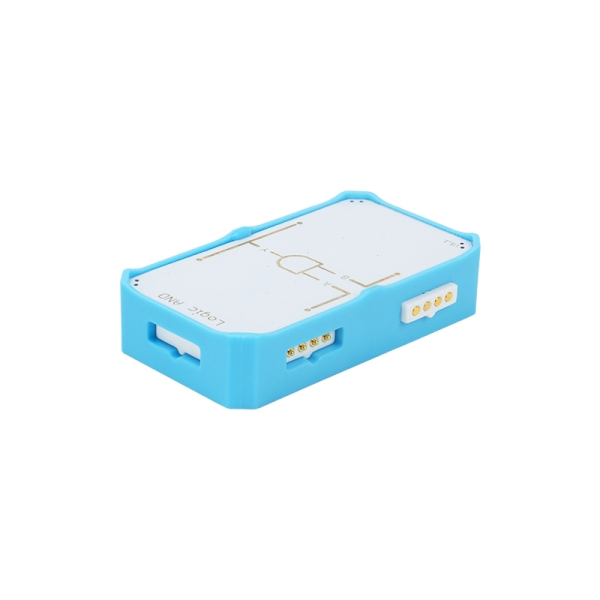

What is Crowbits-Logic AND?

The logic AND is a logic gate that creates rules for your circuit, gives you more ability to create interesting and complex interactions.

How does it work?

The logic AND has two inputs and one output, only both of the inputs are true, the output is true. The interface of the logic AND is a digital interface, it will output a logic-high/low (1/0) signal.

1. The AND only outputs a logic-high signal when both of the inputs are logic-high.
2. When one of the input is a logic low-level signal, the AND will output a logic-low signal.

Use cases

The logic AND module is very useful when you want to take one sensor or module as input and get a result on 2 modules or sensors instead of one. For example, you take the input as a button and the output as a buzzer and a vibration motor.

Tips

The output interface of the AND gate is expanded into two, so you can connect more modules at the same time.

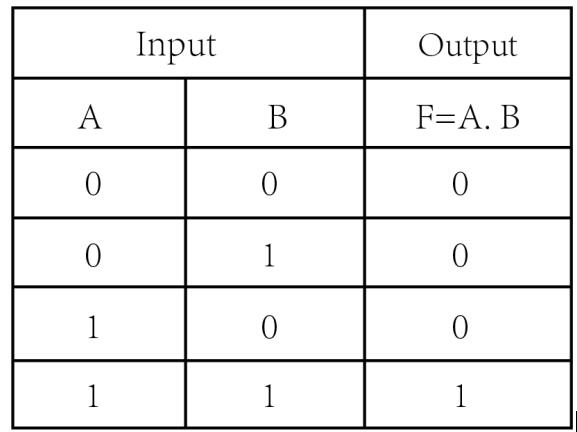

The AND gate acts in the same way as the logical “and” operator, the output is “1” when both inputs are “1”. Otherwise, the output is “0”

Specification

• Operating Voltage: 3.3V DC
• Supply mode: Crowbits Power Module
• Dimensions: 56(L)*31(W)*13(H) mm
