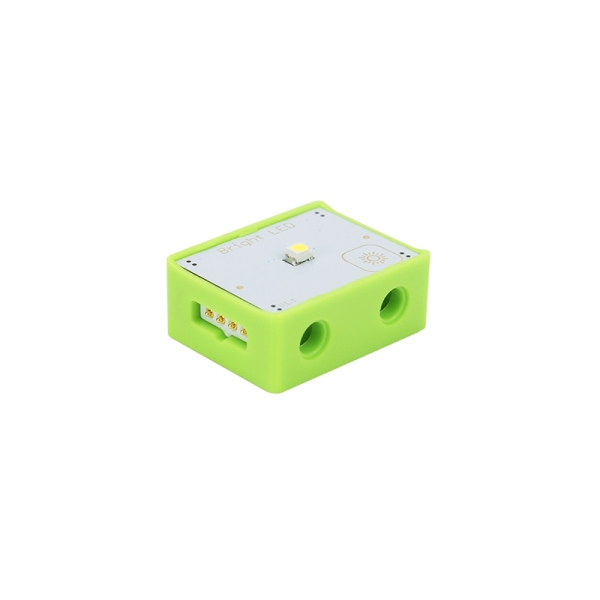

Crowbits-Bright LED

What is Crowbits-Bright LED?

Crowbits-Bright LED is a digital output module, it’s small but puts out a bright light. Compared with Crowbits-LED we introduced before, the bright LED is perfect for illuminating while the LED we introduced before is good for indicating.

You could locate the bright LED module on the table, use it together with a switch module. When you press the switch, the bright LED will be on, it seems like a desk lamp.

How does it work?

The main part of the bright LED is a SMT light-emitting diode, the working principle of the bright LED is the same as the LED we introduced before. You can use the input signal to control when to turn on the bright LED and how bright it shines.

1. When the bright LED receives a logic high-level signal, the LED will be on.

2. When you input a logic low-level signal to the bright LED, it won’t be on.

Specification

Operating Voltage: 3.3V DC

Supply mode: Crowbits Power Module

Dimensions: 31.5(L)*24.5(W)*13(H) mm
