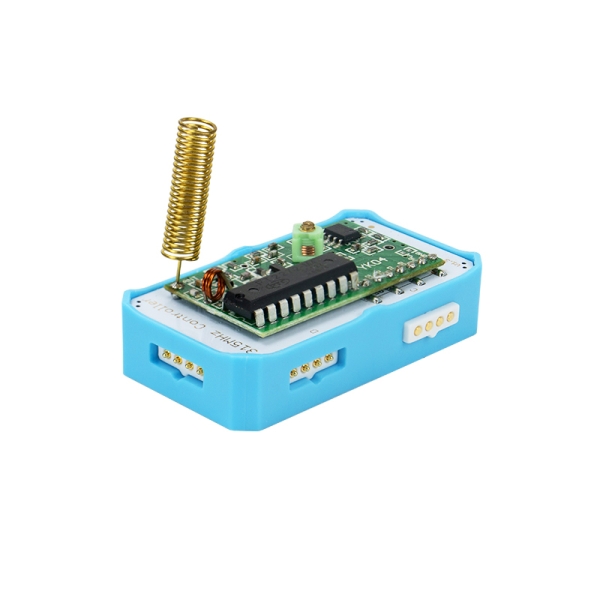

Crowbits-315MHz Controller

What is the Crowbits-315MHz Controller?

The 315MHz controller is suitable for wireless control, you can use the remote controller to control all the four outputs.

How does it work?

The 315MHz controller consists of an RF remote controller and a simple RF receiver, it is based on the principle of wireless coding and decoding. The RF remote controller sends the encoded information to the RF receiver, the receiver module will parse the encoded information and then outputs a logic high-level signal.

1. There is no programming required, just power for it and press the button on the remote controller, then you can control the output module. The remote already comes pre-programmed.

Use cases

It could be a convenient way to remote control the output modules with this 315MHz, such as press the button A, the LED will be on. This must be very interesting.

Tips

1. The distance of the wireless connectivity is about 10m.

2. The A, B, C, D keys on the remote controller respectively controls the A, B, C, D output ports of the RF receiver.

3. Eject the antenna to ensure longer transmission distance while using the remote control.

Specification

• Operating Voltage: 3.3V DC
• Supply mode: Crowbits Power Module
• Dimensions: 56(L)*31(W)*13(H)mm
