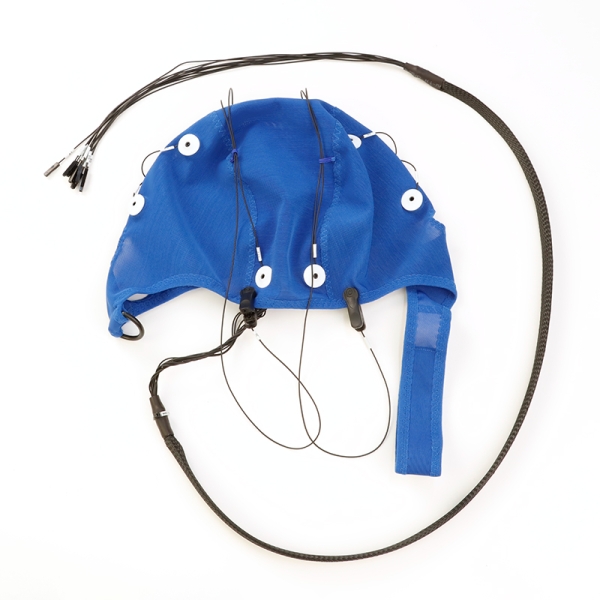

EEG Cap Kit for Wet Electrode Measurements for 8 channels (Fp1, Fp2, T3, C3, C4, T4, O1, O2)
All necessary to measure EEG via wet electrodes in one kit (Suitable for EEG devices):
- Cap is nylon (L size);
- 8 Dry electrodes is Ag/AgCl with 8 cables and connectors for PiEEG device (2.54mm pin pitch);
- 2 ear clip electrodes (2.54mm pin pitch).
This Cap kit are accompanied by 8 cables and connectors compatible with the PiEEG device, featuring a 2.54mm pin pitch. Additionally, the kit includes two ear clip electrodes, also with a 2.54mm pin pitch. This configuration is aimed at facilitating reliable and efficient EEG measurements by utilizing dry electrodes, which eliminate the need for conductive gels, thus simplifying the setup and application process. The use of Ag/AgCl electrodes is well-regarded for their ability to provide low impedance and high signal quality, making them suitable for various EEG applications
(Gel is not included, not medical)
Technical details
Instruction on how to use it via the next link (GitHub)
Video review
