CANBed - Arduino Compatible CAN Bus Dev Kit

CAN Bus is a widely-used protocol in the industry because of its long communication distance, medium communication speed, and high reliability. With our tiny development board, you can easily create a CAN-BUS project. Unlike our previously released CAN-BUS shield series, the CANBed - Arduino-compatible CAN Bus Development Kit has an Atmega32U4 chip built-in, eliminating the need for additional jump wires to another Arduino board - it is an Arduino board itself!

The Atmega32U4 chip on this board provides a wealth of pin resources. There are 18 pins based on the core chipset on the board, including digital pins, analog pins, UART, and I2C interface. Additionally, this CANBed uses the MCP2515 CAN Bus controller with SPI interface and MCP2551 to achieve CAN-Bus capability. There are also two types of CAN Bus interfaces available to meet various needs, a sub-D9 connector and a terminal block interface. These will accommodate all your connection requirements.

This CAN-Bus development board is fully compatible with the Arduino IDE. The Arduino CAN-Bus library helps to save time on your CAN project.

This product has been certified by CE and FCC, and you can download the certificate in the Preferences section.

We have just released a new CANBed with an aluminum alloy case. If your product needs a casing, we recommend you check out this new product, shown below:

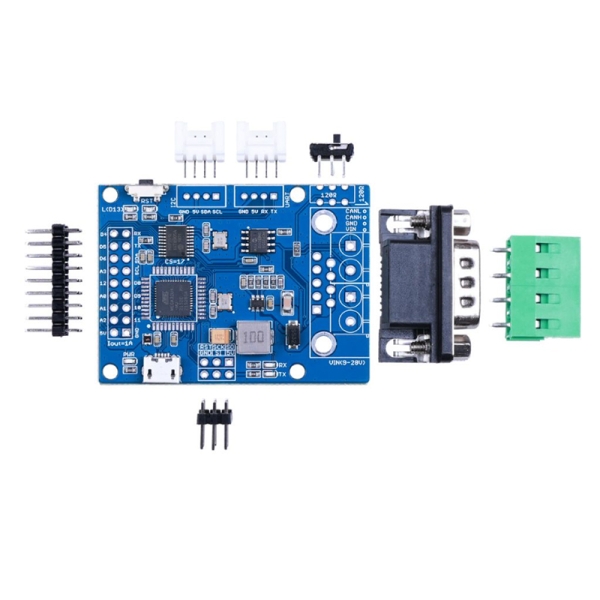

Part List:

• 1. CANBed PCBA x1
• 2. Sub-D connector x1
• 3. 4-pin Terminal x1
• 4. HY2.0 4-pin Connector x2
• 5. 9x2 2.54 Header x1
• 6. 3x2 2.54 Header x1
• 7. 6-pin switch x1

Features:

• Atmega32U4 microcontroller with Arduino Leonardo bootloader on the board
• MCP2515 CAN Bus controller and MCP2551 CAN Bus transceiver
• OBD-II and CAN standard pinout options available at the Sub-D connector
• Compatibility with the Arduino IDE

Specifications:

• Microcontroller: Atmega32U4 with Arduino Leonardo bootloader
• Clock speed: 16 MHz
• Flash memory: 32 KB
• SRAM: 2.5 KB
• EEPROM: 1 KB
• Operating voltage for CAN-BUS: 9-28V
• Operating voltage for MicroUSB: 5V
• Input interface: Sub-D connector

Pinouts:

ECCN/HTS:

• HSCODE: 8543709990
• USHSCODE: 8517620090

Peferences:

• CANBed Docs
• Arduino Library
• Schematic of CANBed
• CE Certification
• FCC Cerfitication
• European Declaration of Conformity

Certification

This product has been certified by CE and FCC, and you can download the certificate in the Preferences section.
