The best single board computer (SBC) is undoubtedly the Raspberry Pi, but due to chip and electronic component supply chain issues, it's sometimes hard for makers to get the Raspberry product they want, but there are a variety of alternatives to the Raspberry Pi that offer unique features and capabilities.
These alternatives can be used for everything from AI and VR support to industrial use or simply for smaller projects. With no new version of the Raspberry Pi expected until 2023, now is a great time to explore these options.

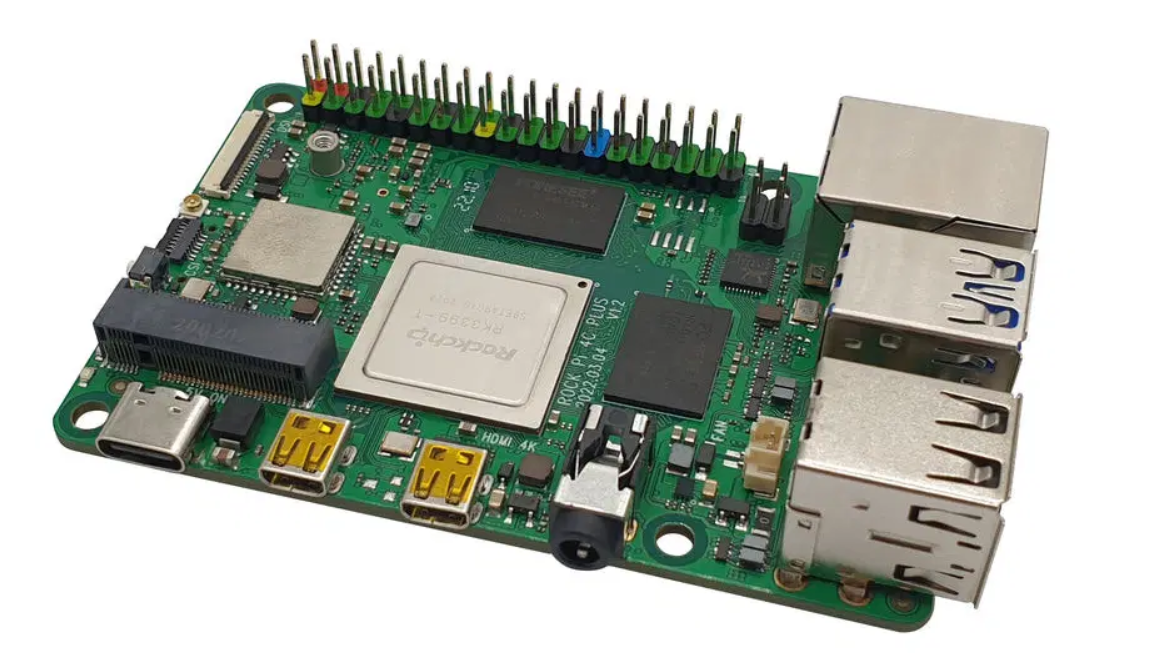

The Rock Pi 4 Model C is very similar to the Raspberry Pi 4 Model B, with a 40-pin GPIO header that is almost fully compatible with Raspberry Pi products. It has a Rockchip RK3399-T SoC with more cores than the Raspberry Pi, but only two are high-performance Cortex-A72 cores. It has two USB 3.0 ports, two USB 2.0 ports, a 3.5mm audio jack, MIPI DSI and CSI ports, and an onboard radio for dual-band Wi-Fi 5 and Bluetooth 5.0, with a Gigabit Ethernet port for wired networking. Storage options include a high-speed eMMC card or a microSD card, both with a maximum capacity of 128GB. The board has two micro-HDMI ports, but only one supports 4K60 output. There are no M.2 slots for SATA or NVMe drives.
SBC |
Rock Pi 4 Model C+ |
Processor |
Rockchip RK3399-T (2x Arm Cortex-A72 at 1.5GHz, 4x Cortex-A53 at 1GHz) |
GPU |
Arm Mali T860MP4 |
Memory |
2/4 GB LPDDR4 |
Inbuilt Storate |
None |
Expandable Memory |
eMMC (up to 128GB), microSD (up to 128GB) |
Networking & Connectivity |
2.4/5 GHz Wi-Fi 5, Bluetooth 5.0, Gigabit Ethernet |
I/O |
2x micro-HDMI 2.0, USB 3.0 OTG, USB 3.0 host, 2x USB 2.0 host, 3.5mm audio/mic, DSI, CSI, RTC, 40-pin GPIO, fan |
Power |
5V 3A via USB Type-C or GPIO, Power-over-Ethernet (PoE) with optional HAT |
A few outstanding features make this board stand out for DIY electronics hobbyists, especially the color-coded GPIO headers that make it easy for makers to know which pin header is which. With an excellent processor and the 16GB eMMC speed, the Asus Tinker Board offers a strong capacity to help you accomplish a lot of DIY electronics projects.
Processor |
Rockchip Quad-Core RK3288 1.8GHz |
Graphics |
Arm Mali-T764 GPU |
RAM |
2GB LPDDR3 dual-channel |
Speed |
16GB eMMC |
Bandwidth |
802.11 b/g/n |
Bluetooth |
V4.0 + EDR |
Pros |
Color-coded GPIO for ease of use Packed with features Great finish |
Cons |
Pricy |

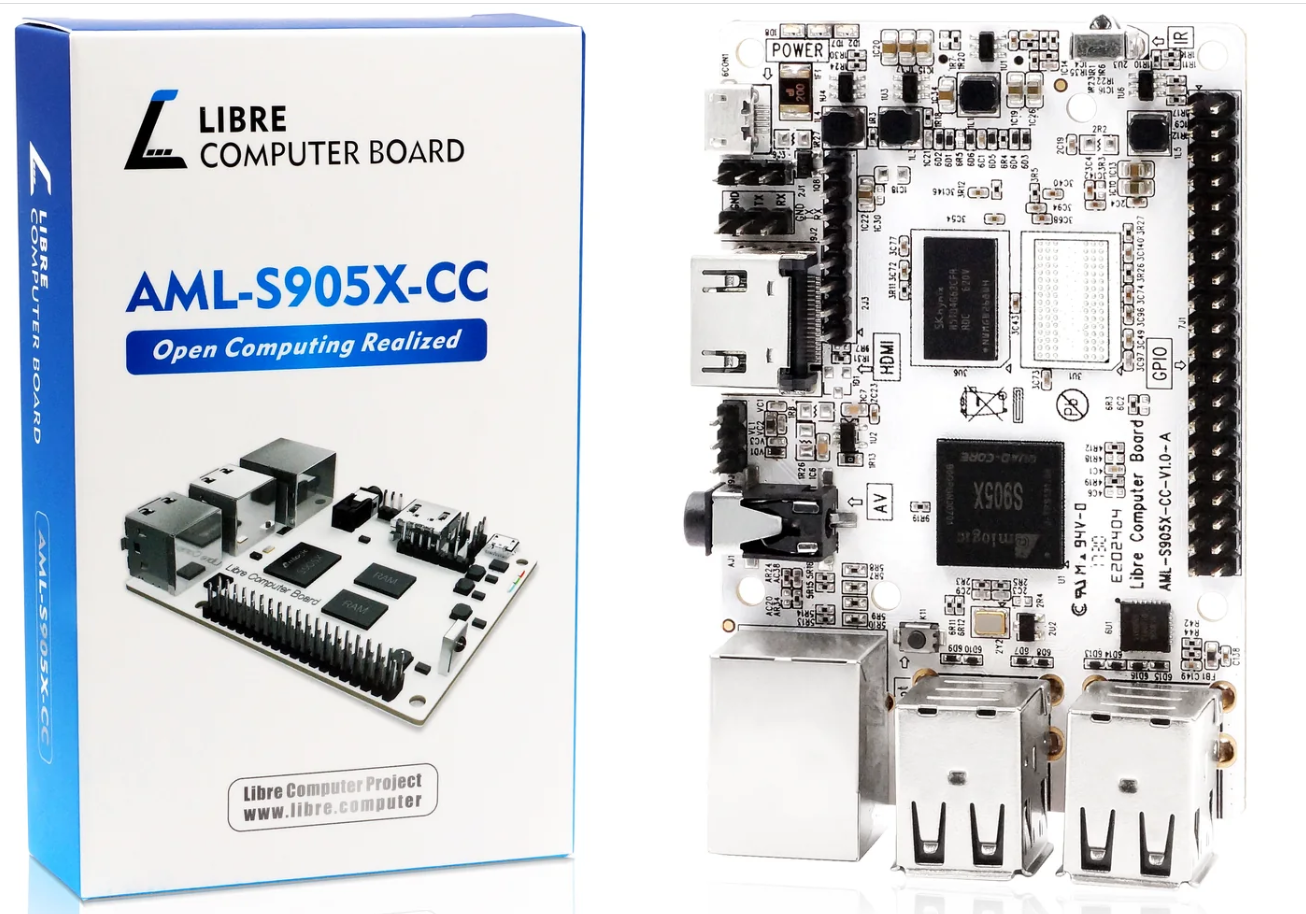

As a reliable single-board computer (SBC), the Libre Le Potato is reliable, cost-effective, and packs a punch. For makers concerned about the potential high investment in an SBC, the Le Potato is definitely a good choice, and its storage capacity is infinitely expandable with MicroSD cards, making it an excellent choice for heavy users. While it may not break any speed records, this board offers a robust set of features.
Processor |
Amlogic S905X SoC |
Connectivity |
4x USB 2.0 Type A |
Graphics |
Mali-450 GPU |
RAM |
Up to 2GB DDR3 SDRAM |
Ports |
HDMI 2.0 |
Speed |
100Mb Fast Ethernet |
Storage expansion |
MicroSD Card Slot |
Interface |
eMMC Interface |
pros |
Cost-effective, relibale, Well made with detailed instruction |
cons |
Not too powerful |

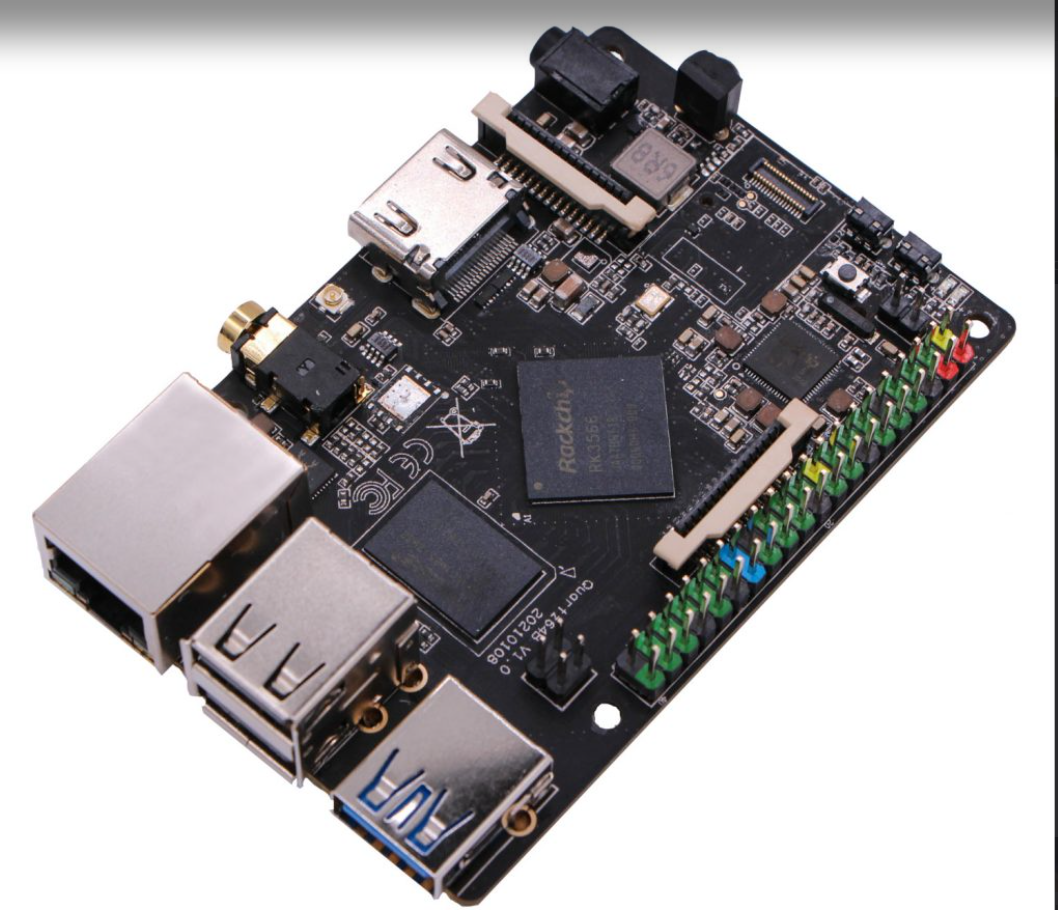

The Pine64 Quartz64 has slightly lower specs than its competitors, using a Rockchip RK3566 system-on-chip similar to the Raspberry Pi 3 Model B+. However, it offers 4GB of memory as standard, with 2GB and 8GB variants planned. The Quartz64 has a strong community and supports multiple operating systems, and has an M.2 slot for high-speed storage, with the option to connect PCI Express devices. It has a single HDMI port with 4K video support, a MIPI DSI port for a second display, and a CSI port for a camera, albeit with a maximum resolution of five megapixels. The only drawback is the use of a 3.5mm barrel jack for power, which is less convenient than micro-USB or USB Type-C.
SBC |
Pine64 Quartz64 Model B |
Processor |
Rockchip RK3566 (4x Arm Cortex-A55 at 2GHz) |
GPU |
Arm Mali G52 MP2 |
Memory |
2/4/8 GB LPDDR4 |
Inbuilt Storate |
128 MB SPI flash |
Expandable Storage |
eMMC (up to 128GB), microSD, M.2 SSD |
Networking & Connectivity |
Networking & Connectivity |
I/O |
HDMI 2.0, USB 3.0 host, 2x USB 2.0 host, M.2 PCIe Gen. 2, 3.5mm audio/mic, DSI, CSI, RTC port, 40-pin GPIO |
Power |
5V 3A via 3.5mm barrel jack or GPIO, Power-over-Ethernet (PoE) with optional HAT |

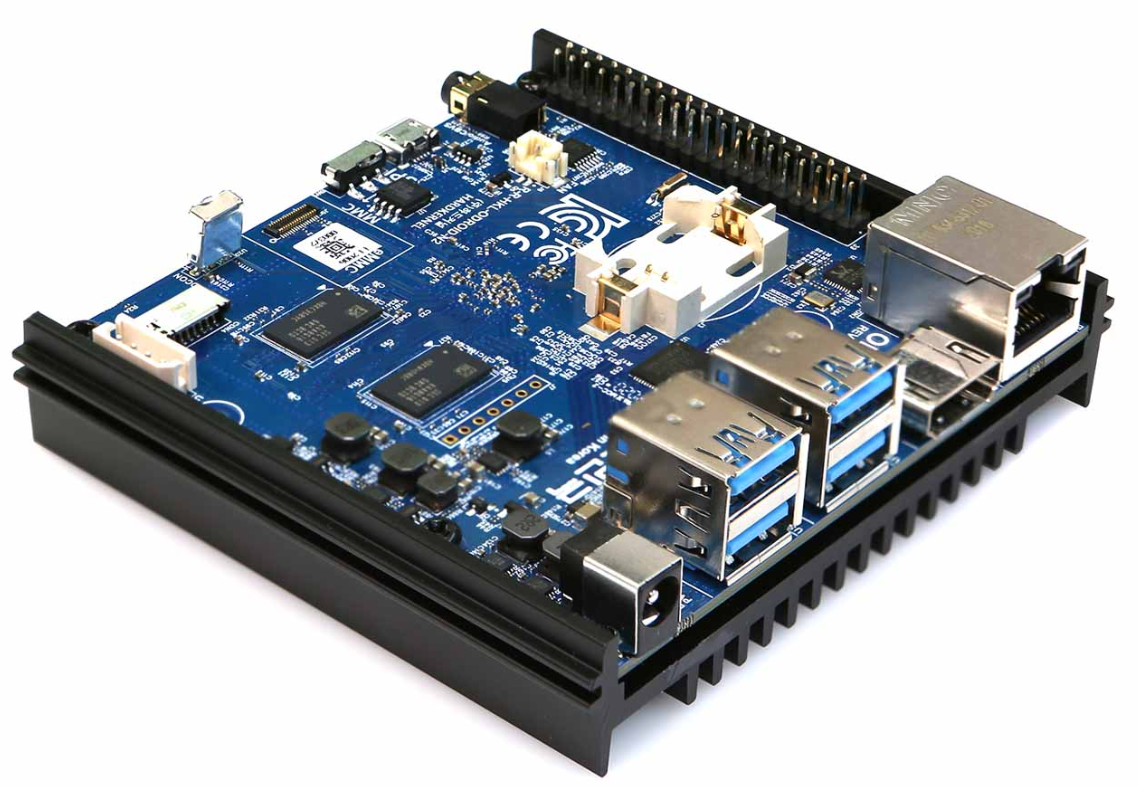

The Odriod N2+ is an excellent choice for advanced makers looking for a powerful and energy-efficient single-board computer to replace their desktop. It offers exceptional connectivity and can run the Petitboot application, making it a great option for those who need more performance than a regular SBC. It also supports multiple versions of Linux, including the latest Ubuntu, and is compatible with AndroidOS.
SBC |
Hardkernel Odroid-N2L |
Processor |
Amlogic S922X -- 4x Cortex-A73 @ 2.2GHz, 2x Cortex-A53 @ 1.9GHz |
GPU |
Mali-G52 GPU |
Memory |
2GB or 4GB DDR4 |
Features |
8MB SPI flash with boot select switch and Petitboot app |
Interface |
eMMC socket with optional 8GB to 128GB |
Ports |
Gigabit Ethernet port, HDMI 2.1 port for up to 4K@60Hz |
Connectivity |
4x USB 3.0 ports |
It's so hard to buy Raspberry Pi products these days because of the global supply chain shortages, but there are a lot of great products on the market that excel at maker projects as well as what Raspberry Pi products do. Select the recommended products you like.
