CrowPanel Advance: What Sets It Apart from the Basic Series

For quite a period, Elecrow’s HMI displays have been a popular choice for a range of applications – from industrial automation to smart home control. With the success of the original Basic series, Elecrow has now launched the CrowPanel Advance series, which pushes the boundaries of performance, connectivity, and versatility. So let’s explore the key enhancements in the Advance Series and explain why it stands out from the Basic version.

Revisiting the CrowPanel Basic Series

The Basic Series has established an excellent reputation for its simplicity, reliability, and ease of use. Powered by earlier iterations of the ESP32 chip, they were designed to provide great performance for many IoT applications.

However, despite their many strengths, the Basic Series had certain limitations. First, the fixed wireless module meant that users had to work within the constraints of a single communication protocol. Also, while the performance was good enough for various projects, the processing power and display technology could be further enhanced to meet the demands of more sophisticated applications.

Introducing the CrowPanel Advance Series

Built on the foundation of the Basic Series, the CrowPanel Advance Series has been developed to meet the evolving requirements of modern systems. The Advance Series has an ESP32-S3 chip which features a dual-core Xtensa 32-bit LX7 architecture at 240MHz.

Complemented by 512KB of SRAM, 8MB of PSRAM, and 16MB of Flash memory, it can easily handle data-intensive applications and complex real-time operations.

Superior Display Technology

Display technology is another area where Advance Series shines. It features high-resolution IPS panels available in sizes from 2.8 inches to 7 inches.

One of the standout features is the 7-inch model’s 800x480 resolution IPS display which delivers crisp and vibrant visuals and a wide 178-degree viewing angle. It provides clarity and color consistency even when viewed from extreme angles, which can be a critical advantage in many practical applications.

This series also incorporates capacitive touch panels that provide smooth and responsive user interaction. It is a notable improvement compared to some Basic models that rely on resistive touch technology.

Integrated AI Features

The Advance Series is equipped with a high-performance microphone and speaker, enabling voice recognition and speech synthesis. Users can interact with the device naturally through voice commands, making hands-free operation effortless. These advanced AI capabilities distinguish the Advance Series from the Basic Series, which does not include such features.

Hardware Support

1.  Powerful Processing – The Advance HMI is powered by the ESP32-S3, which supports wireless connectivity—essential for accessing cloud-based AI.

2.  Built-in Audio Module – With an integrated microphone and speaker, the device seamlessly converts between manual input, text output, voice input, and speech output.

3.  Multiple Screen Sizes – Available in six screen size options, the Advance HMI enhances AI interaction by displaying visual cues. For example, an expressive icon can appear when AI is speaking or listening, making interactions more engaging.

4.  Expandable Interfaces – Additional ports allow users to customize their AI experience with extended functionality.

Software Support

1.  Comprehensive AI Integration – Detailed code is provided for voice recognition, integration with major AI models, and speech synthesis. The code is available in video tutorials on Elecrow's YouTube channel, which will be regularly updated. Stay tuned!

2.  Optimized Performance – Worried about the ESP32-S3’s processing limits? If real-time AI tasks like speech synthesis cause delays, our software enables your computer to act as a private server. This shifts processing to your PC, ensuring smooth, uninterrupted AI voice interactions.

Replaceable Wireless Module

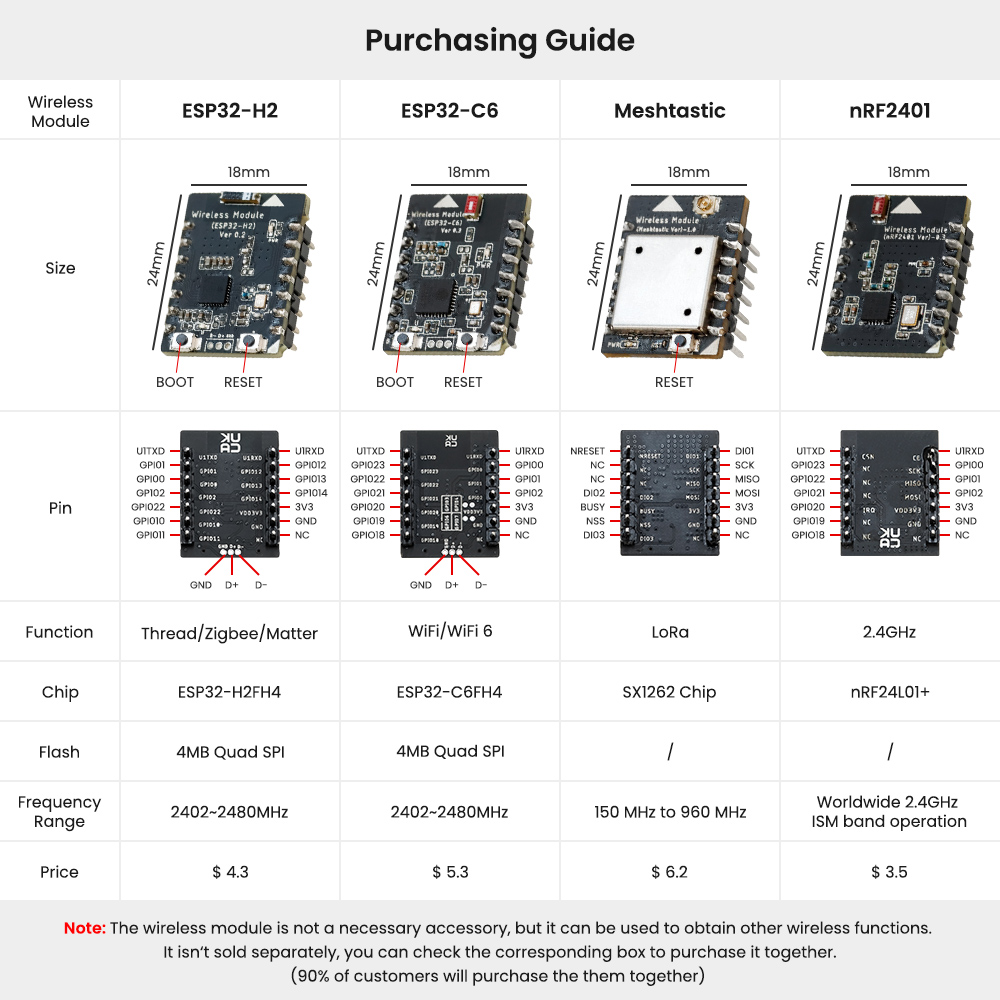

This series's most revolutionary feature is its replaceable wireless module design. While the wireless communication in the Basic Series was permanently fixed, the Advance Series allows users to swap out the wireless module as needed.

This design means that one display can be tailored to different application scenarios without the need for an entirely new device. For example, a user might opt for a LoRa module if a project requires long-range, low-power communication.

On the other hand, if high-speed data transfer is essential, users can switch to a Wi-Fi 6 module. Developers and system integrators can now future-proof their investments by simply upgrading the wireless module rather than replacing the entire display.

Application Scenarios for the Replaceable Wireless Module

The replaceable wireless module in this series opens up endless possibilities for adapting the display to different real-world applications. Since it supports various communication protocols, such as LoRa, Zigbee, and Matter, you can tailor the device to your specific needs. For example:

● Smart Agriculture: Thanks to its ability to cover long distances while consuming minimal power, LoRa is an ideal protocol for smart agriculture. It is a perfect choice for monitoring soil moisture, weather conditions, or livestock tracking across vast fields.

● Smart Homes: If you opt for smart home automation, protocols like Wi-Fi or Zigbee would be a good choice since they provide high-speed and reliable connectivity. They would allow you to easily control home systems like lighting, HVAC, and security systems, and ensure a seamless integration with existing devices.

● Industrial IoT: Matter protocol ensures interoperability and secure communication in industrial settings where multi-vendor compatibility is essential. This makes the CrowPanel Advance Series highly suitable for monitoring and controlling industrial machinery and processes.

● Remote Monitoring and Logistics: LoRa is a low-power protocol with long-range capabilities, which makes it an excellent choice for applications like environmental monitoring, asset tracking, or warehouse management.

● Educational and Research Applications: Students and researchers can experiment with advanced UI designs, integrate voice commands, and explore different wireless technologies without being limited by hardware constraints.

This modular approach of the Advance Series not only enhances the device’s versatility but also ensures future-proofing by allowing upgrades to newer wireless standards as they emerge. Customers can swap modules to meet evolving needs without the expense or inconvenience of replacing the entire unit.

Versatile Development Environment

Like its predecessor, the Advance Series is compatible with the Arduino IDE and Espressif IDF. However, it also goes further by supporting PlatformIO and MicroPython.

Moreover, this series is fully compatible with the LVGL graphics library — a popular open-source tool for designing modern and interactive user interfaces. With LVGL, developers can create custom UIs that are both visually appealing and highly responsive.

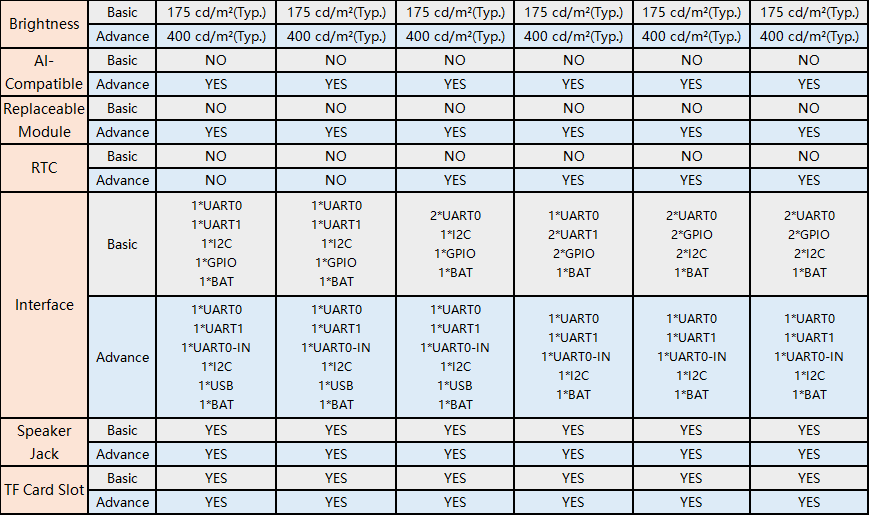

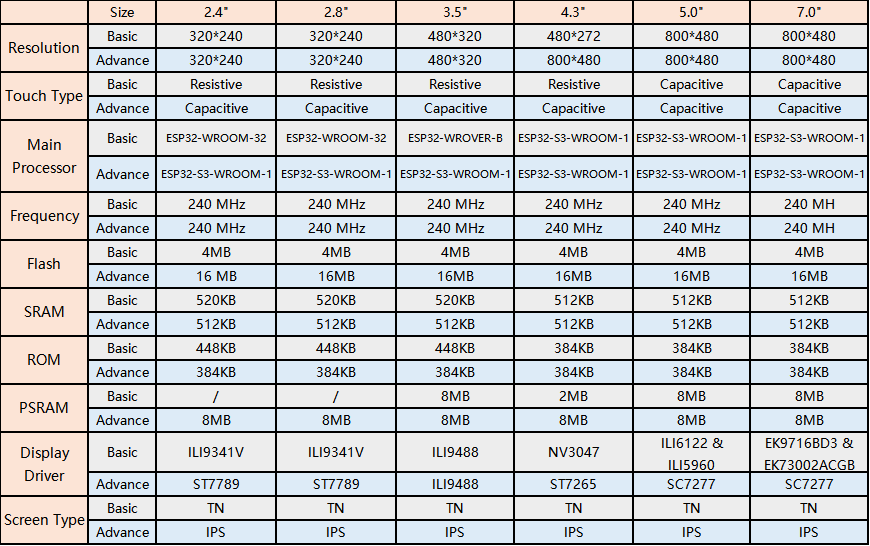

The Comparison Table Between CrowPanel Advance and Its Basic Version

Conclusion

This transition from the Basic Series makes a significant leap forward in HMI display technology. By addressing the limitations of the Basic Series, Elecrow has created a display that is not only versatile but also future-proof.

For those looking for a display that can adapt to evolving communication protocols and support advanced interactions through voice control, the CrowPanel Advance Series is a clear standout.

In summary, if your projects require enhanced processing power, superior display quality, and the flexibility to switch between various wireless communication standards, the CrowPanel Advance Series offers a compelling solution that truly sets it apart from its Basic predecessor.
