Banana Pi M5 4GB RAM + 16GB eMMC Quad-Core 64 bit for AIOT

Rating:
93 % of 100
$89.00
Availability: In stock
SKU
RPB41509O
Weight
80g

【High-performance processor】Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) Processor,Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)

【Rich Interfaces】4 x USB 3.0 ports; 1 GbE Gigabit Ethernet port; 1 HDMI output;

【4K chip】Adopts a quad-core 64-bit ARM-A55 architecture CPU chip, integrated G31 graphics processor, and supports 4K video decoding and 4K video output.

【Supports multiple system operations】Supports multiple operating systems, such as Android, Raspbian and Linux systems.

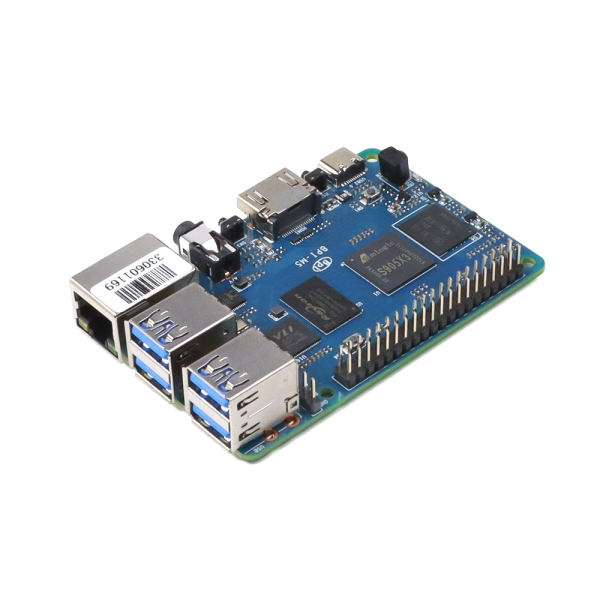

Banana Pi M5 minicomputer equipped with 4 GB RAM and 16 GB eMMC memory. The board is based on a quad-core processor Amlogic S905X, ARM Cortex-A55 Quad-Core. Banana Pi M5 has interfaces such as 4 x USB, Ethernet port 10 / 100 / 1000 Mbps, HDMI-compatible port, USB type C for power, and a 3.5 mm jack connector, among others.

Features

  • Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) Processor

  • Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)

  • Support 4GB LPDDR4 and 16G eMMC flash

  • 4 USB 3.0 port,1GbE LAN port



Specifications

  • CPU: Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)

  • GPU: Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)

  • Memory: 4 GB LPDDR4

  • Storage: MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB

  • Network: 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle

  • Video Output(s): 1 x HD 2.0 (up to 4K@60Hz with HDR, CEC, EDID)

  • Audio Output(s): 3.5mm jack and 1 x HD digital output

  • USB ports: USB 3.0 PORT (x4)

  • GPIO: 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND)

  • GPIO pins can be used for UART, I2C, SPI or PWM

  • Switches: Reset, Power and U-boot

  • LED: Power Status and Activity status

  • Power Source: 5 volt @3A via Micro USB (TYPE C)

  • Size & Weight: 92x60mm, 48g

  • OS: Android and Linux



Banana Pi M5 VS Raspberry P2B


BASIC INFORMATION
  Raspberry Pi 3 vs 3 B+ Banana Pi M4 1GB RAM
Model Raspberry P2B Banana Pi M5
Release 2019 r. 2021 r.
TECHNICAL SPECIFICATIONS
Core Quad-Core ARM Cortex-A72 Quad-Core ARM Cortex-A55
Operating Systems Linux Raspbian
Windows 10 loT
Linux
Android
Clocking 1.5 GHz 2.0 GHz
RAM 2 / 4 / 8 GB LPDDR4 4 GB DDR4
Memory microSD card microSD card
16 GB eMMC memory built-in
GPIO socket Connector 40-pin (2x20 pin)
2,54 mm pitch
40-pin connector (2x20 pins)
2.54 mm pitch
Power supply 5.1 V / 3 A
via USB Type C
5 V / 3 A via USB type C
Board dimensions 85 x 56 x 17 mm 92 x 60 mm
INTERFACES
USB interface 2x USB 2.0 - type A socket
2x USB 3.0 - type A socket
4x USB 3.0 - type A socket
Network interface Ethernet 100/1000 Mbps port 10/100 / 1000 Mbps Ethernet port
WiFi interface Dual Band 2.4 GHz and 5 GHz
802.11 b/g/n/ac
-
Bluetooth-compatibility Low Energy, BLE 5 -
Camera CSI socket -
Touch screen display DSI socket -
Video 2 x micro HDMI-compatible interface HD 4K
Communication UART, SPI, I2C, GPIO UART, SPI, I2C, GPIO, I2S
