PiEEG is an Arduino UNO R4 WiFi shiled i shield that measures biosignals such as those used in electroencephalography (EEG), electromyography (EMG), and electrocardiography (ECG).

Arduino UNO R4 Wifi is not included in this product.

Descriptions:

The 8-channel shield for Arduino UNO R4 WiFi that measures EEG, EMG, and ECG bio-signals to provide an Easy way to the neuroscience world.

ardEEG is an Arduino UNO R4 WiFi shield that measures biosignals such as those used in electroencephalography (EEG), electromyography (EMG), and electrocardiography (ECG). PiEEG is versatile, easy to work with, and compatible with different types of electrodes.

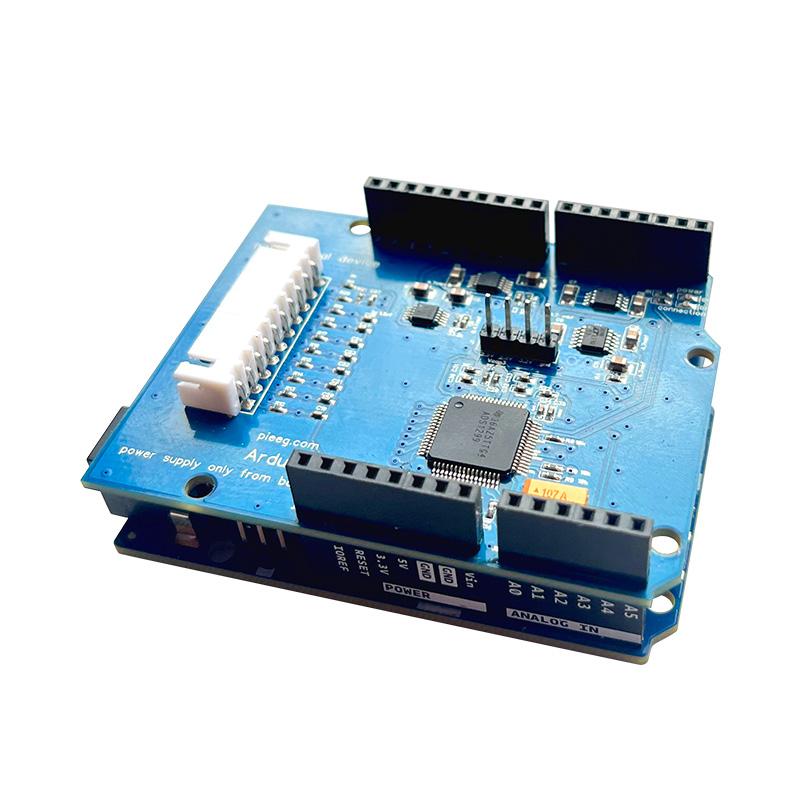

ardEEG for Arduino UNO R4 Wifi

Features:

Compatible with Arduino UNO R4 WiFi
8 channels for connecting wet or dry electrodes
Data transfer via SPI protocol with a frequency from 250 SPS to 16 kSPS and a resolution of 24 bits per channel
Programmable signal gain: 1, 2, 4, 6, 8, 12, 24
Ability to measure impedance
LEDs for power indication and ADS1299 connection indication
Easy programming with Python and Arduino IDE

Wiki & External links

https://github.com/Ildaron/ardEEG

ardEEG is not a medical device, please read before you start to use it https://pieeg.com/liability/

Reviews

Write Your Own Review

About Designer

PiEEG

United Kingdom

PiEEG is an open source Raspberry Pi shield that measures biosignals such as those used in electroencephalography (EEG), electromyography (EMG), and electrocardiography (ECG). PiEEG is versatile, easy to work with, and compatible with different types of electrodes. Best of all, it was designed to be usable by anyone. Applications include gaming, entertainment, sports, health, meditation, and more.
