AC Current Measurement Module - 50A Digital Output

was $15.00 Special Price $7.50
Availability: Out of stock
SKU
SES40287S
Weight
40g

Description

This is a current detection module, it can detect the Short circuit of the AC circuit. The Maximum Current detection of it is 50A and output digital signal.

Features

  • Dimensions: length 48mmX high 30mm wide 40mm
  • Main chip: op amp, transformers
  • Working voltage: DC5V
  • Digital output
  • The current detection range: AC Maximum 50A
  • The current sense resistor resolution parameter settings can be changed
  • The critical point set overcurrent signal is adjustable, set the resolution 0.3A
  • With fixed mounting holes for easy fixed installation

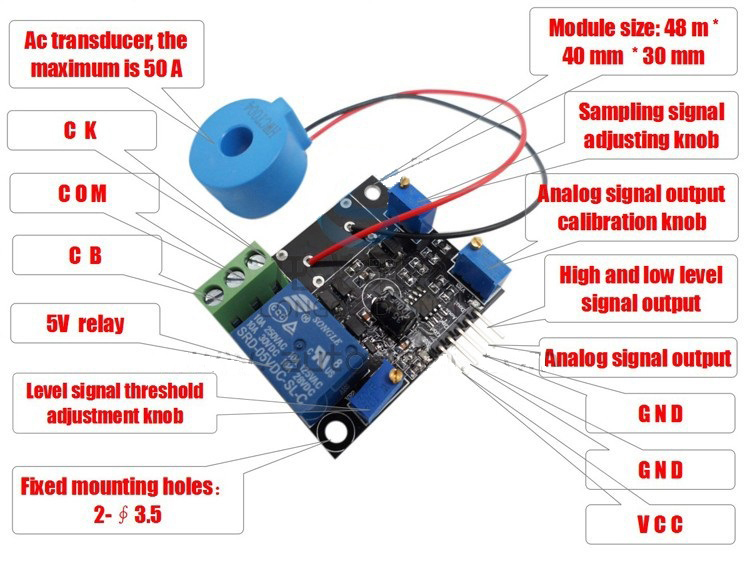

    AC Current Measurement Module hardware overview

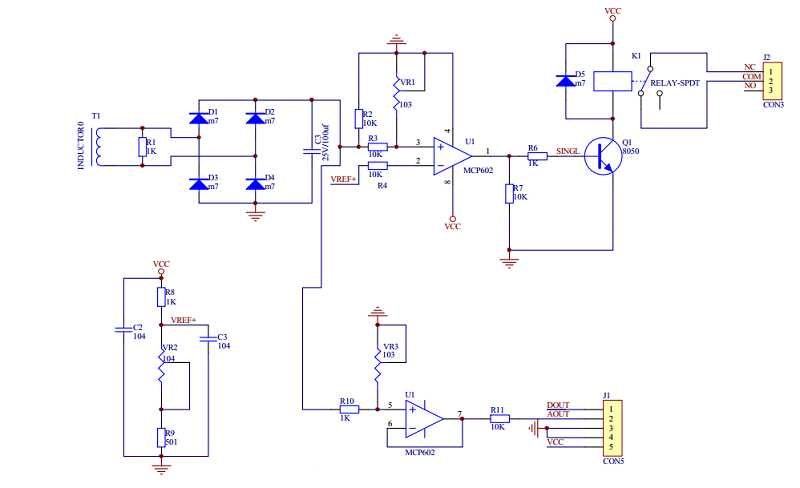

    diagram of AC Current Measurement Module
