4 Channels IR Reflective Sensor

Description

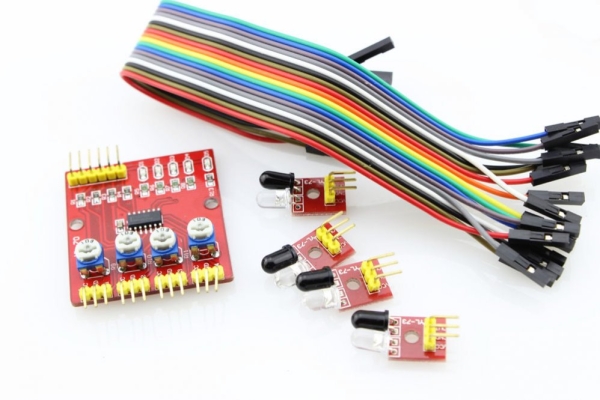

This 4 channels IR reflective sensor includes 4 IR sensors and mainboard to handle all the signals. Each IR reflective sensor is composed of an IR emitter and a receiver, if something is in the measuring range, the sensor would outputs related signal. There are also 4 potentiometers on the mainboard so that the measuring range can be adjusted as you wish.

Application Idea

Smart car;
Line and edge following;
omni-directional detecting;
On-board indicator;

Specification

Supply Voltage: 3.3V ~ 5.5V;
Supply current: >1A recommended;
Measuring range: Adjustable, range from 1mm to 60cm;
Output: TTL 0/1, when the sensor received the reflected infrared, the indicate LED light and output TTL 0, otherwise output the TT L 1, and the LED off.
