4.3 inch DSI display 800*480 IPS touch screen compatible with Raspberry Pi 4B/3B+/3B

Description

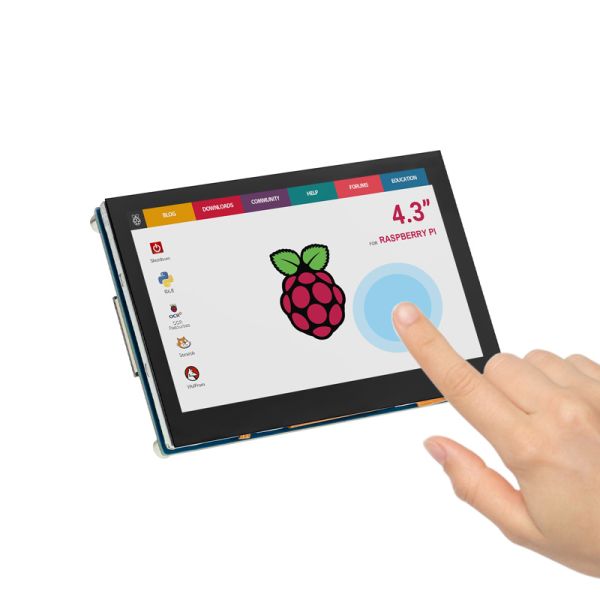

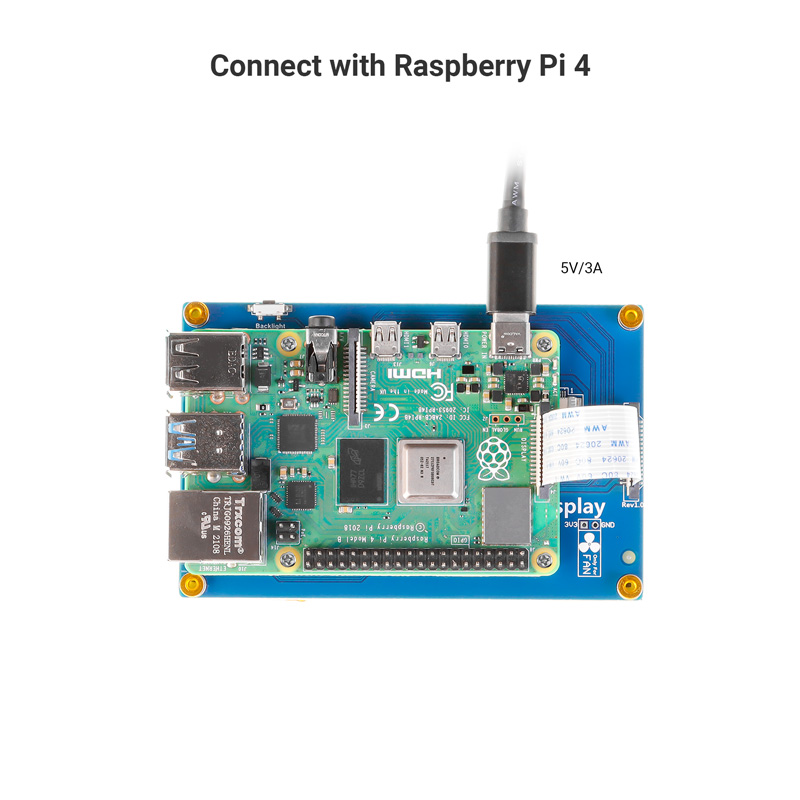

This is a 4.3" Raspberry Pi LCD touchscreen display with a resolution of 800*480 and a display area of 95.04x53.86mm. This product supports Raspberry Pi DSI display interface, the screen has a capacitive touch panel, plug and play, and no installation required Driver. The design on the back of the screen with holes is convenient for installing the Raspberry Pi directly in the product. The display is powered by the Raspberry Pi and does not require an external power supply. In addition, the small screen has a backlight brightness adjustment button, which supports an external PWM signal for backlight brightness adjustment.

Note: If you connect with Raspberry Pi 5,  a 15-pin to 22-pin FPC cable is needed.

OEM customization requests can be discussed for projects.

Feature

• 800x480 resolution, capacitive touch IPS display

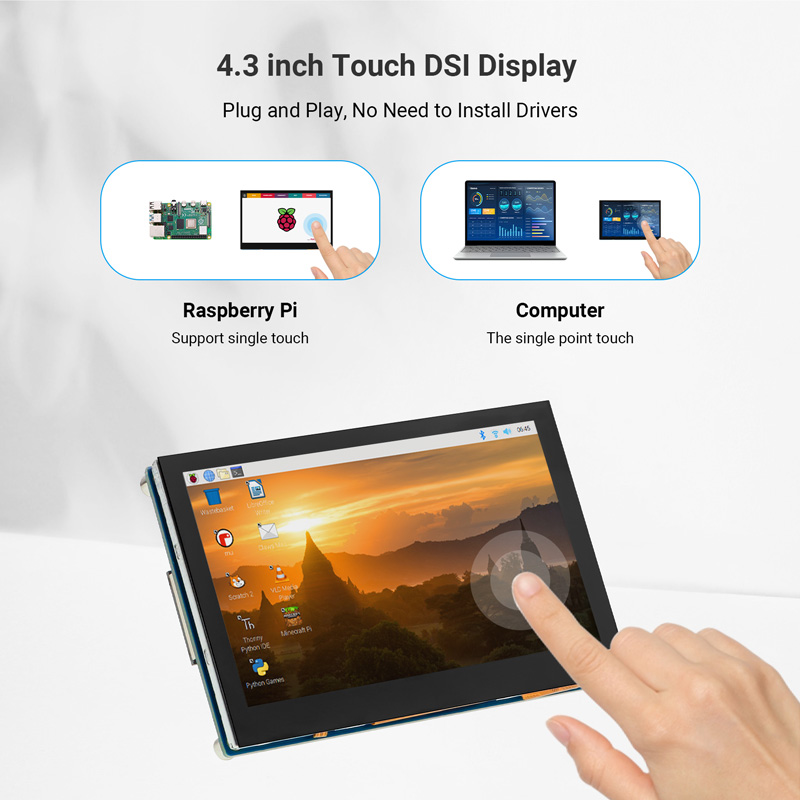

• Raspberry Pi MIPI DSI interface direct output, plug and play, no need to install drivers
• Support official system Raspbian, web browsing supports 2-finger zoom
• Support Ubuntu/Kali/Win10 IoT, single touch；support Retropie

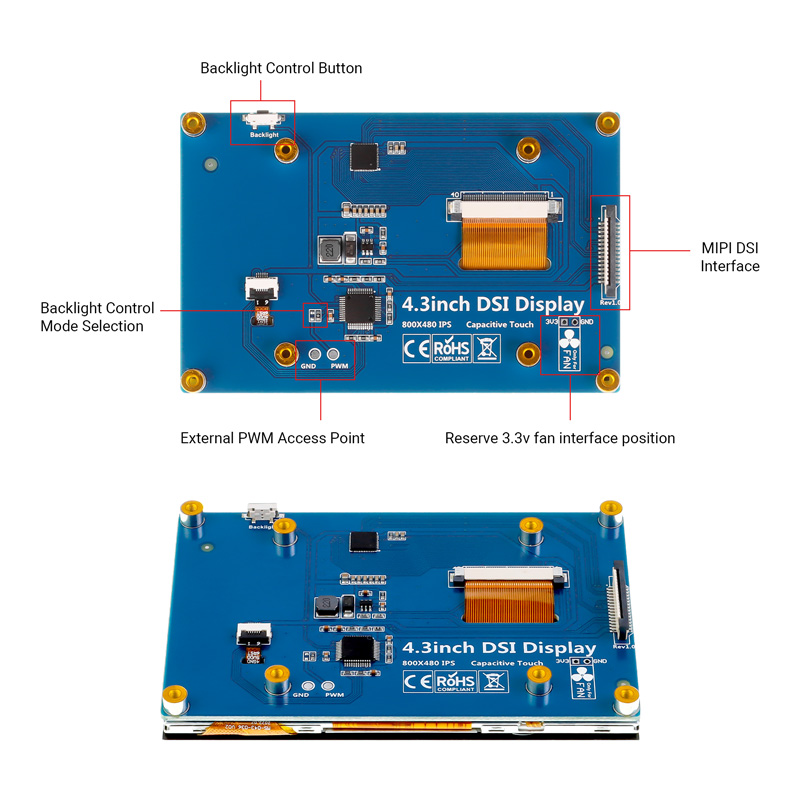

• Comes with a backlight brightness adjustment button
• Support external PWM signal for backlight brightness adjustment

Specification

• Type: IPS TFT
• Size：4.3 inch
• Resolution：800*480
• LCD Interface Type: RGB888 Port
• Module Interface Type: MIPI DSI
• Touch Type: Capacitive Touch Screen
• View Angle: IPS Full view

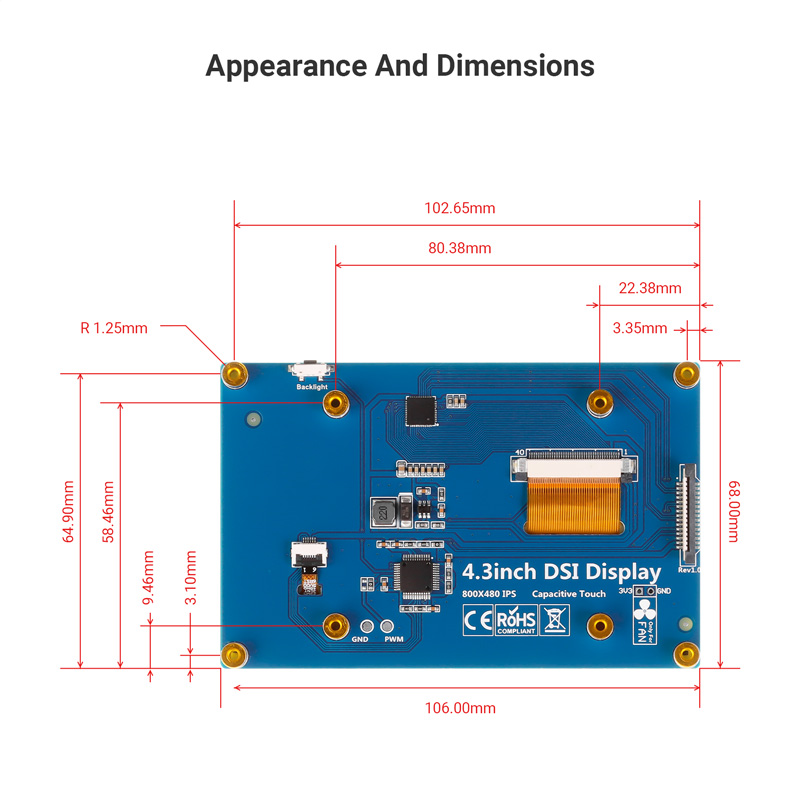

• Active Area: 95.04*53.86mm
• Operating Voltage: 3.3v
• Maximum operating current: 220mA
• Operating temperature: -20℃-70℃
• Appearance Size：0*68mm
• Package Size：134*98*52mm
• Weight：140g

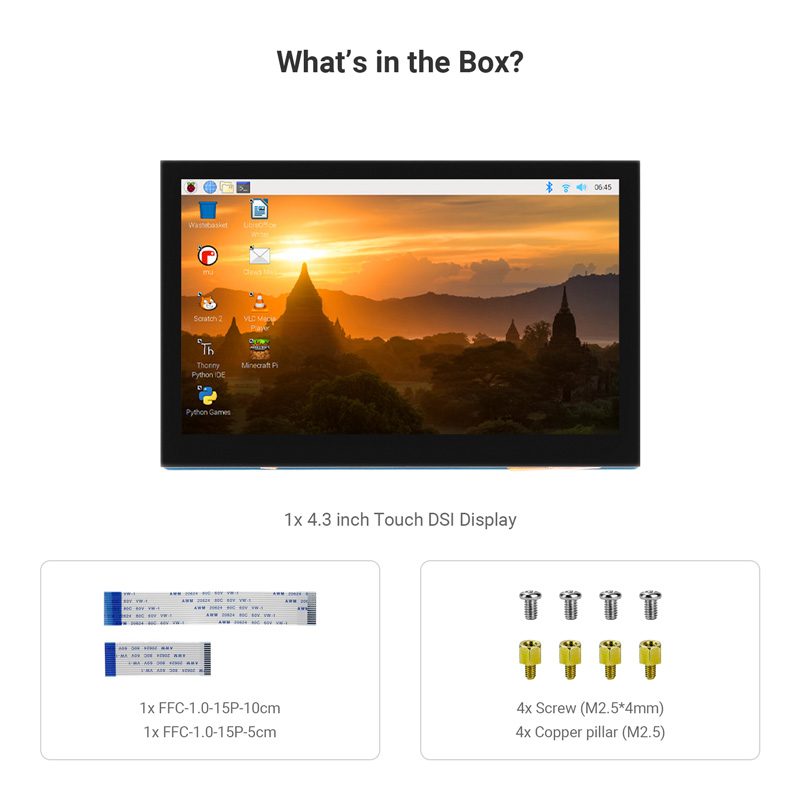

Package List

• 1x 4.3 inch Touch DSI Display
• 1x FFC-1.0-15P-10cm
• 1x FFC-1.0-15P-5cm
• 4x Screw(M2.5)
• 4x Copper pillar(M2.5)
