2.8 inch 320x240 SPI Serial TFT LCD Module Display With Driver IC ILI9341

2.4 inch 320x240 SPI Serial TFT LCD Module Display With Driver IC ILI9341

Rating:
100 % of 100
As low as $5.50
Availability: In stock
Only %1 left
SKU
DLS22024B
Brand
elecrow
Weight
40g
×
ok  Add to cart successfully!
Customers Who View This Item Also Bought
left right

[2.4-inch display] 2.4-inch color screen with 320*240 resolution supports 65K color display and displays rich colors.
[Easy to use] Using the SPI serial interface, only a few IOs are needed to light up the display.
[SD card slot] Experiments can be easily expanded through the SD card slot.
[Stable work for a long time]

Description

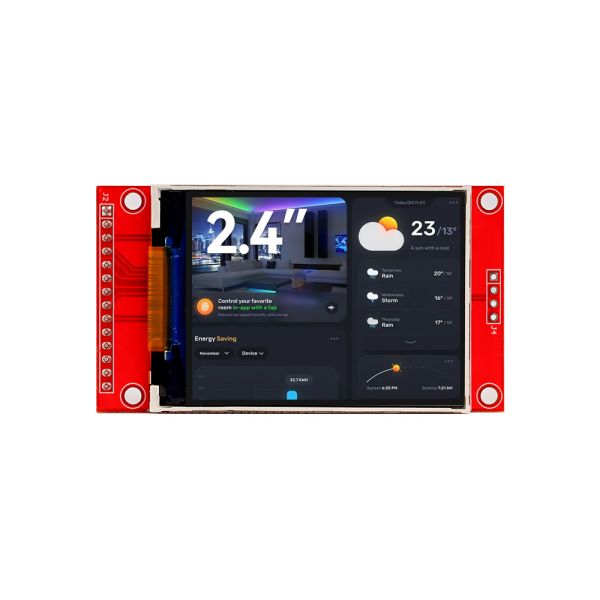

This 2.4-inch color screen module is equipped with 320×240 resolution and 16BIT RGB 65K color display, rich colors, and optional touch function. It uses the SPI serial bus interface, and only a few IOs are needed to light up the display, which is easy to integrate and develop. The module comes with an SD card slot, it is convenient for expanding storage to meet diverse needs. At the same time, it is manufactured in accordance with military-grade process standards to ensure long-term stable operation without fear of complex environments. We also provide a wealth of sample programs and underlying driver technology support to help developers quickly get started and easily realize project development and application.

OEM customization requests can be discussed for projects.

Feature

  • 2.4-inch color screen, resolution of 320*240, supports 16BIT RGB 65K color display, rich display colors;
  • Touch function is optional;
  • Uses the SPI serial bus, only a few IOs are needed to light up the display;
  • With SD card slot;
  • Rich sample programs, providing underlying driver technology support.

applications of 2.4inch SPI module

Specification

Size

2.4 inch

Screen Type

TFT

Resolution

320*240 (Pixel)

Color

RGB 65K color

Driver IC

ILI9341

Interface

4-wire SPI interface

VCC Power Voltage

3.3V~5V

Logic IO Port Voltage

3.3V(TTL)

Operating Temperature

-20℃~60℃

Storage Temperature

-30℃~70℃

Active Area

36.72x48.96(mm)

Module Size

77.18x42.72(mm)



Pin Definition

Number

Pin Label

Description

1

VCC

5V/3.3V power input

2

GND

Ground

3

CS

LCD chip select signal, low level enable

4

RESET

LCD reset signal, low level reset

5

DC/RS

LCD register / data selection signal,

high level: register, low level: data

6

SDI(MOSI)

SPI bus write data signal

7

SCK

SPI bus clock signal

8

LED

Backlight control, high level lighting,

if not controlled, connect 3.3V always bright

9

SDO(MISO)

SPI bus read data signal, if you do not need to the read function, you can not connect it

(The following is the touch screen signal line wiring, if you do not need to touch function or the module itself does not have touch function, you can not connect them)

10

T_CLK

Touch SPI bus clock signal

11

T_CS

Touch screen chip select signal, low level enable

12

T_DIN

Touch SPI bus input

13

T_DO

Touch SPI bus output

14

T_IRQ

Touch screen interrupt signal, low level when touch is detected

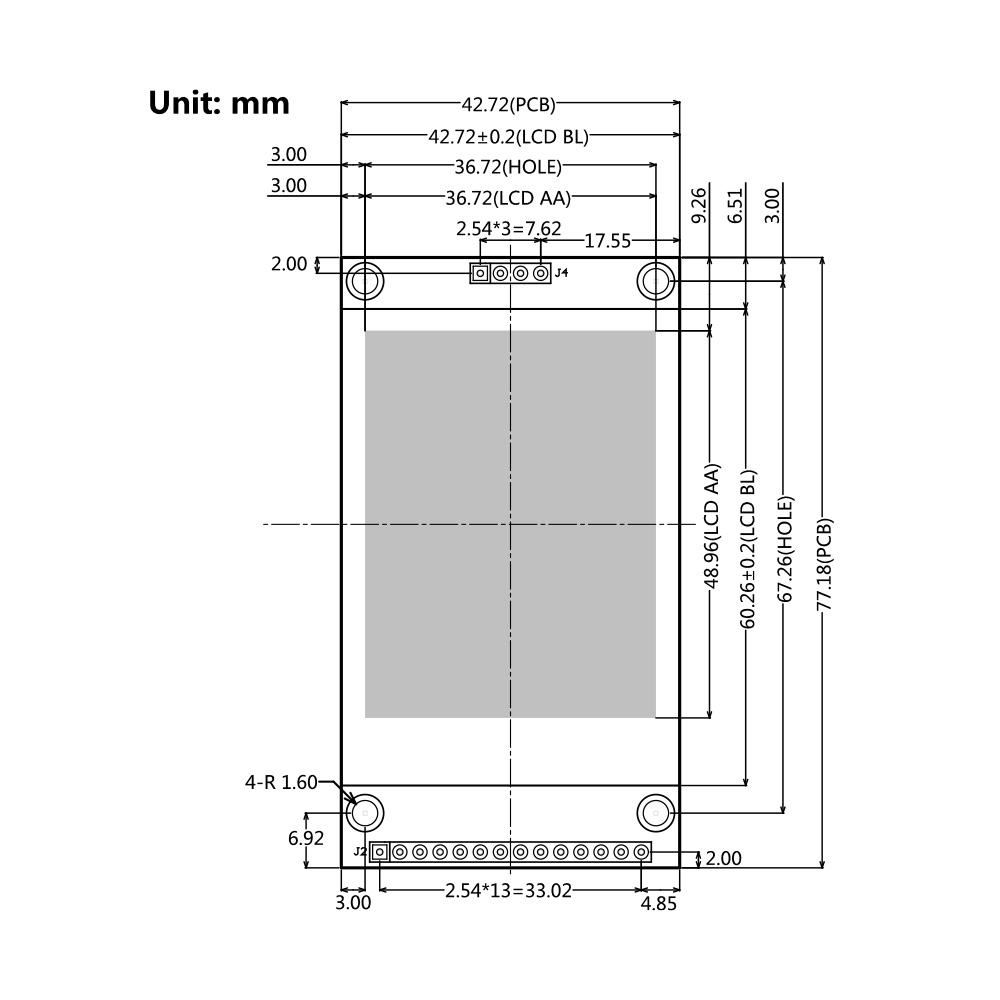

module size of 2.4 inch SPI TFT Module

Package List

  • 1x 2.4 inch SPI TFT Module
