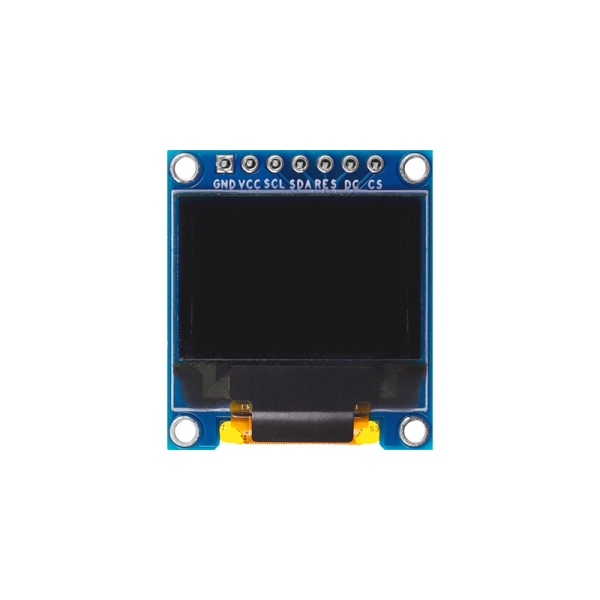

0.95 inch OLED Module 96*64 RGB Display 7pin OLED Module with SSD1331 SPI Port

Description

This is a 0.95 OLED with SSD 1331 SPI interface. OLED (Organic Light Emitting Diode) is a self-luminous technology consisting of multiple layers of thin organic films placed between an anode and a cathode. In contrast to LCD technology, OLED does not require a backlight. OLED has high application potential for almost all types of displays and is considered to be the ultimate technology for next-generation flat-panel displays.

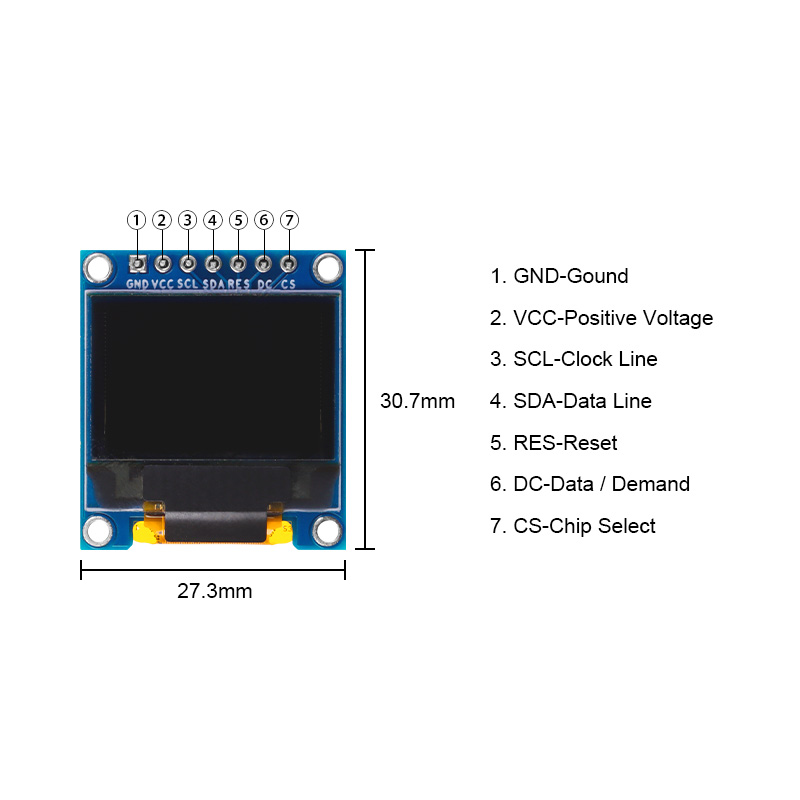

Definition of SPI Connector:

1.GND-Gound

2.VCC-Positive Voltage

3.SCL-Clock Line

4.SDA-Data Line

5.RES-Reset

6.DC-Data/Demand

7.CS-Chip Select

Specification

• Resolution:96*64
• Color: 65536 Colors
• Driver IC: SSD1331
• Interface: SPI
• Display Size: 0.95inch
• Compatible with Raspberry Pi and Arduino

Package List

• 1*0.95 OLED

Wiki & External links

• Datasheet

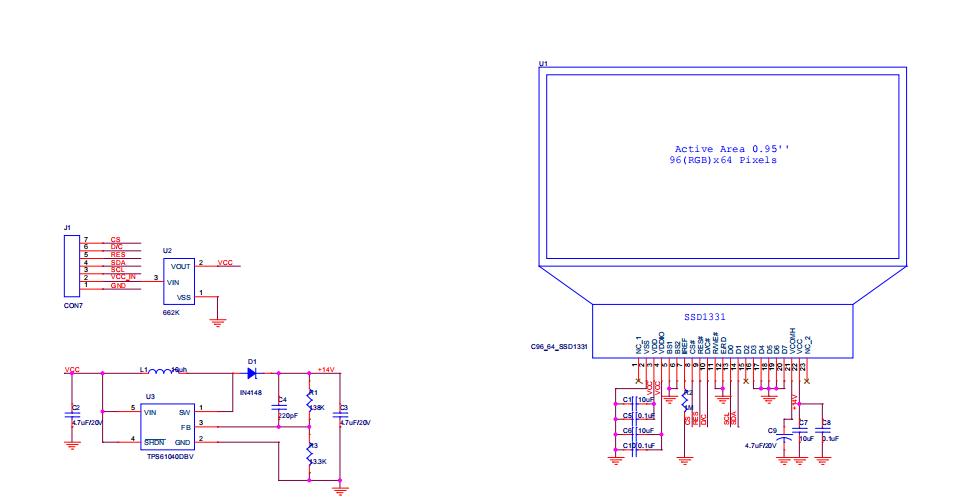

• Schematic
• Post your tech questions in the forum
